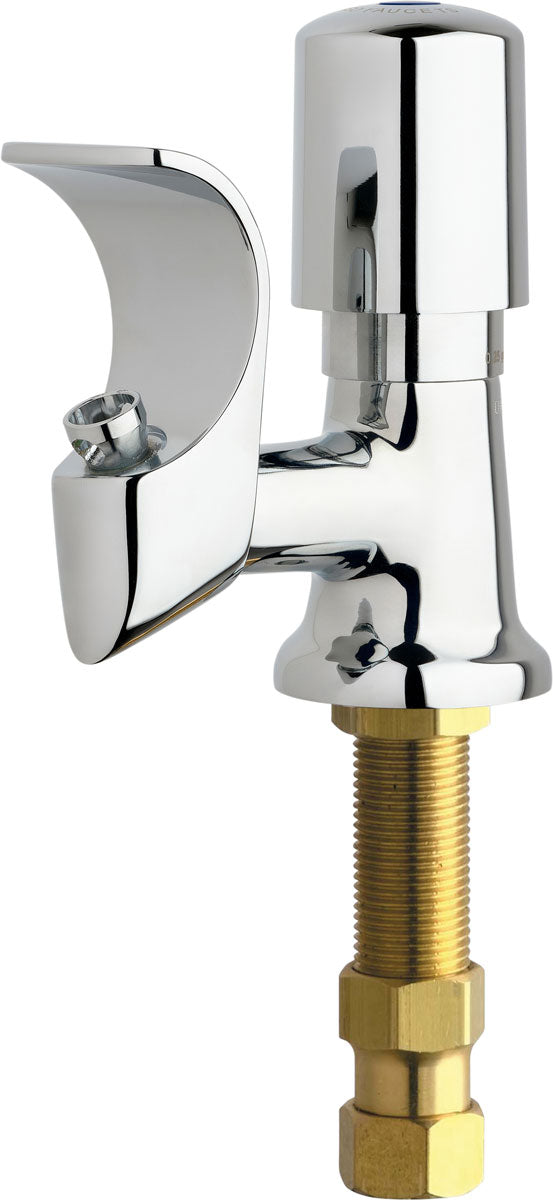

The Chicago Faucets 748-765ABCP is a lead-free drinking fountain / bubbler with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 748-765ABCP, Drinking Fountain, single-hole deck mount, chrome plated. Flow control, .74 GPM (2.8 L/min). 2" metal, vandal-proof, push handle with blue or red index button and silver cap. 1/2" NPSM supply inlet with coupling nut for 3/8" or 1/2" flexible riser. Includes optional, field-installable anti-rotational pins. Recessed, vandal-resistant, manual volume control. All-metal mouth guard. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- .74 GPM (2.8 L/min) flow control
- Metal mouth guard
- Vandal Proof 2" MVP® metering push handle
- MVP® metering cartridge and actuator
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with a metering cartridge.
- Will this fit my existing holes?
- Match the mounting centers first: this model is Single-Hole.
Specifications
- Type: Drinking fountain / bubbler
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Operation: Metering (Self-Closing)
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 748-765ABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
- Lead-Free: Yes
- Centers: Single-Hole
- Handle Index: Hot and Cold
- Cartridge Type: Metering
- Mount Type: Deck-Mount
- Handle Style: Push Button
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 0.74
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 748-765ABCP | 611943189457 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 748 | Device Type | Drinking fountain / bubbler |
| Lead Free | Yes | Body Material | Brass |
| Operation | Metering (Self-Closing) | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Flow rate gpm | 0.74 GPM | Handle style | Push Button |
| Lead time days | 3 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Cartridge type | Metering | Centers | Single-Hole |
| Handle index | Hot and Cold | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| NSF-61 | NSF-372 |
