Specifications
Description

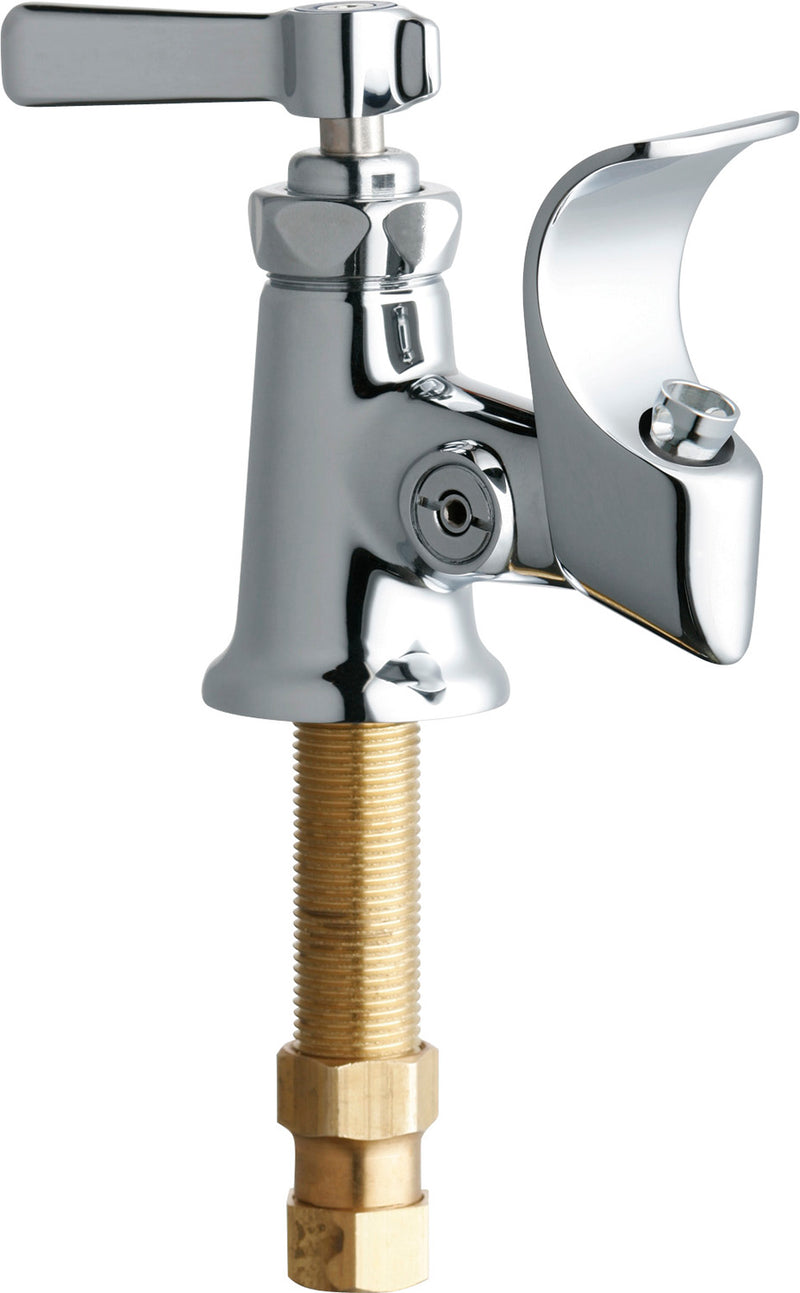

The Chicago Faucets 748-244ABCP is a lead-free drinking fountain / bubbler with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 748-244ABCP, Drinking Fountain, single-hole deck mount, chrome plated. Flow control, .74 GPM (2.8 L/min). 2-3/8" metal, vandal-proof, lever handle with sixteen-point, tapered broach and secured, blue index button. Klo-Self® rebuildable self-closing cartridge, immediate shut-off, opens and closes 90° bi-directional, features square, tapered stem. 1/2" NPSM supply inlet with coupling nut for 3/8" or 1/2" flexible riser. Includes optional, field-installable anti-rotational pins. Recessed, vandal-resistant, manual volume control. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- .74 GPM (2.8 L/min) flow control
- Handle includes red, blue, and white index
- Vandal Proof 2-3/8" Lever handle
- Klo-Self® self-closing cartridge, cam and cap design
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with a metering cartridge.
- Will this fit my existing holes?
- Match the mounting centers first: this model is Single-Hole.
Specifications
- Type: Drinking fountain / bubbler
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Operation: Metering (Self-Closing)
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 748-244ABCP
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1, NSF-61
- Lead-Free: Yes
- Centers: Single-Hole
- Handle Index: Hot and Cold
- Cartridge Type: Metering
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 0.74
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 748-244ABCP | 611943573201 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 748 | Device Type | Drinking fountain / bubbler |
| Lead Free | Yes | Body Material | Brass |
| Operation | Metering (Self-Closing) | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Flow rate gpm | 0.74 GPM | Handle style | Lever |
| Lead time days | 3 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Cartridge type | Metering | Centers | Single-Hole |
| Handle index | Hot and Cold | — | — |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| NSF-61 | — |
Compare with similar products
| Series | 748
| LZWSSM
| EZS8L
| B-2360
| B-2360
|
| Country Of Origin | — | United States
| United States
| — | — |
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| — | — | One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | |||||
| Install Sheet | — | — | — | ||
| Device Type | Drinking fountain / bubbler
| ezH2O Bottle Filling Station Surface Mount Filtered Non-Refrigerated Stainless
| Wall Mount ADA Cooler Non-filtered Refrigerated Light Gray Granite
| — | — |
| Inlet Size | — | — | — | 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| — | — | NPSM
| NPSM
|
| Body Material | Brass
| Stainless Steel
| — | Brass
| Brass
|
| Operation | Metering (Self-Closing)
| Sensor
| Pushbar
| — | — |
| Max Temp °F | 140.0 °F | — | — | 140.0 °F | 140.0 °F |
| Certifications | ADA, ASME A112.18.1/CSA B125.1, NSF-61
| NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
|
| Min Temp °F | 40.0 °F | — | — | 40.0 °F | 40.0 °F |
| Connection Gender | — | — | — | Male
| Male
|
