Specifications
Description

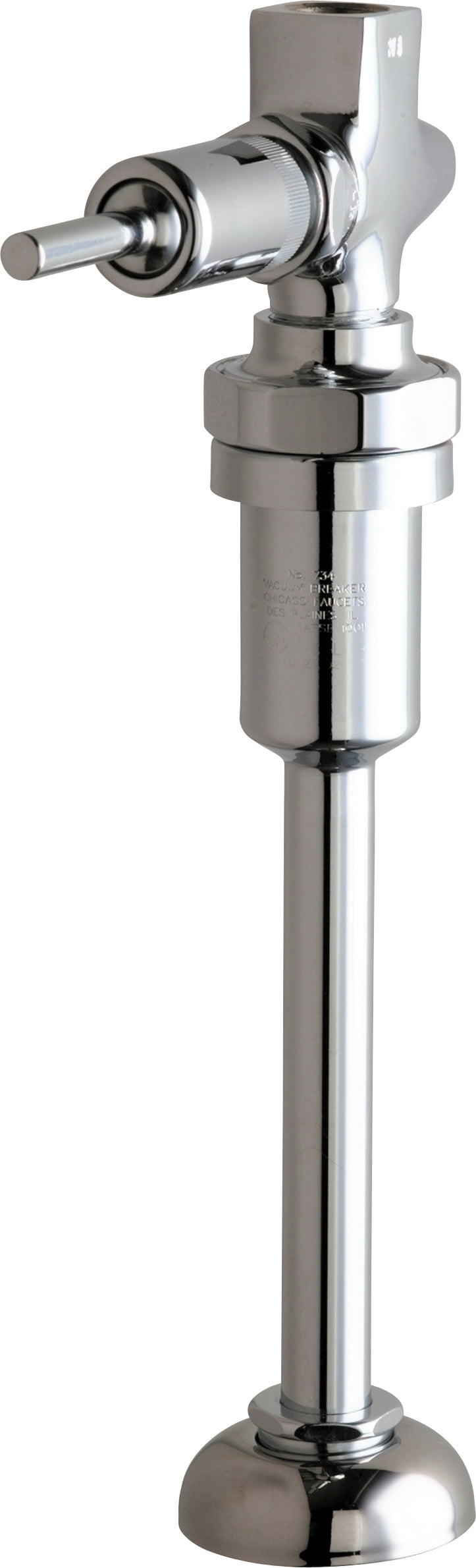

The Chicago Faucets 733-OHVBCP is a vandal-resistant straight urinal valve, actuated by an oscillating handle. It is rated to 40°F to 140°F.
Chicago Faucets No. 733-OHVBCP, Straight Urinal Valve with riser, wall-mounted, chrome plated. 3-1/2" metal, oscillating handle assembly. NAIAD rebuildable auto-timed metering cartridge, opens with push. 1/2" NPT female thread inlet. 3/4" O.D. slip outlet. 3/4" O.D. x 10-1/2" riser. Anti-siphon vacuum breaker. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASSE 1001.
Features
- Vandal Proof 3-1/2" Oscillating handle assembly
- Naiad metering cartridge with adjustable cycle time closure
- Urinal vacuum breaker kit
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 386-010KJKCP
- Includes: 386-XSLOJKNF
- Includes: 734-105KJKNF
Common Questions
- What kind of handle does this have?
- A vandal-resistant oscillating handle -- it rocks in place to actuate the flush rather than a removable or lever-style handle, and cannot be pulled off or forced the way a standard handle can.
- How much water does this use per flush?
- Chicago does not publish a gallons-per-cycle figure for this specific model in the documentation we hold; check the linked spec sheet before specifying it against a water-code maximum.
- Does this include a vacuum breaker?
- Yes -- an integral atmospheric vacuum breaker is built in, and this model is ASSE 1001 certified. Note an atmospheric vacuum breaker is not rated for continuous pressure -- do not install it where the outlet piping can be left under constant pressure.
- Is this vandal-resistant?
- Yes, per Chicago's own vandal-proof handle-assembly listing for this model.
Specifications
- Type: Straight urinal valve
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 733-OHVBCP
- Temperature: 40°F to 140°F
- Certifications: ADA, ASSE-1001
- Actuation: Manual
- Handle Style: Oscillating Handle
- Backflow Device: Atmospheric Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Body Pattern: Straight
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 733-OHVBCP | 611943147853 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Details
| Series | 733 | Device Type | Straight urinal valve |
| Operation | Manual | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | 386-010KJKCP, 386-XSLOJKNF, 734-105KJKNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Body pattern | Straight |
| Coating | Polished Chrome | Handle style | Oscillating Handle |
| Lead time days | 3 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
Certifications & Standards
| ADA | ASSE-1001 |
