Specifications
Description

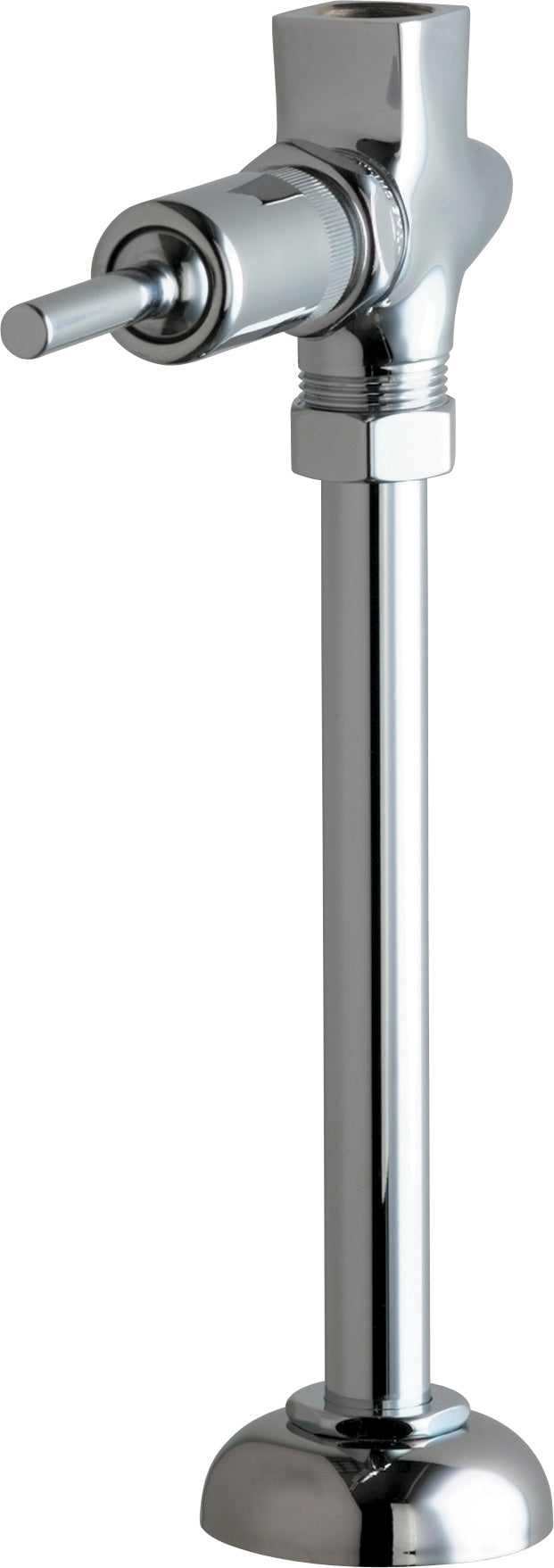

The Chicago Faucets 733-OHCP is a vandal-resistant straight urinal valve, actuated by an oscillating handle. It is rated to 40°F to 140°F.
Chicago Faucets No. 733-OHCP, Straight Urinal Valve with riser, wall-mounted, chrome plated. 3-1/2" metal, oscillating handle assembly. NAIAD rebuildable auto-timed metering cartridge, opens with push. 1/2" NPT female thread inlet. 3/4" O.D. slip outlet. 3/4" O.D. x 8-1/2" riser.
Features
- Vandal Proof 3-1/2" Oscillating handle assembly
- Naiad metering cartridge with adjustable cycle time closure
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
- Includes: 386-010KJKCP
- Includes: 386-XSLOJKNF
Common Questions
- What kind of handle does this have?
- A vandal-resistant oscillating handle -- it rocks in place to actuate the flush rather than a removable or lever-style handle, and cannot be pulled off or forced the way a standard handle can.
- How much water does this use per flush?
- Chicago does not publish a gallons-per-cycle figure for this specific model in the documentation we hold; check the linked spec sheet before specifying it against a water-code maximum.
- Does this include a vacuum breaker?
- No, not this model. Chicago sells this same body style with an integral vacuum breaker under the "-VB" part number if your installation requires one.
- Is this vandal-resistant?
- Yes, per Chicago's own vandal-proof handle-assembly listing for this model.
Specifications
- Type: Straight urinal valve
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 733-OHCP
- Temperature: 40°F to 140°F
- Certifications: ADA
- Actuation: Manual
- Handle Style: Oscillating Handle
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Body Pattern: Straight
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 733-OHCP | 611943147846 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Details
| Series | 733 | Device Type | Straight urinal valve |
| Operation | Manual | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | 386-010KJKCP, 386-XSLOJKNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Body pattern | Straight | Coating | Polished Chrome |
| Handle style | Oscillating Handle | Lead time days | 3 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Quick ship | Yes |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| ADA | — |
