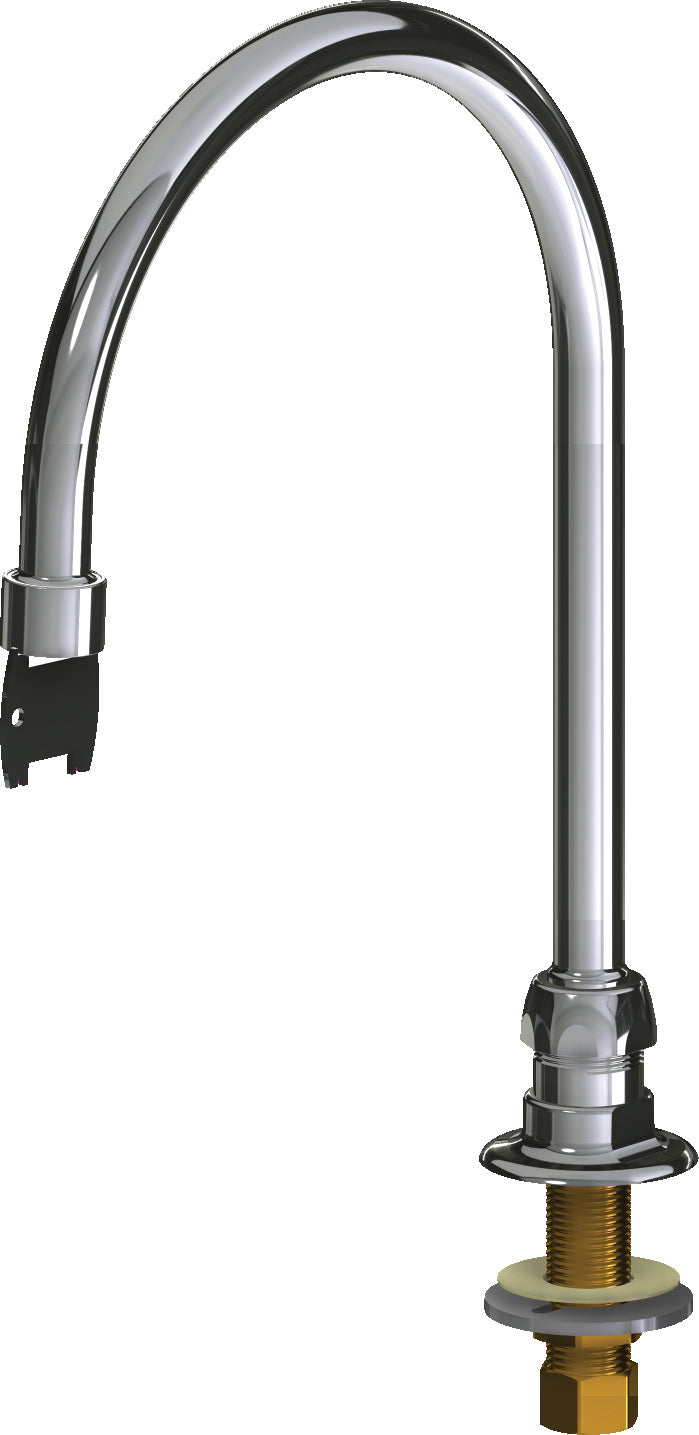

Chicago Faucets 626-GN8AE36VPABCP Lead-Free Remote Spout, Deck-Mount

The Chicago Faucets 626-GN8AE36VPABCP is a 1/2" lead-free remote spout with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 626-GN8AE36VPABCP, Remote Rigid/Swing Gooseneck Spout, vandal-proof, chrome plated, 8" center-to-center. 1.5 GPM (5.7 L/min) pressure compensating, vandal-proof, laminar outlet. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.

Features

• 8" Rigid/swing gooseneck spout
• Vandal Proof Pressure compensating laminar flow non-aerating outlet, 1.5 GPM
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.
• Includes: GN8AJKABCP
• Includes: E36VPJKABCP

Common Questions

Is this vandal resistant?

Yes -- Chicago states this model is vandal-proof/vandal-resistant, meaning the index button is secured and the handle resists unauthorized removal. Common in teaching labs and other student/public-accessible spaces.

Specifications

• Type: Deck-mounted remote spout
• Size: 1/2"
• Connection: NPSM
• Body Material: Brass
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 626-GN8AE36VPABCP
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, Buy American Act, CALGreen, NSF-372, NSF-61, WaterSense
• Lead-Free: Yes
• Mount Type: Deck-Mount
• Outlet Type: Laminar (Non-Aerating)
• Spout Type: Gooseneck
• Spout Reach (in): 8.0
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
