Specifications
Description

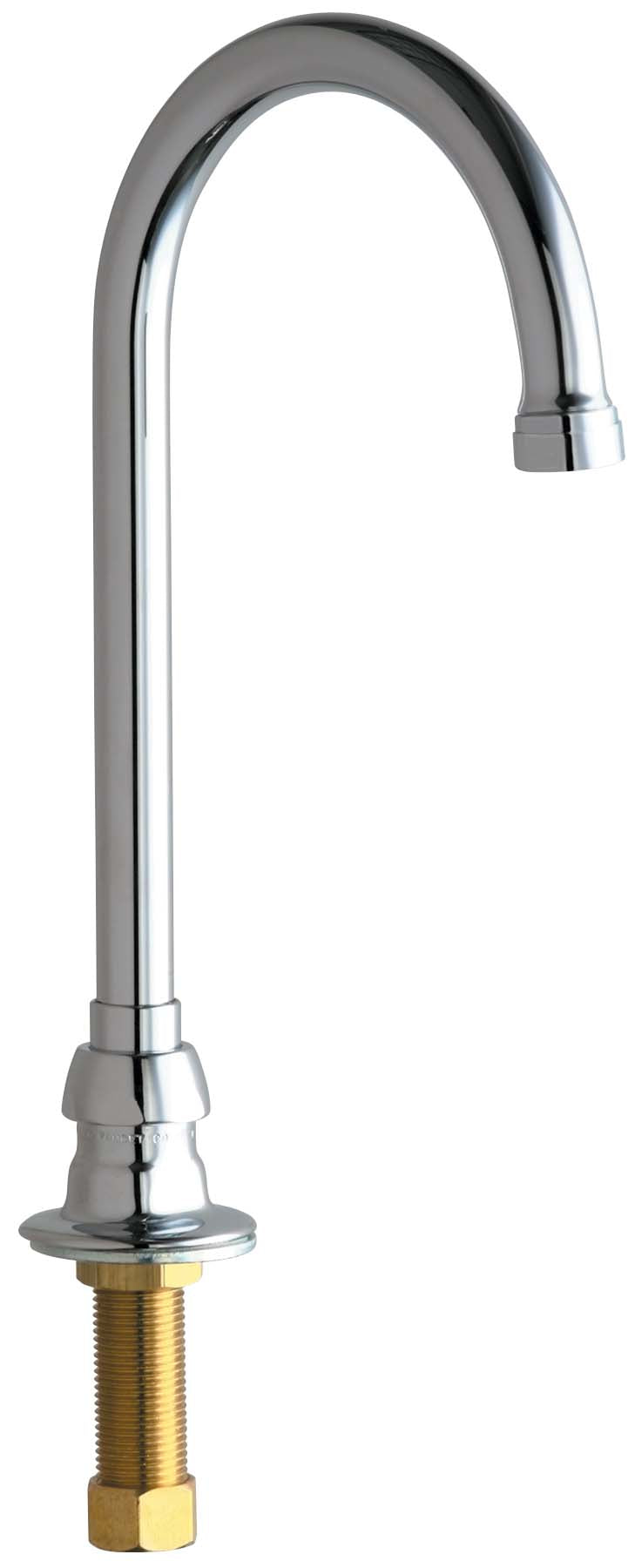

The Chicago Faucets 626-E29VPABCP is a 1/2" lead-free remote spout with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 626-E29VPABCP, Remote Rigid/Swing Gooseneck Spout, vandal-proof, chrome plated, 5-1/4" center-to-center. 2.2 GPM (8.3 L/min) vandal-proof, pressure compensating, non-aerating, laminar flow outlet. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- 5-1/4" Rigid/swing gooseneck spout
- Vandal Proof Pressure compensating laminar flow non-aerating outlet, 2.2 GPM
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2AJKABCP
- Includes: E29VPJKABCP
Common Questions
- Is this vandal resistant?
- Yes -- Chicago states this model is vandal-proof/vandal-resistant, meaning the index button is secured and the handle resists unauthorized removal. Common in teaching labs and other student/public-accessible spaces.
Specifications
- Type: Deck-mounted remote spout
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 626-E29VPABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, Buy American Act, NSF-372, NSF-61
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Outlet Type: Laminar (Non-Aerating)
- Spout Type: Gooseneck
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.2
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 626-E29VPABCP | 611943465438 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 626 | Device Type | Deck-mounted remote spout |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Options | GN2AJKABCP, E29VPJKABCP | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Flow rate gpm | 2.2 GPM | Lead time days | 5 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Vandal resistant | Yes |
| Outlet type | Laminar (Non-Aerating) | Spout type | Gooseneck |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-372 |
| NSF-61 | — |
