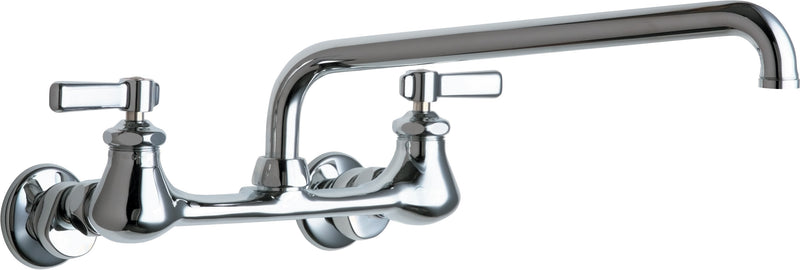

The Chicago Faucets 540-LDL12HFAB is a lead-free wall-mounted manual faucet with 8" centers. It features a brass body. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 540-LDL12HFAB, Sink Faucet for hot and cold water, wall-mounted with 8" centers. Chrome plated. L-Type swing spout, 12" center-to-center. Full-flow end ring on spout. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 3/4" NPT female thread inlets. 2-5/16" diameter slip flange. Mounting hardware included. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- Handles include color-coded index
- 12" L-type swing spout
- Spout end ring
- Vandal Proof 2-3/8" Lever handle (pair)
- Quaturn® compression operating cartridge, right-hand
- Quaturn® compression operating cartridge, left-hand
- Straight 3/4" inlet supply arm with 3/4" NPT female thread inlet
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with a l-type spout, 2 handles, a quaturn compression cartridge.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Wall-mounted manual faucet with 8" centers
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 540-LDL12HFAB
- Certifications: ADA, ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
- Lead-Free: Yes
- Centers: 8"
- Spout Type: L-Type
- Spout Motion: Swing
- Spout Reach (in): 12.0
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Quaturn Compression
- Mount Type: Wall-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Lead Time (days): 5
Product Information
Details
| Series | 540 | Device Type | Wall-mounted manual faucet with 8" centers |
| Lead Free | Yes | Body Material | Brass |
| Pack Qty | 1 | Baa | USA |
| Coating | Polished Chrome | Handle style | Lever |
| Lead time days | 5 | Mount type | Wall-Mount |
| Prop65 | Yes | Vandal resistant | Yes |
| Cartridge type | Quaturn Compression | Centers | 8" |
| Handle count | 2 | Handle index | Hot and Cold |
| Spout motion | Swing | Spout reach in | 12.0 |
| Spout type | L-Type | — | — |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| NSF-372 | NSF-61 |
