Description

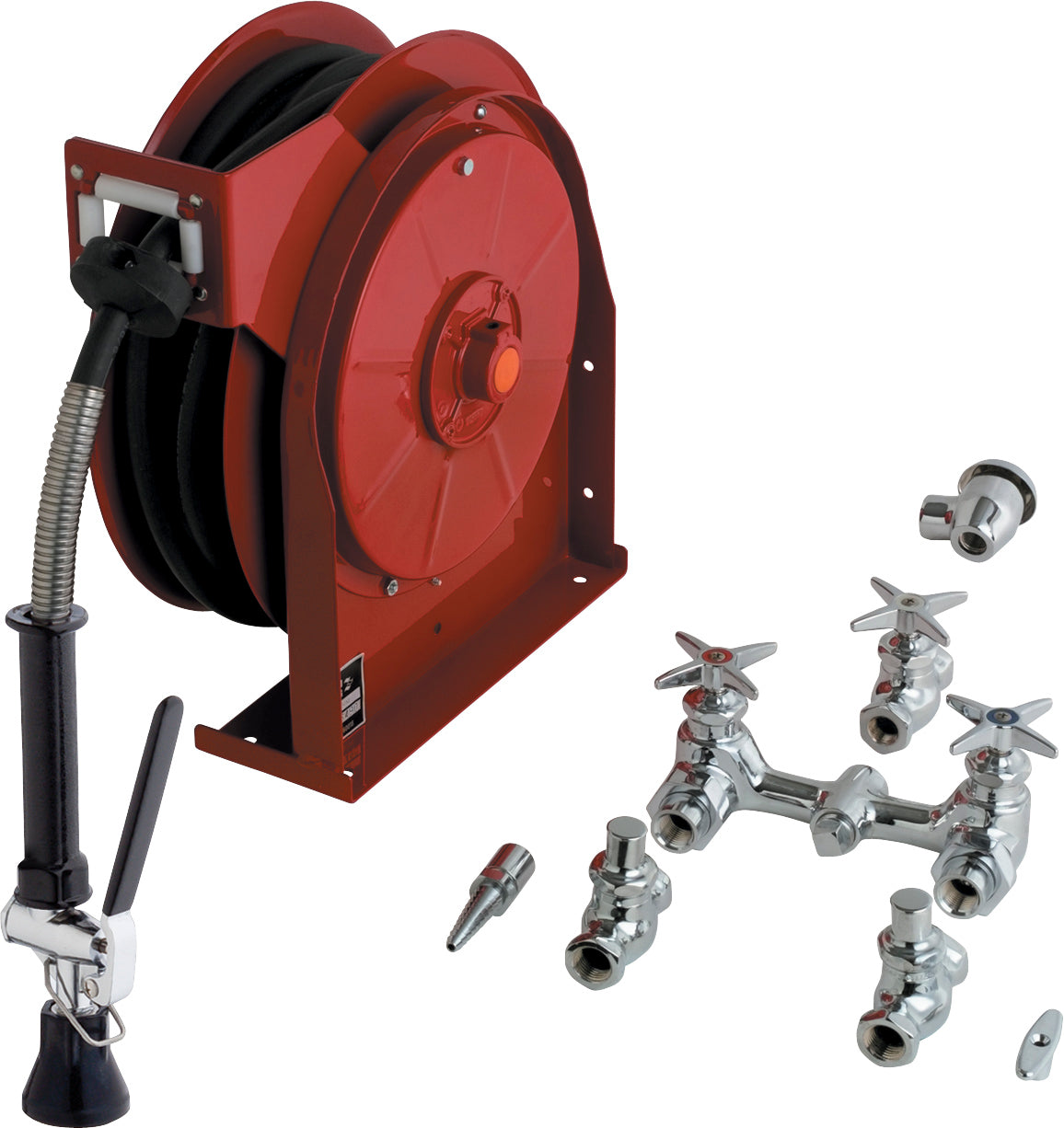

The Chicago Faucets 535-NF is a washdown hose reel with NPT connections. It is rated to 40°F to 140°F.
Chicago Faucets No. 535-NF, Hose Reel Assembly with hot and cold water fitting, wall-mounted with 6" centers. Spray valve 2.5 GPM @ 60 PSI. 3" metal cross handles with eight-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 1/2" NPT female thread inlets. Retractable rubber hose, 35 ft. x 3/8" I.D. Includes exposed two-valve fitting, shut-off valve, and straight stop valves.
Features
- Handles include color-coded index
- Hose reel spray valve, 2.5 GPM
- Vandal Proof 3" Cross handle (pair)
- Slow compression operating cartridge, left-hand
- Quaturn® compression operating cartridge, left-hand
- Slow compression cartridge, integral check
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a quaturn compression cartridge.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 6".
Specifications
- Type: Washdown hose reel
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 535-NF
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Centers: 6"
- Body Style: Exposed
- Spout Reach (in): 6.0
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Quaturn Compression
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Unfinished (Rough Brass)
- Flow Rate (GPM): 2.5
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 535-NF | 611943135409 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 535 | Device Type | Washdown hose reel |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Unfinished (Rough Brass) | Flow rate gpm | 2.5 GPM |
| Handle style | Cross | Lead time days | 5 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Vandal resistant | Yes |
| Body style | Exposed | Cartridge type | Quaturn Compression |
| Centers | 6" | Handle count | 2 |
| Handle index | Hot and Cold | Spout reach in | 6.0 |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
