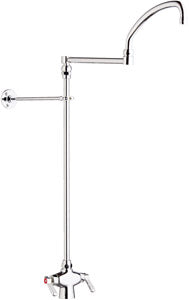

The Chicago Faucets 511-ABCP is a lead-free single-hole deck-mounted pot and kettle filler with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 511-ABCP, Pot and Kettle Filler Faucet for hot and cold water, single-hole deck mount, chrome plated. Double-jointed swing spout, 21" center-to-center. Full-flow Quixtop outlet with single-screen design. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 3-1/2" inlet connection tee with 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. 23" riser. pipe strap. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- Includes pipe strap; handle with red, blue, and white index
- Single-hole
- 21-1/4" Double-jointed swing spout
- Quixtop™ outlet with single screen design, full flow (female)
- Vandal Proof 2-3/8" Lever handle (pair)
- Quaturn® compression operating cartridge, right-hand
- Quaturn® compression operating cartridge, left-hand
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a quaturn compression cartridge, a full flow outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is Single-Hole.
Specifications
- Type: Single-hole deck-mounted pot and kettle filler
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 511-ABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-372, NSF-61
- Lead-Free: Yes
- Centers: Single-Hole
- Spout Motion: Swing
- Spout Reach (in): 21.0
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Quaturn Compression
- Outlet Type: Full Flow
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 511-ABCP | 611943548940 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 511 | Device Type | Single-hole deck-mounted pot and kettle filler |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Handle style | Lever |
| Lead time days | 5 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Vandal resistant | Yes | Cartridge type | Quaturn Compression |
| Centers | Single-Hole | Handle count | 2 |
| Handle index | Hot and Cold | Outlet type | Full Flow |
| Spout motion | Swing | Spout reach in | 21.0 |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| NSF-372 | NSF-61 |
