Specifications
Description

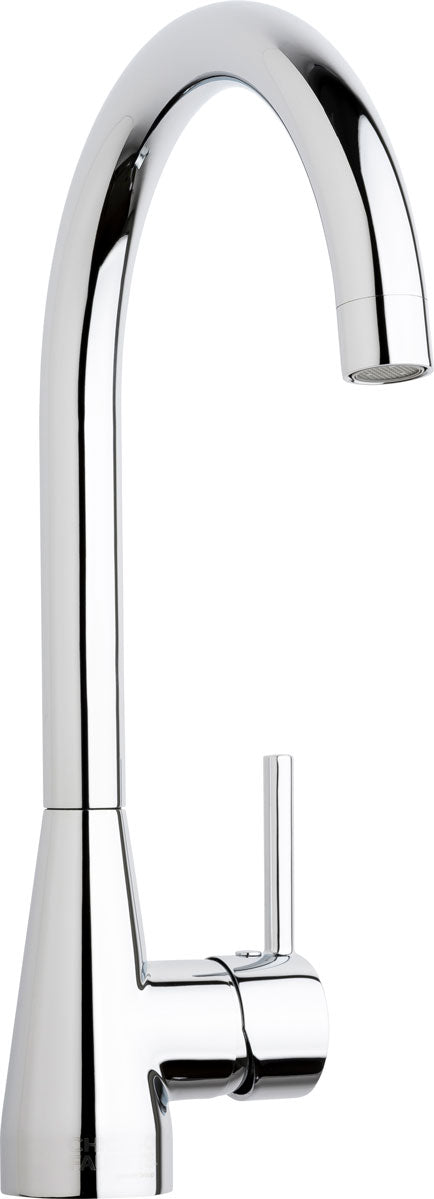

The Chicago Faucets 436-ABCP is a deck-mounted kitchen faucet, single-hole mount, high arc faucet. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. 436-ABCP, Sink Faucet for hot and cold water, single lever, deck-mounted with single hole mounting, chrome plated. Integral, tubular SUS 304 stainless steel spout. 1.5 GPM (5.7 L/min) laminar flow outlet. Flexible supply hoses included. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: Certified to NSF/ANSI 61, Section 9, and California Green Building Standards Code (CALGreen).
Features
- User adjustable temperature control mixer
- 1.5 GPM (5.7 L/min) laminar flow outlet
- Single-hole
- Laminar flow outlet for 436 Series faucet, 1.5 GPM
- Ceramic operating cartridge with volume control and hot water limit stop
Common Questions
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- What does it include?
- It ships with 1 handle, a laminar (non-aerating) outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is Single-Hole.
Specifications
- Type: Deck-mounted kitchen faucet, single-hole mount, high arc faucet
- Body Material: Brass
- Pack Quantity: 1
- Warranty: 1-year finish; 5-year cartridge; 5-year faucet
- MPN: 436-ABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-61
- Centers: Single-Hole
- Number of Handles: 1
- Outlet Type: Laminar (Non-Aerating)
- Mixing Valve: Mechanical Mixing Valve
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Details
| Series | 436 | Device Type | Deck-mounted kitchen faucet, single-hole mount, high arc faucet |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Min Temp °F | 40.0 °F |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Handle style | Lever | Lead time days | 3 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Quick ship | Yes |
| Centers | Single-Hole | Handle count | 1 |
| Mixing valve | Mechanical Mixing Valve | Outlet type | Laminar (Non-Aerating) |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| NSF-61 | — |
