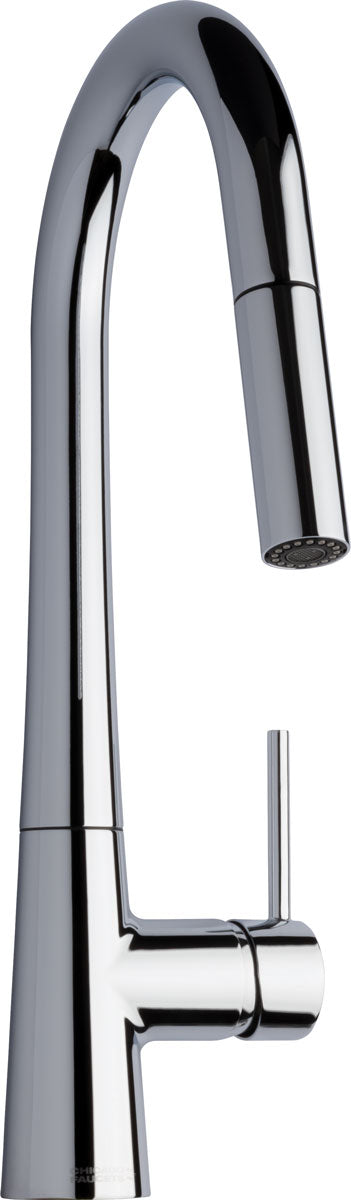

Chicago Faucets 434-FC1ABCP Lead-Free Deck-mounted kitchen faucet with pull-down spout, single-hole mount

The Chicago Faucets 434-FC1ABCP is a lead-free deck-mounted kitchen faucet with pull-down spout, single-hole mount with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 434-FC1ABCP, Sink Faucet for hot and cold water, single lever, deck-mounted with single hole mounting and pull down side spray, chrome plated. Integral, tubular brass spout. Dual-pattern 1.0 GPM (3.8 L/min) outlet. 1/2" NPSM supply inlets for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: Certified to NSF/ANSI 61, Section 9, and California Green Building Standards Code (CALGreen).

Features

• User adjustable temperature control mixer
• 9" center-to-center tubular brass spout with dual-pattern pull- down outlet
• Single-hole
• Dual-pattern outlet for 434 Series faucet, 1.0 GPM
• Ceramic operating cartridge with volume control and hot water limit stop
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average

Common Questions

Is this safe for drinking water?

Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.

Is this ADA compliant?

Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.

What does it include?

It ships with a pull-down spout, 1 handle.

Will this fit my existing holes?

Match the mounting centers first: this model is Single-Hole.

Specifications

• Type: Deck-mounted kitchen faucet with pull-down spout, single-hole mount
• Size: 1/2"
• Connection: NPSM
• Body Material: Brass
• Pack Quantity: 1
• Warranty: 1-year finish; 5-year cartridge; 5-year faucet
• MPN: 434-FC1ABCP
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-61
• Lead-Free: Yes
• Centers: Single-Hole
• Spout Type: Pull-Down
• Spout Reach (in): 9.0
• Number of Handles: 1
• Mixing Valve: Mechanical Mixing Valve
• Mount Type: Deck-Mount
• Handle Style: Lever
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.0
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
