Similar products
Specifications
Description

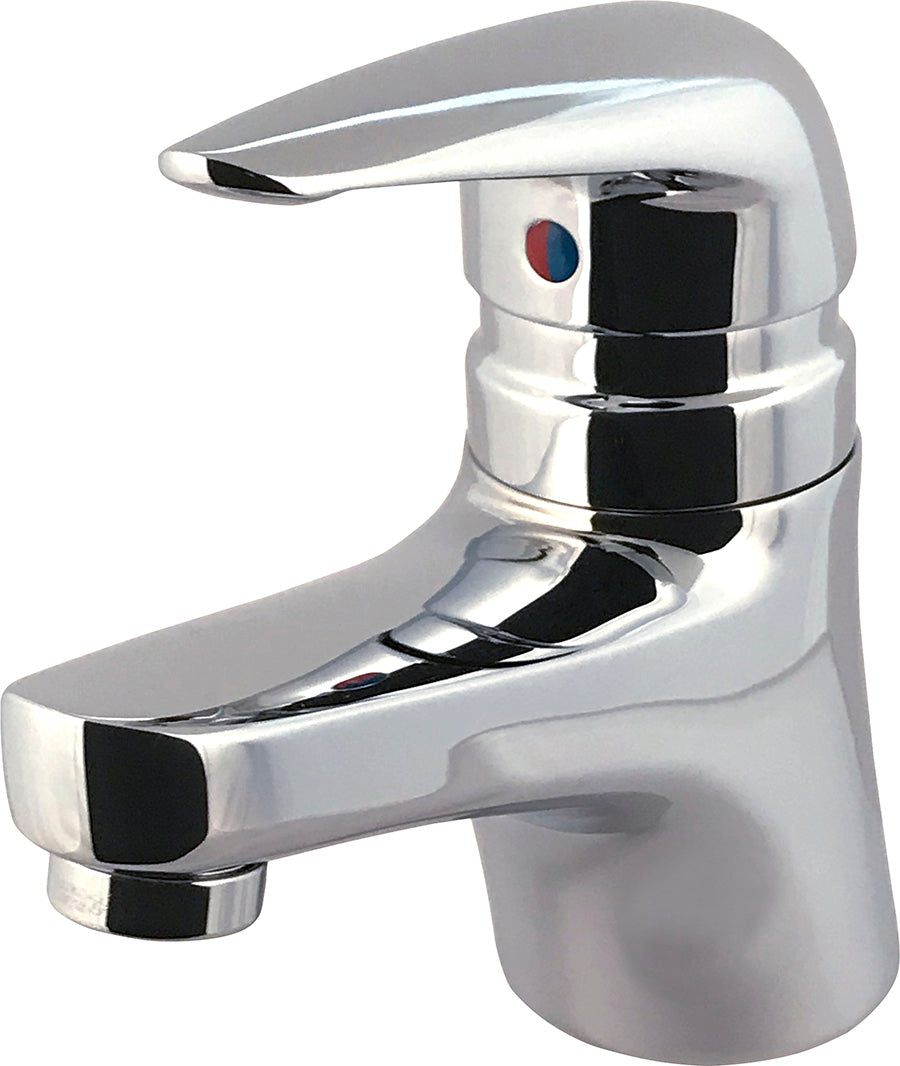

The Chicago Faucets 410-E2805ABCP is a lead-free deck-mounted manual faucet, single-hole mounting with optional 4" and 8" cover plates with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 410-E2805ABCP, Sink Faucet for hot and cold water, single-hole deck mount, single lever, chrome plated. Rigid, cast brass spout, 4-1/2" center-to-center. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, non-aerating, laminar spray outlet. Flexible supply hoses included. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- Single-hole
- Vandal Proof Pressure compensating Econo-Flo™ non-aerating laminar spray, 0.5 GPM
- Vandal Proof 4-1/4" Lever handle
- Ceramic operating cartridge with volume control and hot water limit stop
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 1 handle, a laminar (non-aerating) outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is Single-Hole.
Specifications
- Type: Deck-mounted manual faucet, single-hole mounting with optional 4" and 8" cover plates
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year material; 5-year cartridge
- MPN: 410-E2805ABCP
- Temperature: 40°F to 140°F
- Certifications: ADA, NSF-61
- Lead-Free: Yes
- Centers: Single-Hole
- Spout Motion: Rigid
- Number of Handles: 1
- Outlet Type: Laminar (Non-Aerating)
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 0.5
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 410 | Device Type | Deck-mounted manual faucet, single-hole mounting with optional 4" and 8" cover plates |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Coating | Polished Chrome |
| Flow rate gpm | 0.5 GPM | Handle style | Lever |
| Lead time days | 3 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Centers | Single-Hole | Handle count | 1 |
| Outlet type | Laminar (Non-Aerating) | Pressure compensating | Yes |
| Spout motion | Rigid | — | — |
Certifications & Standards
| ADA | NSF-61 |
Compare with similar products
| Series | 410
| 434
| 50
| 2304
|
| Warranty | Lifetime faucet; 1-year material; 5-year cartridge
| 1-year finish; 5-year cartridge; 5-year faucet
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||
| Install Sheet | — | |||
| Device Type | Deck-mounted manual faucet, single-hole mounting with optional 4" and 8" cover plates
| Deck-mounted high arc kitchen faucet with pull-down spout, single- hole mount
| Deck-mounted manual faucet, single-hole mounting
| Deck-mounted manual faucet, three-hole mounting
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 3/8"
|
| Lead Free | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| NPSM
| NPSM
| Compression
|
| Body Material | Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ADA, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
