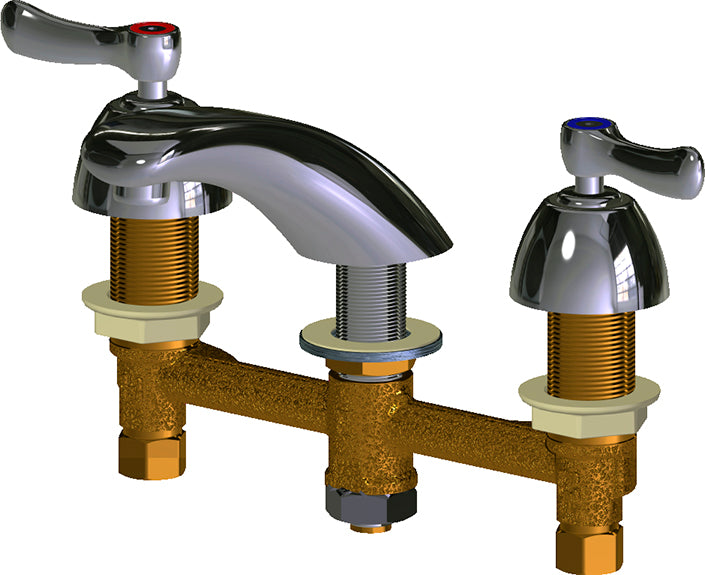

Chicago Faucets 404-E70ABCP Lead-Free Deck-mounted manual faucet with 8" centers, Brass, NPSM

The Chicago Faucets 404-E70ABCP is a lead-free deck-mounted manual faucet with 8" centers with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 404-E70ABCP, Sink Faucet for hot and cold water, concealed deck-mount with 8" fixed centers, chrome plated. Rigid, cast brass spout, 5" center-to-center. 0.5 GPM (14.9 L/min) laminar flow non-aerating outlet. 2-3/8" metal, vandal-proof, lever handles with eight-point, tapered broach and blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.

Features

• 8" fixed centers
• Pressure compensating non-aerating laminar flow outlet, 0.5 GPM
• Vandal Proof 2-3/8" Lever handle (pair)
• Quaturn® compression operating cartridge, left-hand
• Quaturn® compression operating cartridge, right-hand
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.

Common Questions

Is this safe for drinking water?

Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.

Is this ADA compliant?

Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with 2 handles, a quaturn compression cartridge, a laminar (non-aerating) outlet.

Will this fit my existing holes?

Match the mounting centers first: this model is 8".

Specifications

• Type: Deck-mounted manual faucet with 8" centers
• Size: 1/2"
• Connection: NPSM
• Body Material: Brass
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 404-E70ABCP
• Temperature: 40°F to 140°F
• Certifications: ADA, ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
• Lead-Free: Yes
• Centers: 8"
• Body Style: Concealed
• Spout Motion: Rigid
• Spout Reach (in): 5.0
• Number of Handles: 2
• Handle Index: Hot and Cold
• Cartridge Type: Quaturn Compression
• Outlet Type: Laminar (Non-Aerating)
• Pressure Compensating: Yes
• Mount Type: Deck-Mount
• Handle Style: Lever
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 0.5
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
