Specifications
Description

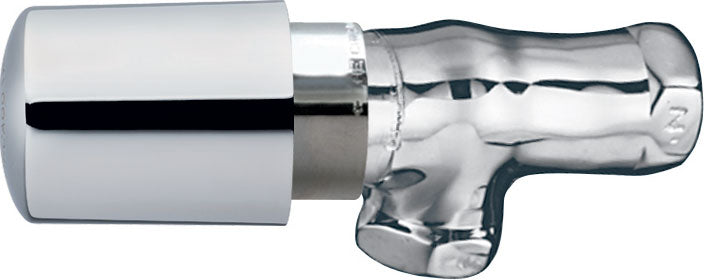

The Chicago Faucets 389-765PSHCP is a vandal-resistant angle urinal valve, actuated by a push button. It delivers 0.25 gal per flush. It is rated to 40°F to 140°F.
Chicago Faucets No. 389-765PSHCP, Urinal Valve, angled, wall-mounted, chrome plated. 2" metal, vandal-proof, push handle with blue or red index button and silver cap. MVP® self-closing, auto-timed metering cartridge, opens with push. 1/2" NPT female thread inlet. 1/2" NPT female thread outlet.
Features
- Flange not included
- Vandal Proof 2" MVP® metering push handle
- MVP® metering cartridge and actuator
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 765-PSHJKCP
- Includes: 667-780KJKABNF
Common Questions
- What kind of handle does this have?
- A metering push handle -- press it to start the flush cycle; the MVP® cartridge closes automatically on its own timer.
- How much water does this use per flush?
- 0.25 gallons per cycle, maximum.
- Does this include a vacuum breaker?
- No, not this model. Chicago sells this same body style with an integral vacuum breaker under the "-VB" part number if your installation requires one.
- Is this vandal-resistant?
- Yes, per Chicago's own vandal-proof handle-assembly listing for this model.
Specifications
- Type: Angled urinal valve
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 389-765PSHCP
- Temperature: 40°F to 140°F
- Certifications: ADA
- Actuation: Manual
- Handle Style: Push Button
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Body Pattern: Angle
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 389-765PSHCP | 611943190217 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Details
| Series | 389 | Device Type | Angled urinal valve |
| Operation | Manual | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | 765-PSHJKCP, 667-780KJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Body pattern | Angle | Coating | Polished Chrome |
| Handle style | Push Button | Lead time days | 3 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Quick ship | Yes |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| ADA | — |
