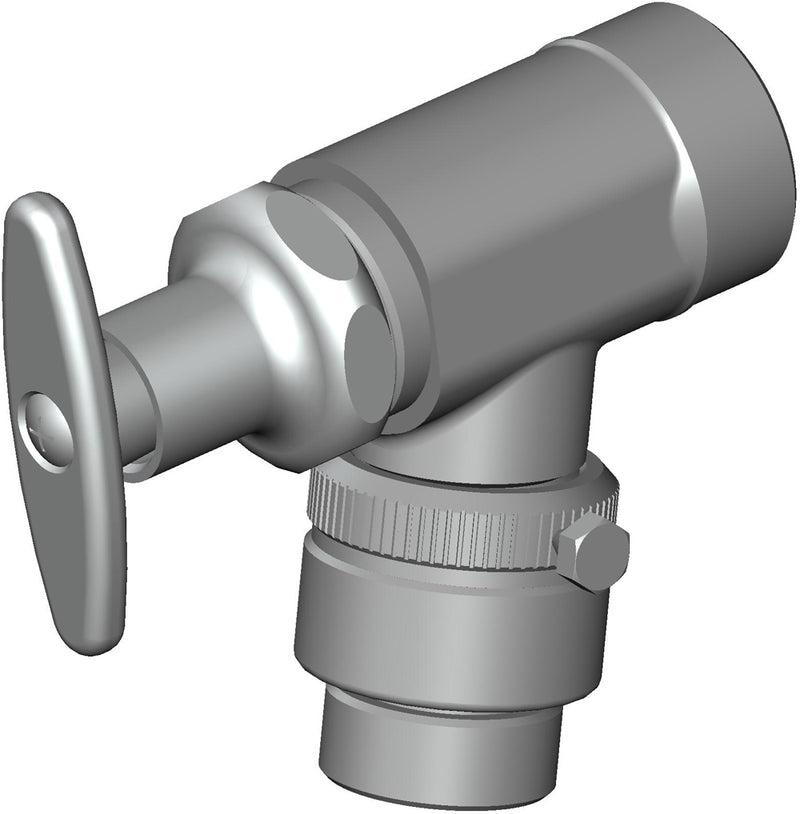

Chicago Faucets 387-LEFE27 Inside sill fitting

The Chicago Faucets 387-LEFE27 is a inside sill fitting. It is rated to 40°F to 140°F.

Chicago Faucets No. 387-LEFE27, Inside Sill Fitting, wall-mounted, chrome plated. Full-flow, in-line vacuum breaker with hose thread outlet. 2-1/4" metal tee handle with square, tapered broach. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 3/4" NPT female thread inlet. Wall flange not included. Hose connection vacuum breakers specially made to permit the attachment of portable hoses to hose thread faucets. Designed to prevent the flow of contaminated water back into the potable water supply, these devices require no plumbing changes, and screw directly onto a sill cock. NOTE: not intended for continuous pressure applications. Mounting hardware included.

Features

• Full-flow hose thread outlet with inline vacuum breaker
• Vandal Proof 2-1/4" Tee handle
• Slow compression operating cartridge, left-hand
• Complies with the requirements of the Buy American Act of 1933.

Common Questions

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with a slow compression cartridge, a hose thread outlet.

Specifications

• Type: Inside sill fitting
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 387-LEFE27
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Cartridge Type: Slow Compression
• Outlet Type: Hose Thread
• Mount Type: Wall-Mount
• Handle Style: Tee
• Coating / Finish: Polished Chrome
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Backflow Device: In-Line Vacuum Breaker (Dual Check)
• Lead Time (days): 5
