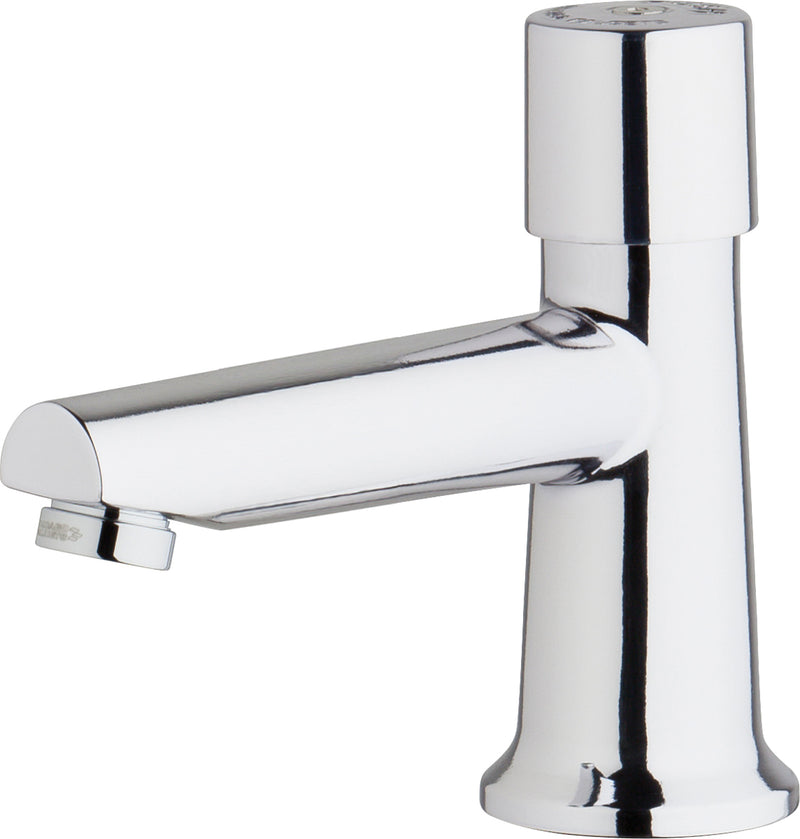

Chicago Faucets 3520-E280530ABCP Lead-Free Deck-mounted metering faucet, single-hole mounting

The Chicago Faucets 3520-E280530ABCP is a lead-free deck-mounted metering faucet, single-hole mounting. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 3520-E280530ABCP, Sink Faucet, metering, single-hole deck mount, chrome plated. Integral, cast brass spout, 6" center-to-center. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo, non-aerating spray. MVP® self-closing, auto-timed metering cartridge, adjustable run time from 2 to 30 seconds, opens with push, 0.20 max gallon/cycle. Single supply for tempered water. Flexible supply hose included. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).

Features

• Single-hole
• Vandal Proof Pressure compensating Econo-Flo™ non-aerating laminar spray, 0.5 GPM
• Vandal Proof 1-5/8" MVP® metering push handle
• Actuator assembly
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average

Common Questions

Is this safe for drinking water?

Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.

Is this ADA compliant?

Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.

Does it meet water-conservation codes?

Yes, it is certified to CALGreen.

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with a metering cartridge, a laminar (non-aerating) outlet.

Specifications

• Type: Deck-mounted metering faucet, single-hole mounting
• Body Material: Brass
• Operation: Metering (Self-Closing)
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 3520-E280530ABCP
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-61, NSF-372
• Lead-Free: Yes
• Centers: Single-Hole
• Spout Reach (in): 6.0
• Cartridge Type: Metering
• Outlet Type: Laminar (Non-Aerating)
• Pressure Compensating: Yes
• Mount Type: Deck-Mount
• Handle Style: Push Button
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 0.5
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
