Description

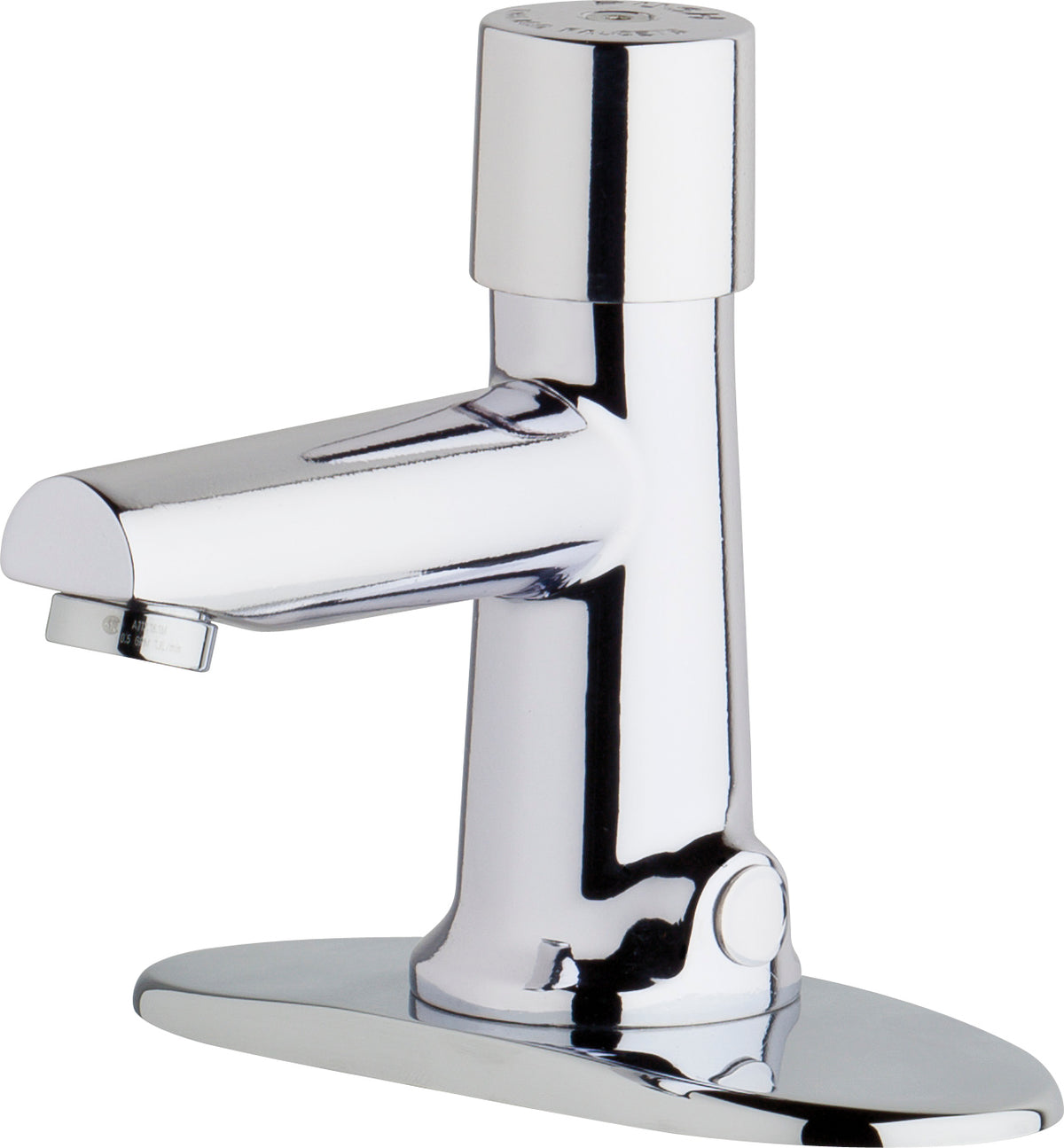

The Chicago Faucets 3501-4E39VPABCP is a lead-free deck-mounted metering faucet with 4" centers. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 3501-4E39VPABCP, Sink Faucet for hot and cold water, metering, deck-mounted with 4" fixed centers, chrome plated. Integral, cast brass spout, 4" center-to-center. 0.35 GPM (1.3 L/min) vandal-proof, pressure compensating, Econo-Flo, non- aerating spray. MVP® self-closing, auto-timed metering cartridge, adjustable run time from 2 to 25 seconds, opens with push, 0.20 max gallon/cycle. Dual supply for hot and cold water service. Flexible supply hoses included. Concealed, internal temperature control mixer with hot water adjustment limit stop. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- 4" fixed centers
- Vandal Proof Pressure compensating Econo-Flo™ non-aerating outlet, 0.35 GPM
- Vandal Proof 1-5/8" MVP® metering push handle
- Actuator assembly
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Does it meet water-conservation codes?
- Yes, it is certified to CALGreen.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with a metering cartridge, a spray (non-aerating) outlet.
Specifications
- Type: Deck-mounted metering faucet with 4" centers
- Body Material: Brass
- Operation: Metering (Self-Closing)
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 3501-4E39VPABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
- Lead-Free: Yes
- Centers: 4"
- Body Style: Concealed
- Spout Reach (in): 4.0
- Cartridge Type: Metering
- Outlet Type: Spray (Non-Aerating)
- Pressure Compensating: Yes
- Mixing Valve: Mechanical Mixing Valve
- Mount Type: Deck-Mount
- Handle Style: Push Button
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 0.35
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 3501-4E39VPABCP | 611943127558 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Details
| Series | 3501 | Device Type | Deck-mounted metering faucet with 4" centers |
| Lead Free | Yes | Body Material | Brass |
| Operation | Metering (Self-Closing) | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Flow rate gpm | 0.35 GPM | Handle style | Push Button |
| Lead time days | 5 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Vandal resistant | Yes | Body style | Concealed |
| Cartridge type | Metering | Centers | 4" |
| Mixing valve | Mechanical Mixing Valve | Outlet type | Spray (Non-Aerating) |
| Pressure compensating | Yes | Spout reach in | 4.0 |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| CALGreen | NSF-372 |
| NSF-61 | — |
Compare with similar products
| Series | 3501
| 802
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||
| Device Type | Deck-mounted metering faucet with 4" centers
| Deck-mounted metering faucet with 4" centers
|
| Lead Free | Yes | Yes |
| Body Material | Brass
| Brass
|
| Operation | Metering (Self-Closing)
| Metering (Self-Closing)
|
| Max Temp °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
|
| Pack Qty | 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F |
