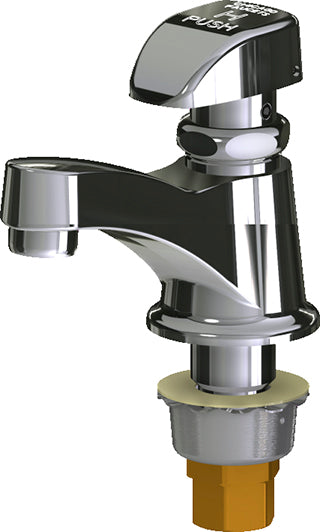

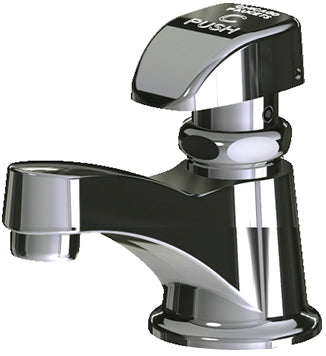

Chicago Faucets 335-E12HOTABCP Lead-Free Deck-mounted metering faucet, single-hole, single-supply

The Chicago Faucets 335-E12HOTABCP is a lead-free deck-mounted metering faucet, single-hole, single-supply with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 335-E12HOTABCP, Sink Faucet, metering, single-hole deck mount, chrome plated. Integral, cast brass spout, 3-3/8" center-to-center. 2.2 GPM (8.3 L/min) pressure compensating Softflo® aerator. 1-1/2" metal, vandal-proof, push-tilt handle with twenty- point broach, indexed "H". NAIAD rebuildable auto-timed metering cartridge, adjustable run time from 2 to 15 seconds, opens with push, 0.20 max gallon/cycle. 1/2" NPSM supply inlet with coupling nut for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.

Features

• Single-hole
• Pressure compensating Softflo® aerator, 2.2 GPM
• Vandal Proof 1-1/2" Push-tilt handle
• Naiad metering cartridge with adjustable cycle time closure
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.

Common Questions

Is this safe for drinking water?

Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with a metering cartridge, an aerator outlet.

Will this fit my existing holes?

Match the mounting centers first: this model is Single-Hole.

Specifications

• Type: Deck-mounted metering faucet, single-hole, single-supply
• Size: 1/2"
• Connection: NPSM
• Body Material: Brass
• Operation: Metering (Self-Closing)
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 335-E12HOTABCP
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, NSF-61
• Lead-Free: Yes
• Centers: Single-Hole
• Handle Index: Hot
• Cartridge Type: Metering
• Outlet Type: Aerator
• Pressure Compensating: Yes
• Mount Type: Deck-Mount
• Handle Style: Push Button
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.2
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
