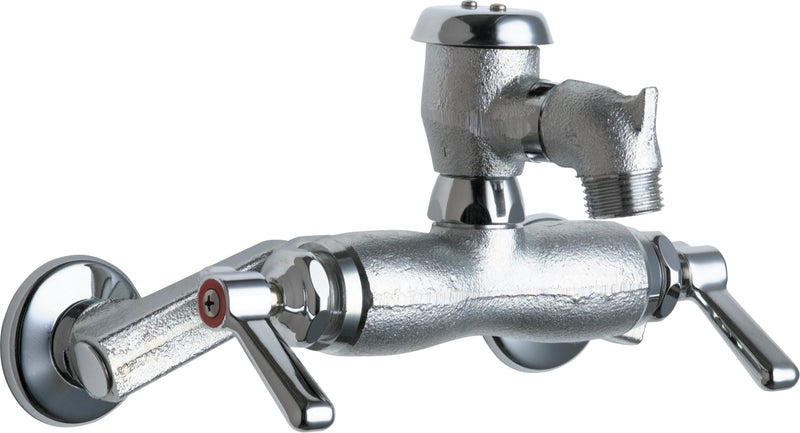

Chicago Faucets 305-VBRRCF Wall-mounted manual faucet with adjustable centers, NPT

The Chicago Faucets 305-VBRRCF is a wall-mounted manual faucet with adjustable centers with NPT connections. It is rated to 40°F to 140°F.

Chicago Faucets No. 305-VBRRCF, Sink Faucet for hot and cold water, wall mounted 3-3/8" body with adjustable arms for 3" - 8-3/8" centers. Rough chrome plated. Rigid spout with atmospheric vacuum breaker, pail hook, and 3/4" hose thread, 2-3/8" center-to-center. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 2-1/2" offset supply arm with integral shut-off stop, 1/2" NPT female thread inlet. 2-5/16" diameter slip flange. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, and ASSE 1001.

Features

• Handles include color-coded index
• 3-3/8" body, adjustable arms 3" - 8-3/8" centers
• 2-3/8" Rigid atmospheric vacuum breaker spout with 3/4" hose thread
• Vandal Proof 2-3/8" Lever handle (pair)
• Quaturn® compression operating cartridge, right-hand
• Quaturn® compression operating cartridge, left-hand
• 2-1/2" Offset supply arm with integral shutoff stop
• Vacuum breaker assembly
• Complies with the requirements of the Buy American Act of 1933.
• CFNow! Item Ships in 3 Days

Common Questions

Is this ADA compliant?

Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with 2 handles, a quaturn compression cartridge, a hose thread outlet.

Will this fit my existing holes?

Match the mounting centers first: this model is 8-3/8".

Specifications

• Type: Wall-mounted manual faucet with adjustable centers
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 305-VBRRCF
• Temperature: 40°F to 140°F
• Certifications: ADA, ASME A112.18.1/CSA B125.1, ASSE-1001
• Centers: 8-3/8"
• Spout Motion: Rigid
• Number of Handles: 2
• Handle Index: Hot and Cold
• Cartridge Type: Quaturn Compression
• Outlet Type: Hose Thread
• Mount Type: Wall-Mount
• Handle Style: Lever
• Coating / Finish: Rough Chrome
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Backflow Device: Atmospheric Vacuum Breaker
• Hose Length (in): 4.0
• Quick Ship: Yes
• Lead Time (days): 3
