Similar products
Specifications
Description

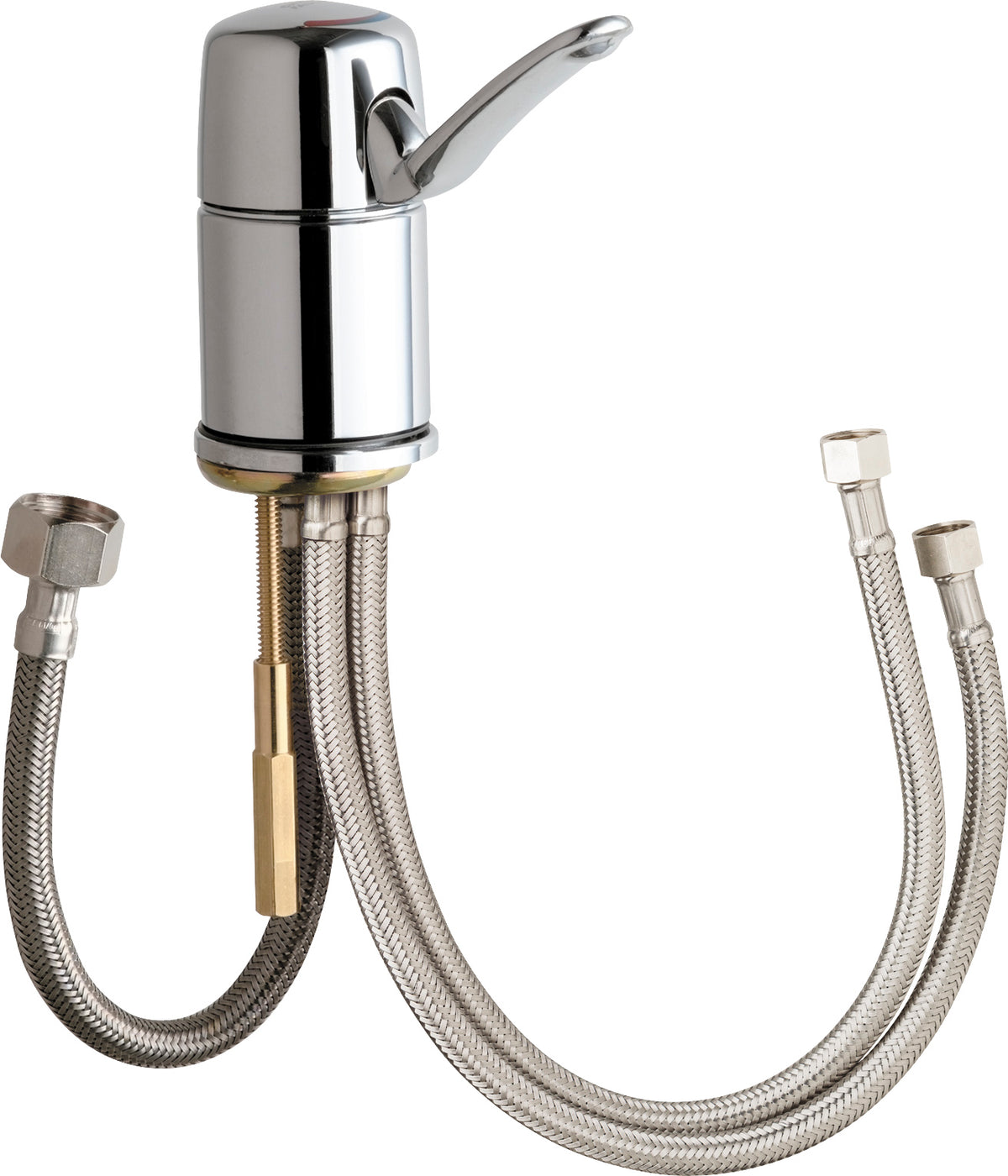

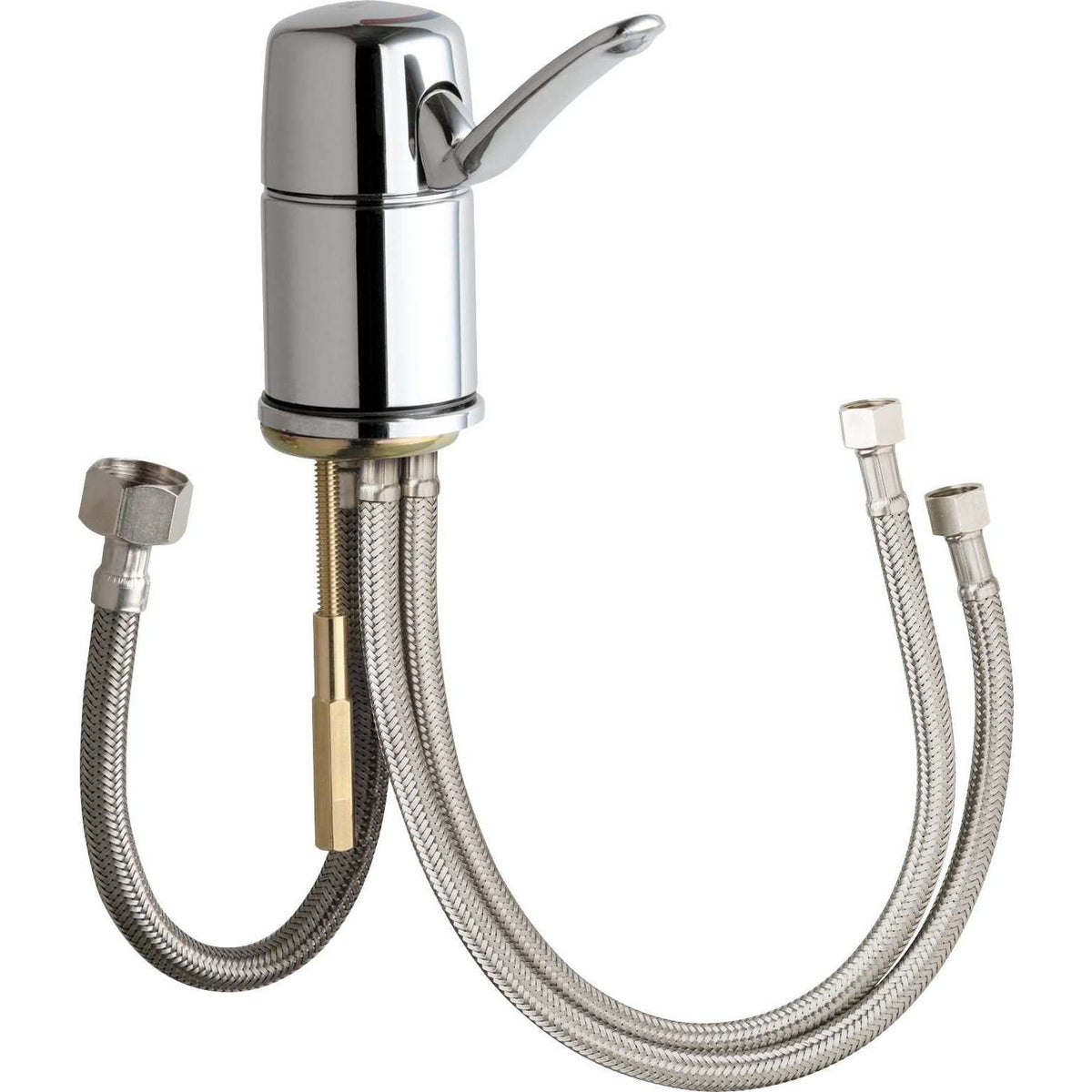

The Chicago Faucets 2303-ABCP is a 3/8" lead-free remote valve with Compression connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 2303-ABCP, Sink Faucet for hot and cold water, single lever, single-hole deck mount side valve, chrome plated. 2-3/4" metal lever handle with blue-and-red temperature indicator. Ceramic quarter-turn cartridge, features square, tapered stem. Flexible supply hoses with 3/8" compression fitting. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- Single-hole with side valve
- 2-3/4" Lever handle
- Ceramic operating cartridge with volume control and hot water limit stop
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 2200-225KJKCP
- Includes: 2300-XJKABNF
Specifications
- Type: Side valve for 2302/2304 Series fittings
- Size: 3/8"
- Connection: Compression
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 2303-ABCP
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1, Buy American Act, NSF-61
- Lead-Free: Yes
- Handle Style: Lever
- Cartridge Type: Ceramic 1/4-Turn
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 3/8" | End Connection | Compression |
Details
| Series | 2303 | Device Type | Side valve for 2302/2304 Series fittings |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Options | 2200-225KJKCP, 2300-XJKABNF | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Handle style | Lever | Lead time days | 3 |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Cartridge type | Ceramic 1/4-Turn |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| NSF-61 | — |
Compare with similar products
| Series | 2303
| LRV
| LRV
| LRV
| LRV
| LRV
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Side valve for 2302/2304 Series fittings
| Remote valve for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for straight panels
|
| Size Nominal | 3/8"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
|
| End Connection | Compression
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Application | — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ADA, ASME A112.18.1/CSA B125.1, NSF-61
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
|
| Options | 2200-225KJKCP, 2300-XJKABNF
| 205-LEBJKNF, 217-XTLHJKABNF, 216-128JKNF
| 205-LEBJKNF, 217-XTLHJKABNF, 216-178JKNF
| 204-LEBJKCP, 217-XTLHJKABNF, 216-128JKNF
| 204-LEBJKCP, 217-XTLHJKABNF, 216-178JKNF
| 205-LEBJKNF, 217-XTLHJKABNF, 216-128JKNF
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
