Description

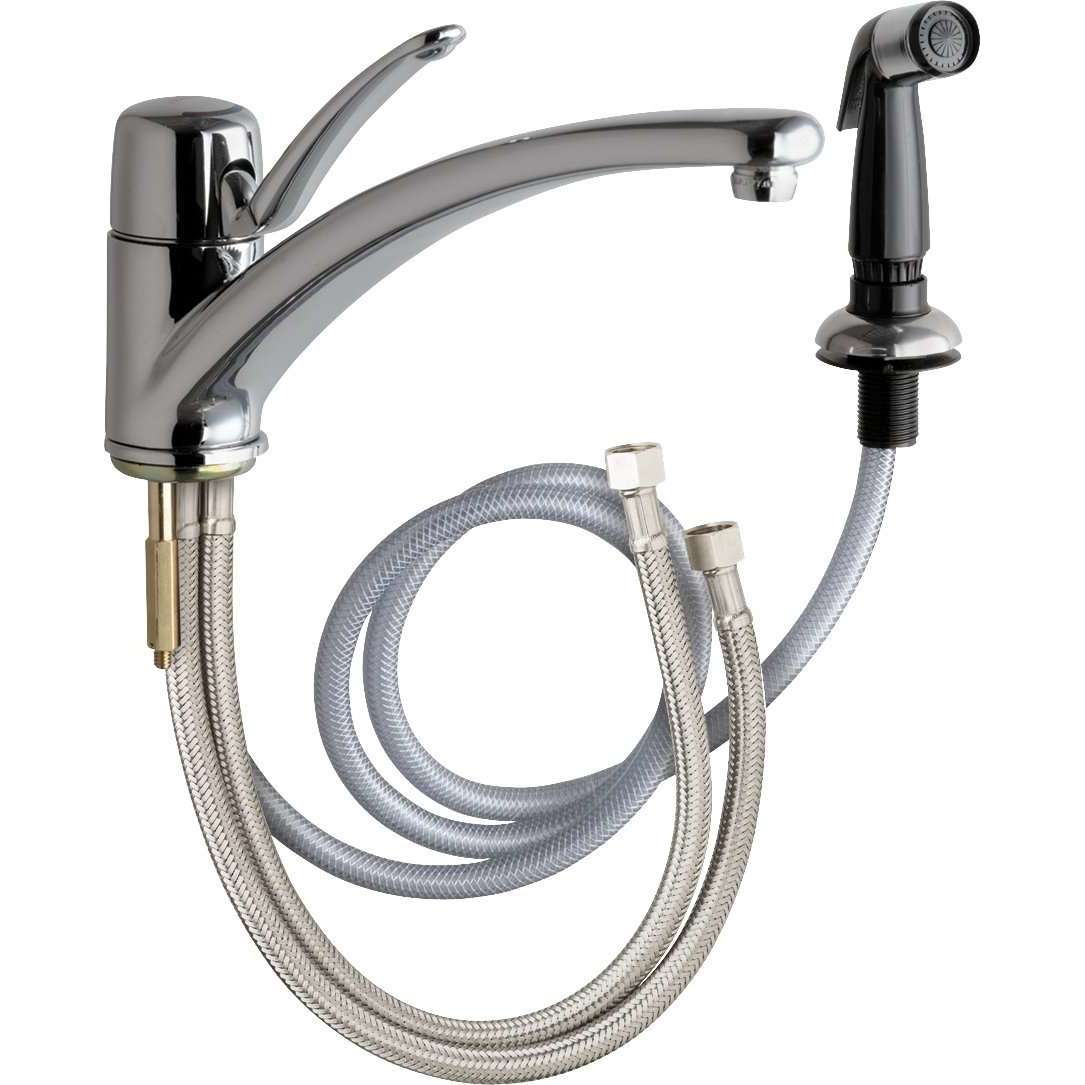

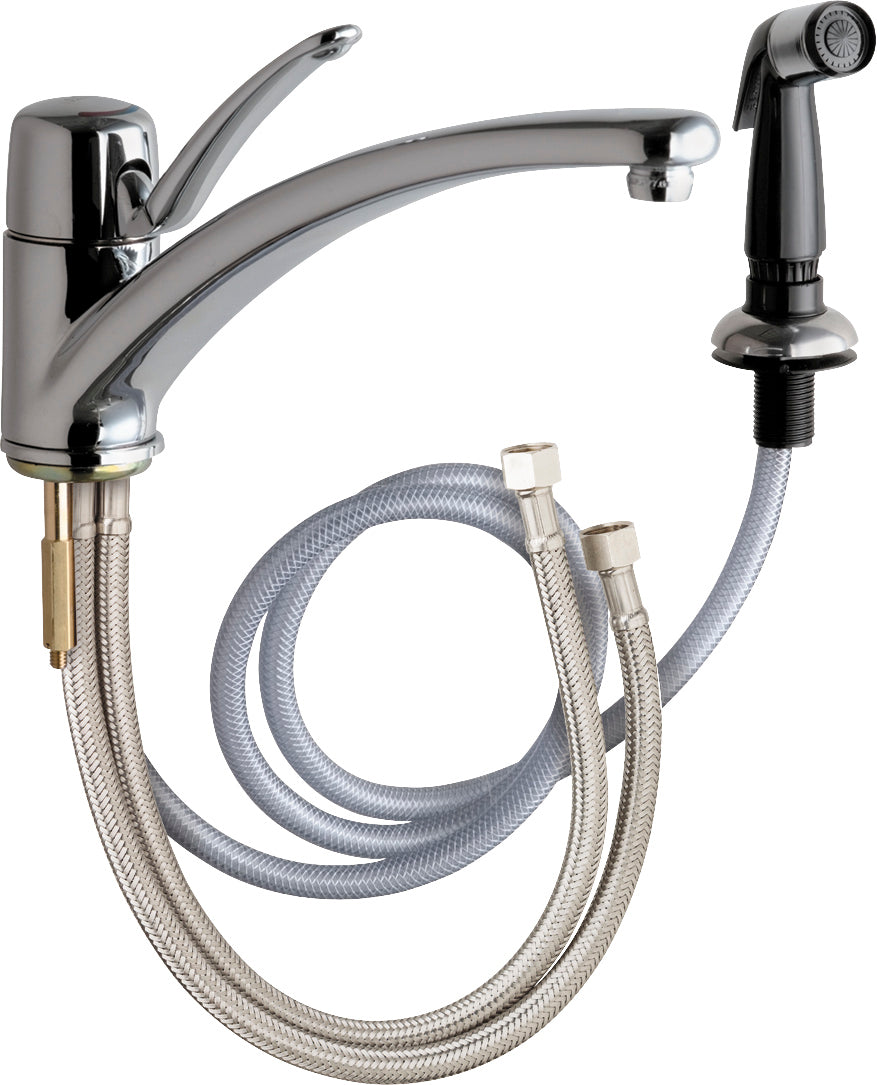

The Chicago Faucets 2301-ABCP is a lead-free deck-mounted manual faucet, single-hole mounting, with side spray with Compression connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 2301-ABCP, Sink Faucet for hot and cold water, single lever, single-hole deck mount with side spray, chrome plated. Integral, cast brass, swing spout, 10" center-to-center. 2.2 GPM (8.3 L/min) pressure compensating Softflo® aerator. 4-5/8" metal lever handle with blue-and-red temperature indicator. Ceramic quarter-turn cartridge, features square, tapered stem. side spray with Hose. Flexible supply hoses with 3/8" compression fitting. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- Includes side spray with hose
- Single-hole
- Pressure compensating Softflo® aerator, 2.2 GPM
- 4-5/8" Lever handle
- Ceramic operating cartridge with volume control and hot water limit stop
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- What does it include?
- It ships with 1 handle, a ceramic 1/4-turn cartridge, an aerator outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is Single-Hole.
Specifications
- Type: Deck-mounted manual faucet, single-hole mounting, with side spray
- Size: 3/8"
- Connection: Compression
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 2301-ABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-61
- Lead-Free: Yes
- Centers: Single-Hole
- Spout Motion: Swing
- Spout Reach (in): 10.0
- Number of Handles: 1
- Cartridge Type: Ceramic 1/4-Turn
- Outlet Type: Aerator
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.2
- Max Operating Pressure (PSI): 125
- Not for Sale in California: Yes
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 3/8" | End Connection | Compression |
Details
| Series | 2301 | Device Type | Deck-mounted manual faucet, single-hole mounting, with side spray |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Cec restricted | Yes | Coating | Polished Chrome |
| Flow rate gpm | 2.2 GPM | Handle style | Lever |
| Lead time days | 3 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Cartridge type | Ceramic 1/4-Turn |
| Centers | Single-Hole | Handle count | 1 |
| Outlet type | Aerator | Pressure compensating | Yes |
| Spout motion | Swing | Spout reach in | 10.0 |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| NSF-61 | — |
Compare with similar products
| Series | 2301
| 434
| 50
| 2304
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| 1-year finish; 5-year cartridge; 5-year faucet
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||
| Install Sheet | — | |||
| Device Type | Deck-mounted manual faucet, single-hole mounting, with side spray
| Deck-mounted high arc kitchen faucet with pull-down spout, single- hole mount
| Deck-mounted manual faucet, single-hole mounting
| Deck-mounted manual faucet, three-hole mounting
|
| Size Nominal | 3/8"
| 1/2"
| 1/2"
| 3/8"
|
| Lead Free | Yes | Yes | Yes | Yes |
| End Connection | Compression
| NPSM
| NPSM
| Compression
|
| Body Material | Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
