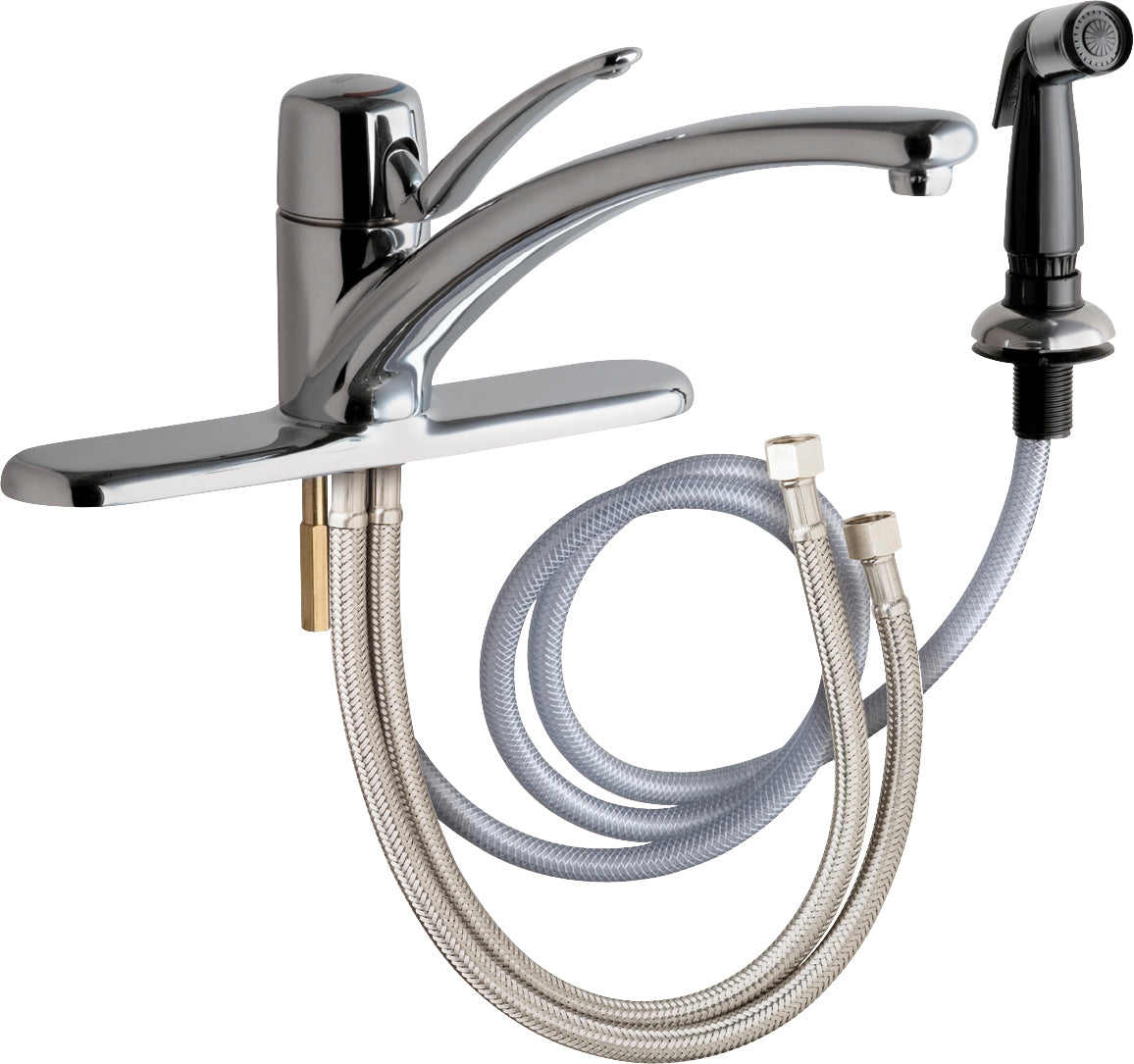

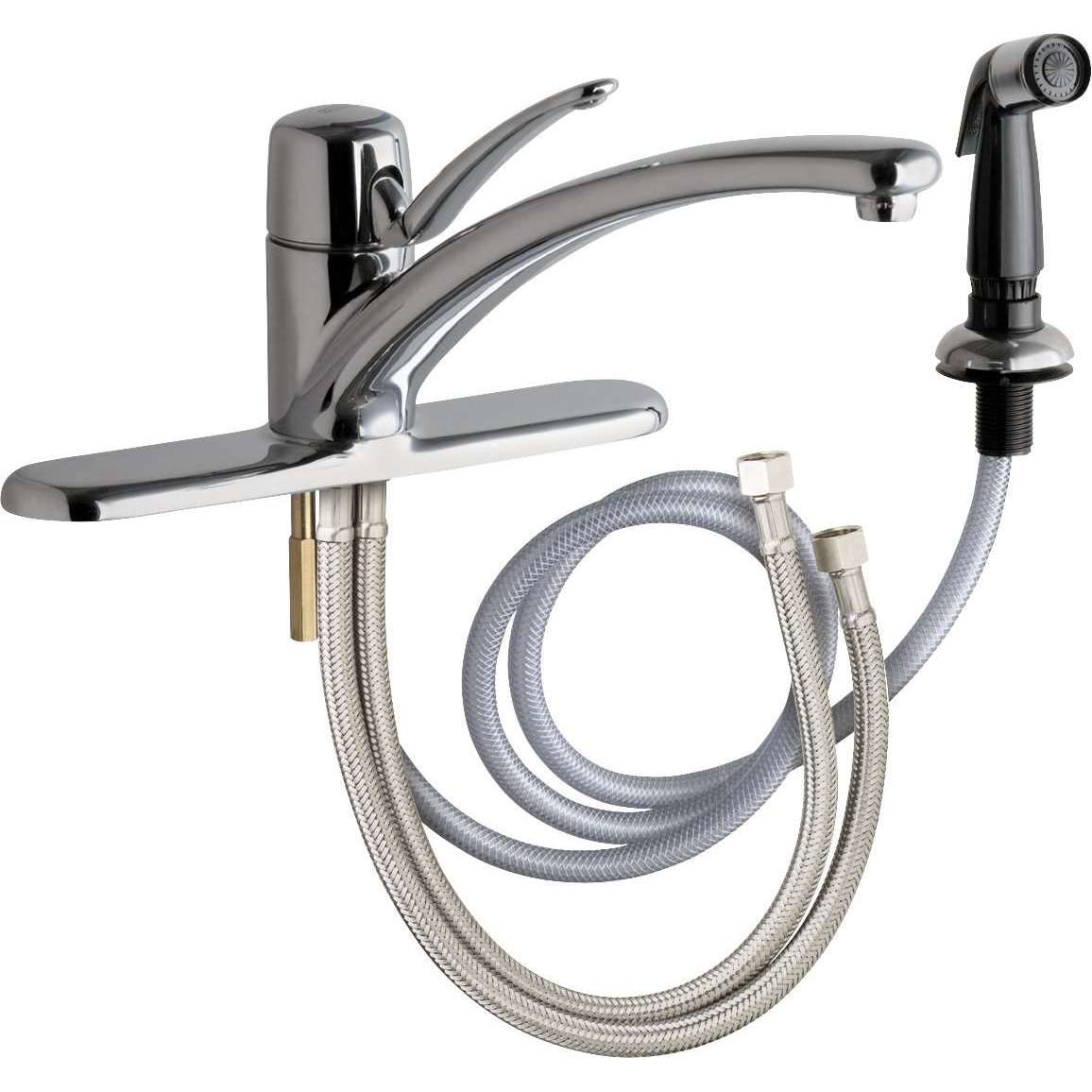

The Chicago Faucets 2301-8E34ABCP is a lead-free deck-mounted manual faucet, 8" centers, with side spray with Compression connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 2301-8E34ABCP, Sink Faucet for hot and cold water, single lever, deck-mounted with 8" fixed centers and side spray, chrome plated. Integral, cast brass, swing spout, 10" center-to-center. 1.5 GPM (5.7 L/min) pressure compensating Softflo® aerator. 4-5/8" metal lever handle with blue-and-red temperature indicator. Ceramic quarter-turn cartridge, features square, tapered stem. Flexible supply hoses with 3/8" compression fitting. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- Includes side spray with hose
- 8" fixed centers
- Pressure compensating Softflo® aerator, 1.5 GPM
- 4-5/8" Lever handle
- Ceramic operating cartridge with volume control and hot water limit stop
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Does it meet water-conservation codes?
- Yes, it is certified to WaterSense and CALGreen.
- What does it include?
- It ships with 1 handle, a ceramic 1/4-turn cartridge, an aerator outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Deck-mounted manual faucet, 8" centers, with side spray
- Size: 3/8"
- Connection: Compression
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 2301-8E34ABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61, WaterSense
- Lead-Free: Yes
- Centers: 8"
- Spout Motion: Swing
- Spout Reach (in): 10.0
- Number of Handles: 1
- Cartridge Type: Ceramic 1/4-Turn
- Outlet Type: Aerator
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 3/8" | End Connection | Compression |
Details
| Series | 2301 | Device Type | Deck-mounted manual faucet, 8" centers, with side spray |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Handle style | Lever | Lead time days | 3 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Quick ship | Yes |
| Cartridge type | Ceramic 1/4-Turn | Centers | 8" |
| Handle count | 1 | Outlet type | Aerator |
| Pressure compensating | Yes | Spout motion | Swing |
| Spout reach in | 10.0 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| CALGreen | NSF-372 |
| NSF-61 | WaterSense |
