Similar products
Specifications
Description

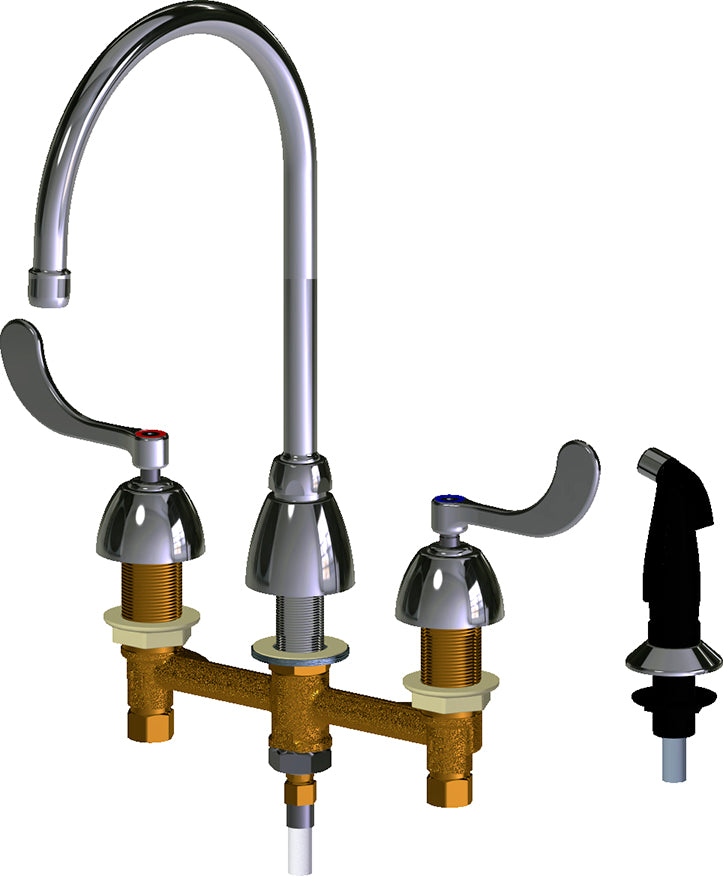

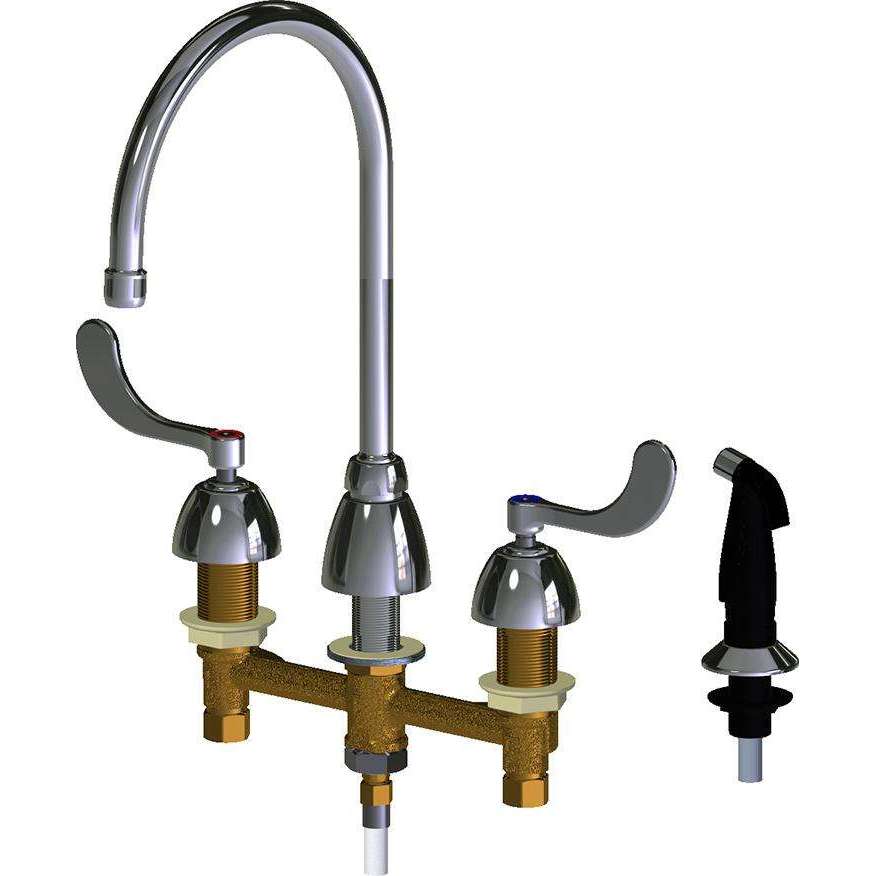

The Chicago Faucets 200-GN8AE3-317XKAB is a lead-free deck-mounted manual faucet with 8" centers with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 200-GN8AE3-317XKAB, Sink Faucet for hot and cold water, concealed deck-mount with 8" fixed centers and side spray, chrome plated. Rigid/swing gooseneck spout, 8" center-to-center. 2.2 GPM (8.3 L/min) pressure compensating Softflo® aerator. 4" metal, vandal-proof, wristblade handles with sixteen-point, tapered broach and secured blue and red index buttons. Ceramic quarter-turn cartridge, features square, tapered stem. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. Mounting hardware included. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- Handles include color-coded index
- 8" fixed centers
- 8" Rigid/swing gooseneck spout
- Pressure compensating Softflo® aerator, 2.2 GPM
- Vandal Proof 4" Wristblade handle (pair)
- Ceramic 1/4-turn operating cartridge, left-hand
- Ceramic 1/4-turn operating cartridge, right-hand
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with a gooseneck spout, 2 handles, a ceramic 1/4-turn cartridge, an aerator outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Deck-mounted manual faucet with 8" centers
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 200-GN8AE3-317XKAB
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1, NSF-61
- Lead-Free: Yes
- Centers: 8"
- Body Style: Concealed
- Spout Type: Gooseneck
- Spout Motion: Rigid/Swing
- Spout Reach (in): 8.0
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Ceramic 1/4-Turn
- Outlet Type: Aerator
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Handle Style: Wristblade
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.2
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Not for Sale in California: Yes
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 200 | Device Type | Deck-mounted manual faucet with 8" centers |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Cec restricted | Yes | Coating | Polished Chrome |
| Flow rate gpm | 2.2 GPM | Handle style | Wristblade |
| Lead time days | 3 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Body style | Concealed | Cartridge type | Ceramic 1/4-Turn |
| Centers | 8" | Handle count | 2 |
| Handle index | Hot and Cold | Outlet type | Aerator |
| Pressure compensating | Yes | Spout motion | Rigid/Swing |
| Spout reach in | 8.0 | Spout type | Gooseneck |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| NSF-61 | — |
