Similar products
Specifications
Description

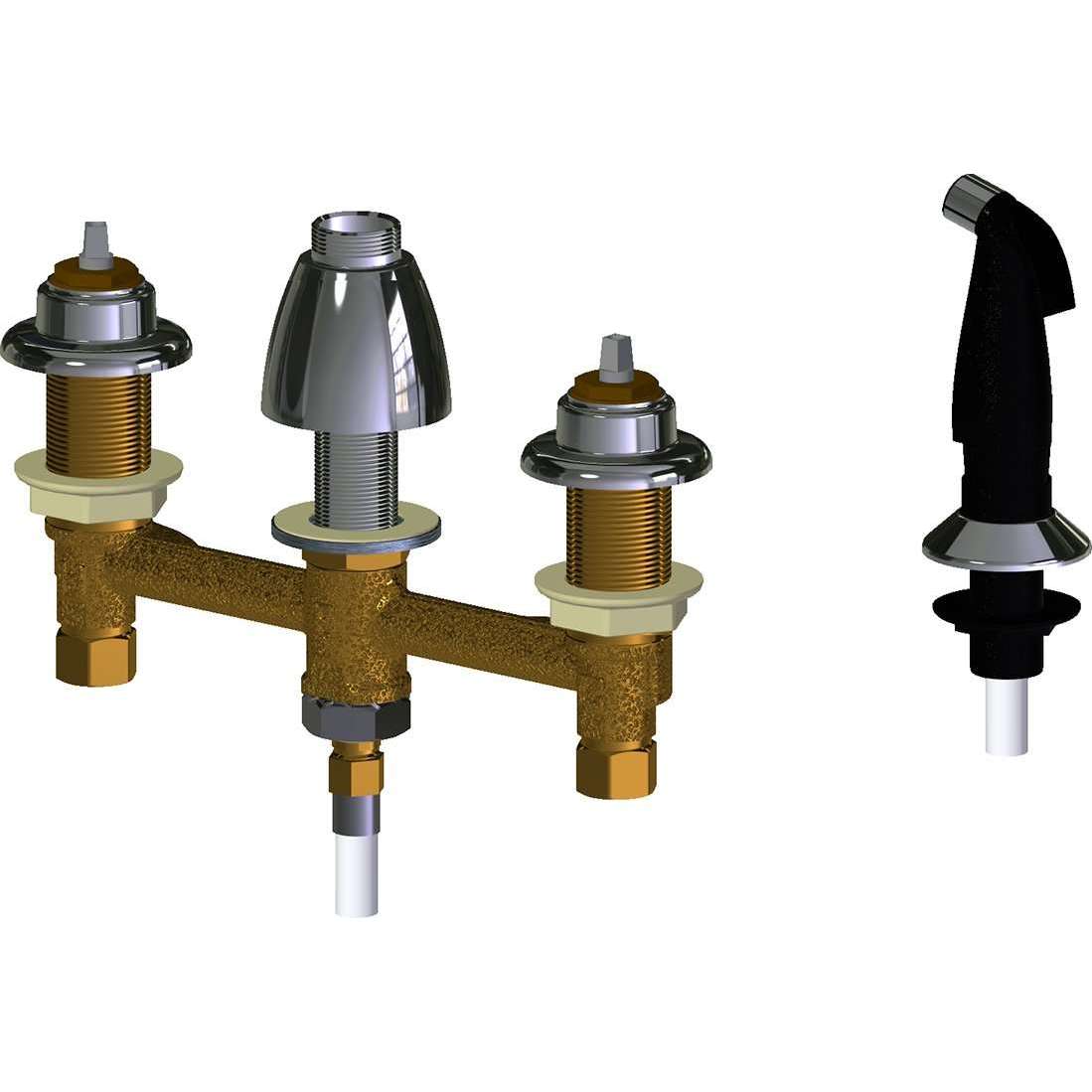

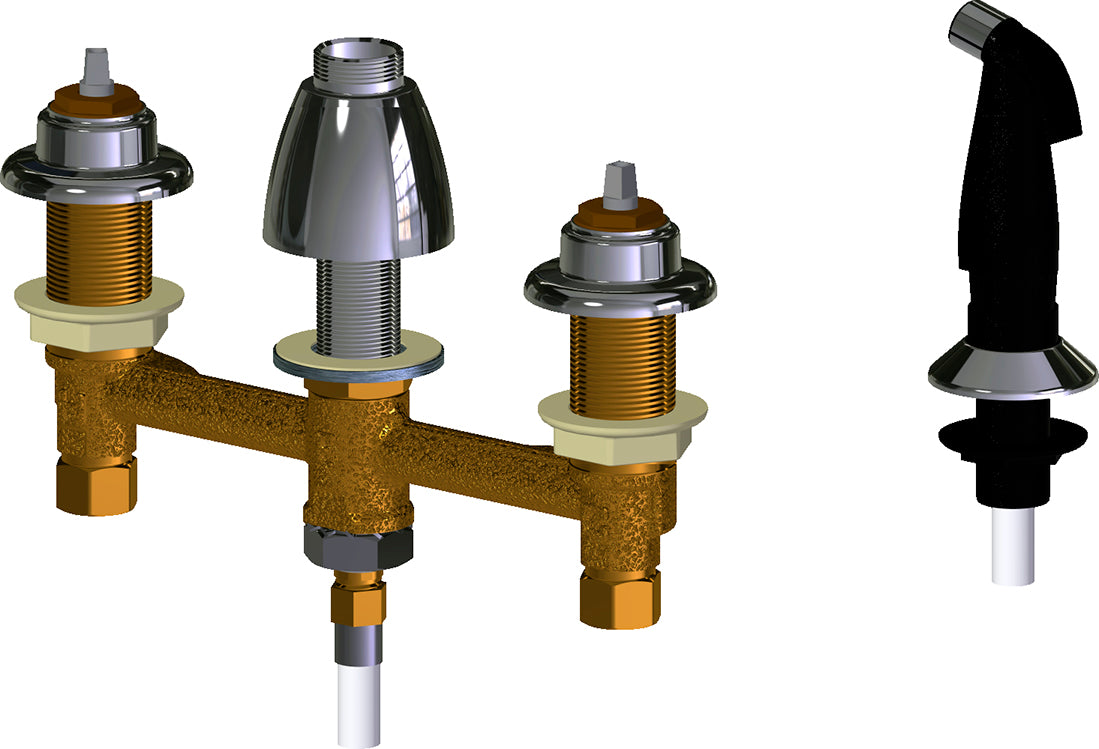

The Chicago Faucets 200-A1000LESHAB is a lead-free deck-mounted manual faucet with 8" centers with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 200-A1000LESHAB, Sink Faucet for hot and cold water, concealed deck-mount with 8" fixed centers and side spray, chrome plated. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average.
Features
- 8" fixed centers
- Less Spout
- Less Handle
- Quaturn® compression operating cartridge, right-hand
- Quaturn® compression operating cartridge, left-hand
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- What does it include?
- It ships with a quaturn compression cartridge.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Deck-mounted manual faucet with 8" centers
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 200-A1000LESHAB
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61
- Lead-Free: Yes
- Centers: 8"
- Body Style: Concealed
- Number of Handles: 0
- Cartridge Type: Quaturn Compression
- Mount Type: Deck-Mount
- Handle Style: Less Handle
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 200 | Device Type | Deck-mounted manual faucet with 8" centers |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Handle style | Less Handle |
| Lead time days | 5 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Body style | Concealed | Cartridge type | Quaturn Compression |
| Centers | 8" | Handle count | 0 |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
Compare with similar products
| Series | 200
| 786
| 1888
| 200
| 200
| 200
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Deck-mounted manual faucet with 8" centers
| Deck-mounted manual faucet with adjustable centers
| Deck-mounted manual faucet with 8" centers
| Deck-mounted manual faucet with 8" centers
| Deck-mounted manual faucet with 8" centers
| Deck-mounted manual faucet with 8" centers
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| NPSM
| NPSM
| NPSM
| NPSM
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61
| ADA, NSF-61, NSF-372, WaterSense
| ADA, ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ADA, ASME A112.18.1/CSA B125.1, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-61
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
