Specifications
Description

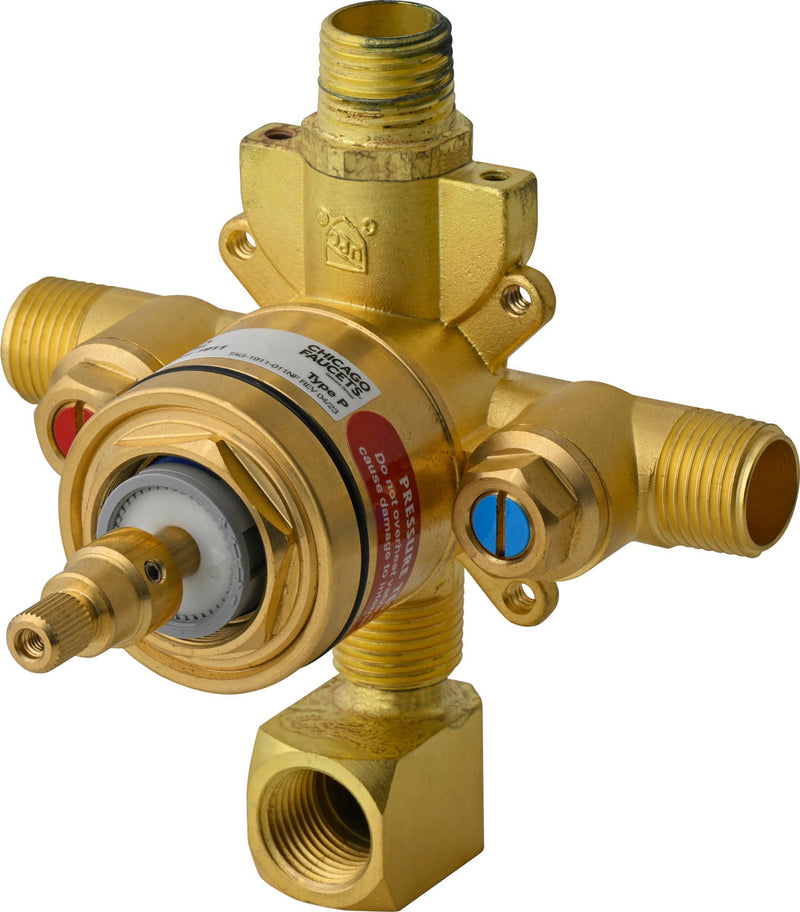

The Chicago Faucets 1911-VONF is a pressure-balancing shower valve. It is listed to ASSE-1016. Auto-Drain automatically drains the line between uses to reduce stagnation risk on low-use fixtures. It is rated to 40°F to 120°F.
Chicago Faucets No. 1911-VONF, Tub and Shower Valve, pressure balancing, wall-mounted. Includes pressure balancing cartridge. 1/2" nominal, copper, hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Includes integral service stops. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.
Features
- Integral service stops with checks to prevent cross flow
- Pressure balancing valve cartridge
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 1910-XJKNF
Common Questions
- Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?
- Yes. It is listed to ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.
- What does Auto-Drain do?
- The hand-spray hose assembly automatically drains itself between uses, which reduces the standing warm water that promotes Legionella growth in low-use fixtures -- the reason correctional, healthcare and hospitality buyers specify it.
Specifications
- Type: 1911 Series pressure balancing shower valve with Auto-Drain®
- Size: 1/2"
- Pack Quantity: 1
- Warranty: 1-year finish; 5-year cartridge; 5-year faucet
- MPN: 1911-VONF
- Temperature: 40°F to 120°F
- Certifications: ASME A112.18.1/CSA B125.1, ASSE-1016
- Auto-Drain: Yes
- ASSE Listing: ASSE-1016
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 1/2" | — | — |
Details
| Series | 1911 | Device Type | 1911 Series pressure balancing shower valve with Auto-Drain® |
| Max Temp °F | 120.0 °F | Pack Qty | 1 |
| Options | 1910-XJKNF | Min Temp °F | 40.0 °F |
| ASSE Listing | ASSE-1016 | Baa | USA |
| Coating | Polished Chrome | Handle style | Cross |
| Lead time days | 3 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Auto drain | Yes |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ASSE-1016 |
Compare with similar products


| ASSE Listing | ASSE-1016
| ASSE-1016
|
| Series | 1911
| SH
|
| Warranty | 1-year finish; 5-year cartridge; 5-year faucet
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | 1911 Series pressure balancing shower valve with Auto-Drain®
| Pressure balancing shower system with hand spray and wall hook
|
| Size Nominal | 1/2"
| 1/2"
|
| Max Temp °F | 120.0 °F | 120.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ASSE-1016
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
|
| Pack Qty | 1
| 1
|
| Options | 1910-XJKNF
| 624-CP, 1910-XJKNF, 763-CP, 600-CP, E24JKCP, 24-69NF, 622-001CP, 9800-001CP
|
| Min Temp °F | 40.0 °F | 40.0 °F |
