The Chicago Faucets 1771-ABCP is a 1/2" lead-free remote valve with NPT connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

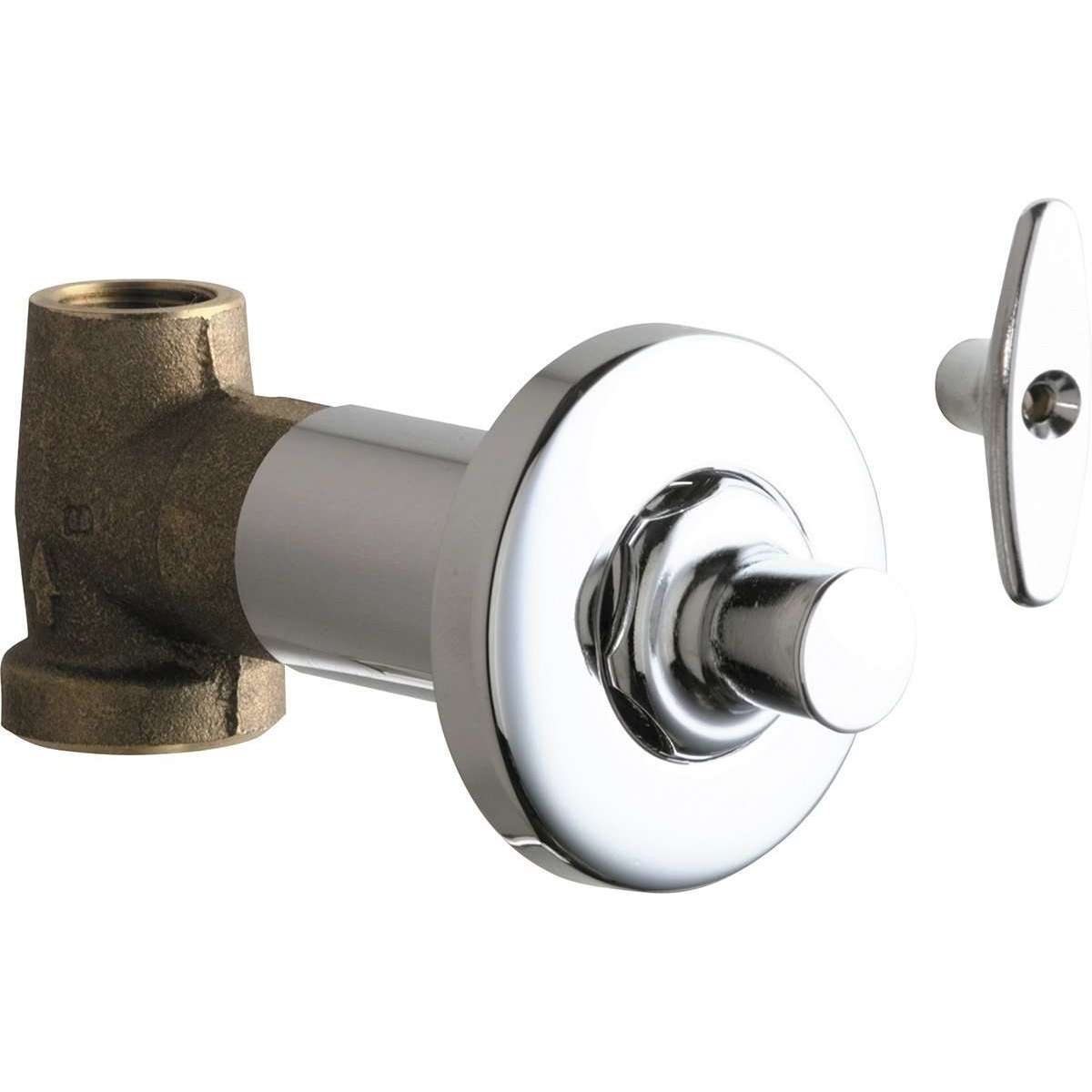

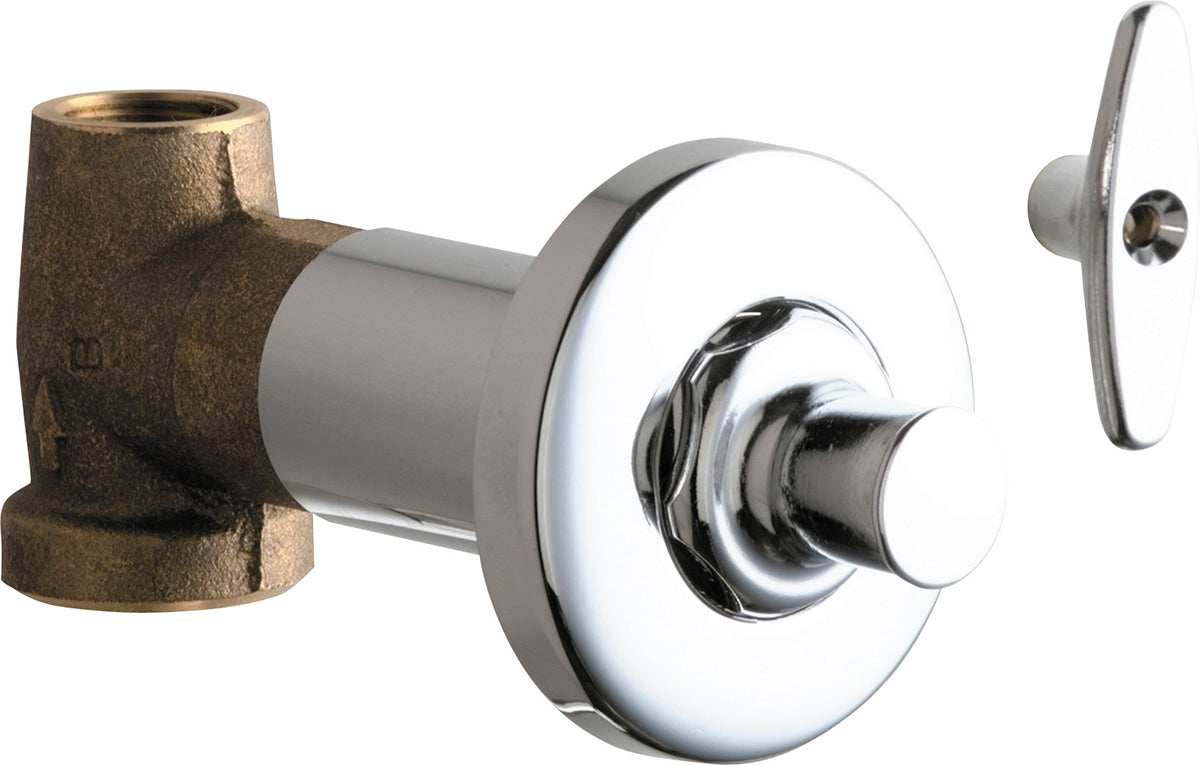

Chicago Faucets No. 1771-ABCP, Concealed Straight Valve with loose key, chrome plated. 2-1/4" metal tee handle with square, tapered broach. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 1/2" NPT female thread inlet. 1/2" NPT female thread outlet. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- Vandal Proof 2-1/4" Tee handle
- Slow compression operating cartridge, left-hand
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
- Includes: 293-006JKRCF
- Includes: 217-XTLHJKABNF
Common Questions
- Is this vandal resistant?
- Yes -- Chicago states this model is vandal-proof/vandal-resistant, meaning the index button is secured and the handle resists unauthorized removal. Common in teaching labs and other student/public-accessible spaces.
Specifications
- Type: Remote straight valve
- Size: 1/2"
- Connection: NPT
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 1771-ABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, Buy American Act, NSF-372
- Lead-Free: Yes
- Body Pattern: Straight
- Mount Type: In-Wall
- Handle Style: Tee
- Cartridge Type: Slow Compression
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 1771-ABCP | 611943489618 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 1771 | Device Type | Remote straight valve |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Options | 293-006JKRCF, 217-XTLHJKABNF | Min Temp °F | 40.0 °F |
| Baa | USA | Body pattern | Straight |
| Coating | Polished Chrome | Handle style | Tee |
| Lead time days | 3 | Mount type | In-Wall |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Cartridge type | Slow Compression | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-372 |
Compare with similar products
| Series | 1771
| LRV
| LRV
| LRV
| LRV
| LRV
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
|
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Remote straight valve
| Remote valve for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for straight panels
|
| Size Nominal | 1/2"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Application | — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-372
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
|
| Options | 293-006JKRCF, 217-XTLHJKABNF
| 205-LEBJKNF, 217-XTLHJKABNF, 216-128JKNF
| 205-LEBJKNF, 217-XTLHJKABNF, 216-178JKNF
| 204-LEBJKCP, 217-XTLHJKABNF, 216-128JKNF
| 204-LEBJKCP, 217-XTLHJKABNF, 216-178JKNF
| 205-LEBJKNF, 217-XTLHJKABNF, 216-128JKNF
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
