Chicago Faucets 152-LADCP Auto-Drain® hose and hand spray, 1.5 GPM, with 24" ADA grab bar

The Chicago Faucets 152-LADCP is an auto-drain® hose and hand spray, 1.5 gpm, with 24" ada grab bar. Auto-Drain automatically drains the line between uses to reduce stagnation risk on low-use fixtures. It is rated to 40°F to 120°F.

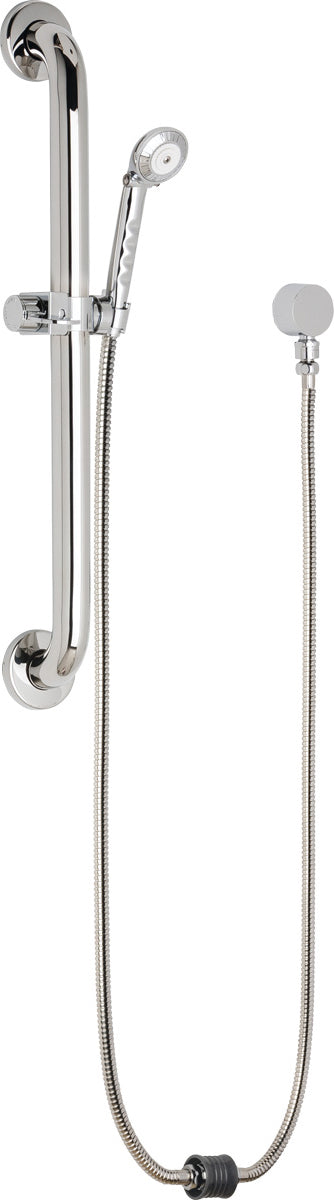

Chicago Faucets No. 152-LADCP, Auto-Drain® hose assembly, 1.5 GPM (5.7 L/min) hand spray with pause control; two 34" stainless steel hoses with automatic hose drain and 24" wall-mounted ADA grab bar with hand spray holder. Must be used in combination with inline check valves to comply with ASSE 1014. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements.

Features

• 1.5 GPM (5.7 L/min)
• 1.5 GPM hand spray with pause control; two 34" stainless steel hoses with Auto-Drain®
• 24" wall-mounted ADA grab bar with hand spray holder
• Hand spray with pause control, 1.5 GPM max.
• Complies with the requirements of the Buy American Act of 1933.
• Includes: 624-LCP
• Includes: 1920-035KJKCP
• Includes: 622-001CP
• Includes: 9800-024CP

Common Questions

What does Auto-Drain do?

The hand-spray hose assembly automatically drains itself between uses, which reduces the standing warm water that promotes Legionella growth in low-use fixtures -- the reason correctional, healthcare and hospitality buyers specify it.

Specifications

• Type: Auto-Drain® hose and hand spray, 1.5 GPM, with 24" ADA grab bar
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 152-LADCP
• Temperature: 40°F to 120°F
• Certifications: ASME A112.18.1/CSA B125.1, ADA, WaterSense
• Auto-Drain: Yes
• Pause Control: Yes
• Hose Length (in): 34.0
• Length: 24"
• Mount Type: Wall-Mount
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
