Specifications
Description

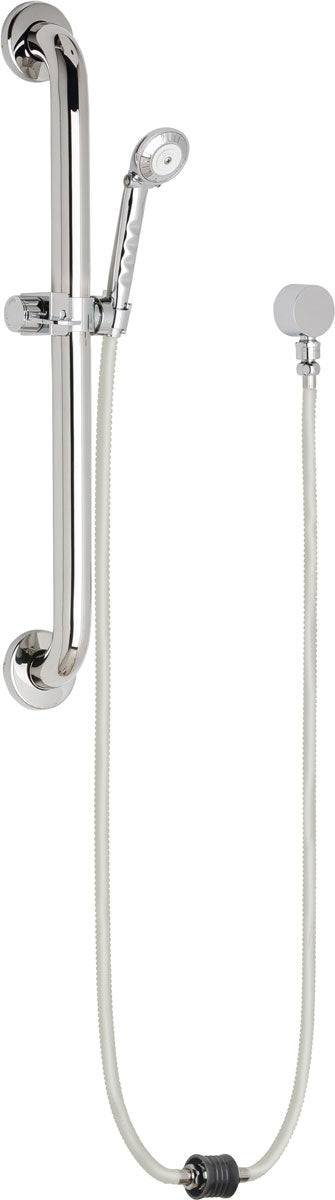

The Chicago Faucets 152-ADPVCW is an auto-drain® hose and hand spray, 2.5 gpm, with 24" ada grab bar. Auto-Drain automatically drains the line between uses to reduce stagnation risk on low-use fixtures. It is rated to 40°F to 120°F.
Chicago Faucets No. 152-ADPVCW, Auto-Drain® hose assembly, 2.5 GPM (9.5 L/min) hand spray with pause control; two 34" white vinyl hoses with automatic hose drain and 24" wall-mounted ADA grab bar with hand spray holder. Must be used in combination with inline check valves to comply with ASSE 1014. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements.
Features
- 2.5 GPM (9.5 L/min)
- 2.5 GPM hand spray with pause control; two 34" white vinyl hoses with Auto-Drain®
- 24" wall-mounted ADA grab bar with hand spray holder
- Hand spray with pause control, 2.5 GPM max.
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 624-CP
- Includes: 1920-235KJKCP
- Includes: 622-001CP
- Includes: 9800-024CP
Common Questions
- What does Auto-Drain do?
- The hand-spray hose assembly automatically drains itself between uses, which reduces the standing warm water that promotes Legionella growth in low-use fixtures -- the reason correctional, healthcare and hospitality buyers specify it.
Specifications
- Type: Auto-Drain® hose and hand spray, 2.5 GPM, with 24" ADA grab bar
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 152-ADPVCW
- Temperature: 40°F to 120°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA
- Auto-Drain: Yes
- Pause Control: Yes
- Length: 24"
- Mount Type: Wall-Mount
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.5
- Max Operating Pressure (PSI): 125
- Not for Sale in California: Yes
- Lead Time (days): 5
Product Information
Details
| Series | 152 | Device Type | Auto-Drain® hose and hand spray, 2.5 GPM, with 24" ADA grab bar |
| Max Temp °F | 120.0 °F | Pack Qty | 1 |
| Options | 624-CP, 1920-235KJKCP, 622-001CP, 9800-024CP | Min Temp °F | 40.0 °F |
| Baa | USA | Cec restricted | Yes |
| Coating | Polished Chrome | Flow rate gpm | 2.5 GPM |
| Lead time days | 5 | Length | 24.0 in |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Auto drain | Yes |
| Pause control | Yes | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
Compare with similar products


| ASSE Listing | — | ASSE-1016
| ASSE-1016
|
| Series | 152
| SH
| SH
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | |||
| Install Sheet | — | ||
| Device Type | Auto-Drain® hose and hand spray, 2.5 GPM, with 24" ADA grab bar
| Pressure balancing shower system with hand spray and wall hook
| Pressure Balancing Trim Kit
|
| Size Nominal | — | 1/2"
| 1/2"
|
| End Connection | — | NPT
| NPT
|
| Max Temp °F | 120.0 °F | 120.0 °F | 120.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
|
| Pack Qty | 1
| 1
| 1
|
| Options | 624-CP, 1920-235KJKCP, 622-001CP, 9800-024CP
| 624-CP, 1910-XJKNF, 763-CP, 600-CP, E24JKCP, 24-69NF, 622-001CP, 9800-001CP
| 1910-XJKNF
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F |
