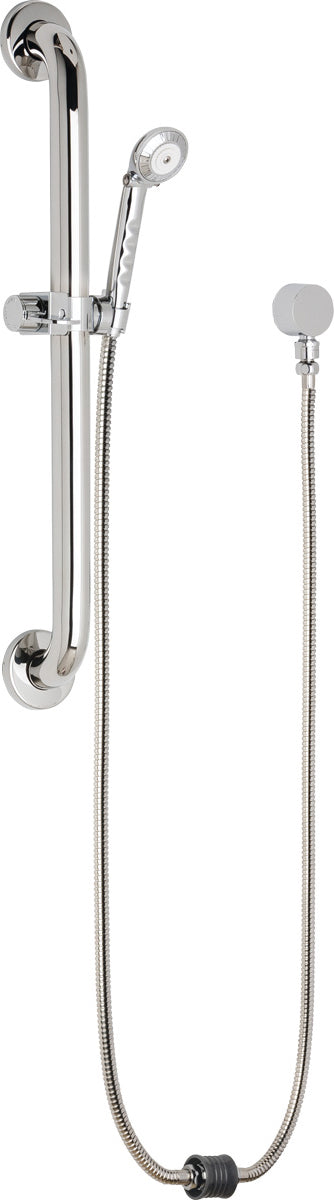

Chicago Faucets 152-ADCP Auto-Drain® hose and hand spray, 2.5 GPM, with 24" ADA grab bar

SKU: 152-ADCP
Price:
Sale price$375.47 Regular price$519.22
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $375.47

Free shipping over $200

Key Features

Mount Type Wall-Mount
Flow Rate 2.5 GPM
Finish Polished Chrome
Spec Sheet Download
See all product information

Similar products

Chicago Faucets Ada Bar Clamp With Hose Holder 9800-002CP
Chicago Faucets SH-PB1-00-000 1/2" Trim Kit, NPTChicago Faucets Pressure Balancing Tub-Shower Valve-Trim SH-PB1-00-000
Compare Products

Specifications

Description

The Chicago Faucets 152-ADCP is an auto-drain® hose and hand spray, 2.5 gpm, with 24" ada grab bar. Auto-Drain automatically drains the line between uses to reduce stagnation risk on low-use fixtures. It is rated to 40°F to 120°F.

Chicago Faucets No. 152-ADCP, Auto-Drain® hose assembly, 2.5 GPM (9.5 L/min) hand spray with pause control; two 34" stainless steel hoses with automatic hose drain and 24" wall-mounted ADA grab bar with hand spray holder. Must be used in combination with inline check valves to comply with ASSE 1014. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements.

Features

  • 2.5 GPM (9.5 L/min)
  • 2.5 GPM hand spray with pause control; two 34" stainless steel hoses with Auto-Drain®
  • 24" wall-mounted ADA grab bar with hand spray holder
  • Hand spray with pause control, 2.5 GPM max.
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: 624-CP
  • Includes: 1920-035KJKCP
  • Includes: 622-001CP
  • Includes: 9800-024CP

Common Questions

What does Auto-Drain do?
The hand-spray hose assembly automatically drains itself between uses, which reduces the standing warm water that promotes Legionella growth in low-use fixtures -- the reason correctional, healthcare and hospitality buyers specify it.

Specifications

  • Type: Auto-Drain® hose and hand spray, 2.5 GPM, with 24" ADA grab bar
  • Pack Quantity: 1
  • Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
  • MPN: 152-ADCP
  • Temperature: 40°F to 120°F
  • Certifications: ASME A112.18.1/CSA B125.1, ADA
  • Auto-Drain: Yes
  • Pause Control: Yes
  • Hose Length (in): 34.0
  • Length: 24"
  • Mount Type: Wall-Mount
  • Coating / Finish: Polished Chrome
  • Flow Rate (GPM): 2.5
  • Max Operating Pressure (PSI): 125
  • Not for Sale in California: Yes
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
152-ADCP 611943157845 Lifetime faucet; 1-year finish; 5-year cartridge DownloadDownload

Details

Series 152 Device Type Auto-Drain® hose and hand spray, 2.5 GPM, with 24" ADA grab bar
Max Temp °F 120.0 °F Pack Qty 1
Options 624-CP, 1920-035KJKCP, 622-001CP, 9800-024CP Min Temp °F 40.0 °F
Baa USA Cec restricted Yes
Coating Polished Chrome Flow rate gpm 2.5 GPM
Hose length in 34.0 Lead time days 5
Length 24.0 in Mount type Wall-Mount
Operating pressure max psi 125.0 PSI Prop65 Yes
Auto drain Yes Pause control Yes

Certifications & Standards

ASME A112.18.1/CSA B125.1 ADA

Compare with similar products

ASSE Listing
—
ASSE-1016
ASSE-1016
Series
152
SH
SH
Warranty
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Spec Sheet
Install Sheet
—
Device Type
Auto-Drain® hose and hand spray, 2.5 GPM, with 24" ADA grab bar
Pressure balancing shower system with hand spray and wall hook
Pressure Balancing Trim Kit
Size Nominal
—
1/2"
1/2"
End Connection
—
NPT
NPT
Max Temp °F
120.0 °F
120.0 °F
120.0 °F
Certifications
ASME A112.18.1/CSA B125.1, ADA
ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
Pack Qty
1
1
1
Options
624-CP, 1920-035KJKCP, 622-001CP, 9800-024CP
624-CP, 1910-XJKNF, 763-CP, 600-CP, E24JKCP, 24-69NF, 622-001CP, 9800-001CP
1910-XJKNF
Min Temp °F
40.0 °F
40.0 °F
40.0 °F
