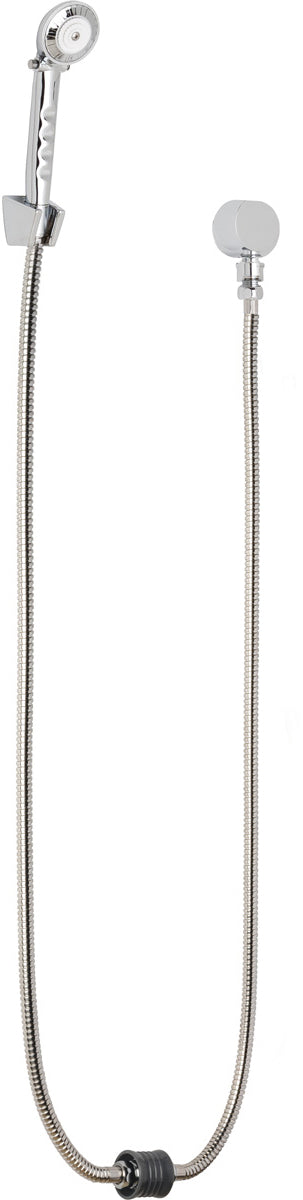

Chicago Faucets 150-175ADCP Auto-Drain® hose and hand spray, 1.75 GPM

The Chicago Faucets 150-175ADCP is an auto-drain® hose and hand spray, 1.75 gpm. Auto-Drain automatically drains the line between uses to reduce stagnation risk on low-use fixtures. It is rated to 40°F to 120°F.

Chicago Faucets No. 150-175ADCP, Auto-Drain® hose assembly, 1.75 GPM (6.6 L/min) hand spray with pause control; two 34" stainless steel hoses with automatic hose drain. Must be used in combination with inline check valves to comply with ASSE 1014. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements.

Features

• 1.75 GPM (6.6 L/min) hand spray with pause control; two 34" stainless steel hoses with Auto-Drain®
• Wall-mounted hand spray holder
• Hand spray with pause control, 1.75 GPM max.
• Complies with the requirements of the Buy American Act of 1933.
• CFNow! Item Ships in 3 Days
• Includes: 624-175CP
• Includes: 1920-035KJKCP
• Includes: 622-001CP
• Includes: 9800-001CP

Common Questions

What does Auto-Drain do?

The hand-spray hose assembly automatically drains itself between uses, which reduces the standing warm water that promotes Legionella growth in low-use fixtures -- the reason correctional, healthcare and hospitality buyers specify it.

Specifications

• Type: Auto-Drain® hose and hand spray, 1.75 GPM
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 150-175ADCP
• Temperature: 40°F to 120°F
• Certifications: ASME A112.18.1/CSA B125.1, ADA, WaterSense
• Auto-Drain: Yes
• Pause Control: Yes
• Hose Length (in): 34.0
• Mount Type: Wall-Mount
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.75
• Max Operating Pressure (PSI): 125
• Not for Sale in California: Yes
• Lead Time (days): 5
