Specifications
Description

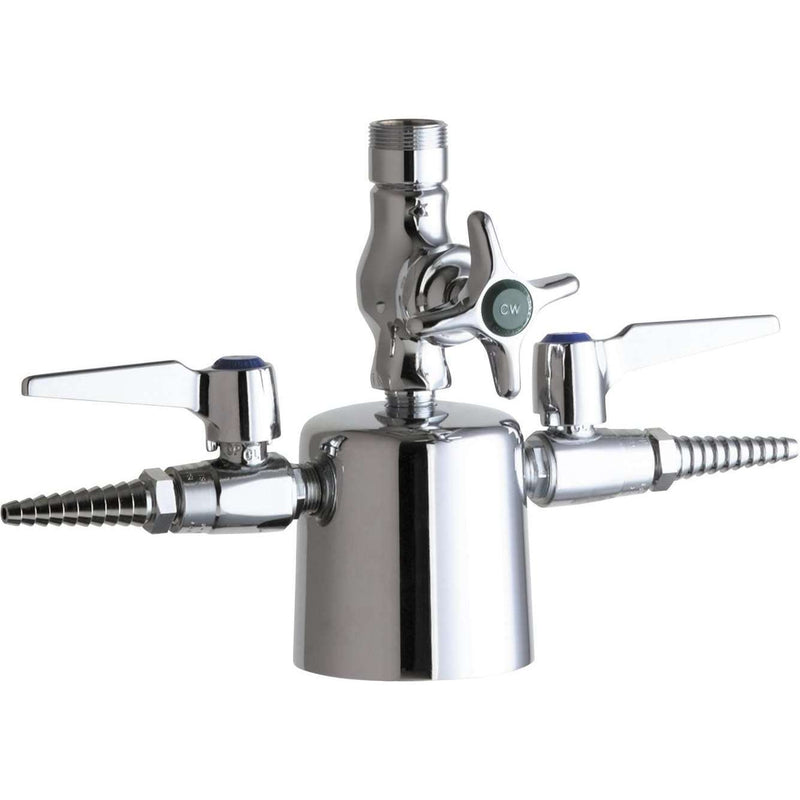

The Chicago Faucets 1301-LES is a combination fixture. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. 1301-LES, Multiple Service Valve, combination triple service, chrome plated. Deck mounted. Serrated, full-flow laboratory nozzle. Includes shank assembly. May be used with most laboratory gases. 909 Valve is Certified for Gas Service per ANSI Z21.15b-2006/CSA 9.1b-2006 by the Canadian Standards Association. Mounting hardware included. Secondary control valve: 2-1/2" metal, vandal-proof, cross handle with eight-point, tapered broach and button indexed "CW". Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem.
Features
- Less Spout
- Laboratory nozzle with 10 serrations for laboratory hose
- Vandal Proof 2-1/2" Chrome cross handle with button indexed
- 'CW'
- Slow compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: S0
- Includes: E7TJKCP
- Includes: 204-CWJKCP
- Includes: 217-XTLHJKABNF
Common Questions
- Is this vandal resistant?
- Yes -- Chicago states this model is vandal-proof/vandal-resistant, meaning the index button is secured and the handle resists unauthorized removal. Common in teaching labs and other student/public-accessible spaces.
Specifications
- Type: Deck-mounted triple service combination valve
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
- MPN: 1301-LES
- Temperature: 40°F to 140°F
- Certifications: ANSI Z21.15/CSA 9.1, Buy American Act
- Handle Style: Metal Cross
- Handle Index: Cold
- Outlet Type: Serrated Hose Nozzle
- Cartridge Type: Quaturn Compression
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Lead Time (days): 5
Product Information
Details
| Series | 1301 | Device Type | Deck-mounted triple service combination valve |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | S0, E7TJKCP, 204-CWJKCP, 217-XTLHJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Handle style | Metal Cross |
| Lead time days | 5 | Vandal resistant | Yes |
| Cartridge type | Quaturn Compression | Handle index | Cold |
| Outlet type | Serrated Hose Nozzle | — | — |
Certifications & Standards
| ANSI Z21.15/CSA 9.1 | — |
