The Chicago Faucets 116.860.AB.1T is a lead-free HyTronic sensor faucet powered by DC (Battery). It includes a mechanical mixing valve. It delivers 1.5 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

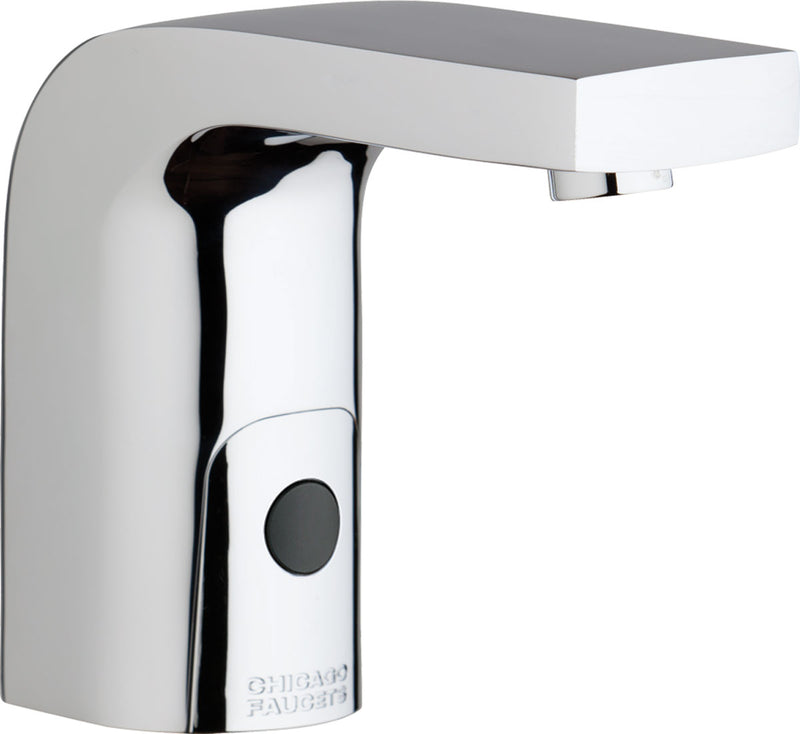

Chicago Faucets No. 116.860.AB.1T, HyTronic electronic faucet with dual-beam infrared sensor. Edge spout, chrome plated. Single-hole, deck mount. 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet. Vandal-proof, non-aerating, laminar flow stream solidifier in outlet. Dual supply for hot and cold water service. 6-volt lithium CRP2 battery included. Flexible supply hoses included. Concealed, internal temperature control mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet
- Internal Antenna Specifications: Peak Gain of the antenna: ─5.47 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC01
- 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Single-hole (4" and 8" deck plates available, see Accessories)
- HyTronic® Edge spout with 1.5 GPM flow control
- Vandal Proof Non-aerating laminar stream straightener outlet for
- HyTronic® Series
- Flow control insert, 1.5 GPM
- HyTronic® module kit with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 242.756.AB.1
- Includes: 242.757.AB.1
- Includes: 1020-006JKABNF
- Includes: 242.433.00.1T
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet runs on battery power (6V Lithium CRP2 Battery (Included)). No electrical wiring or transformer is needed -- it installs anywhere a manual faucet does.
- Does it include scald protection?
- It has a mechanical mixing valve to blend hot and cold supply, but it is not an ASSE 1070 thermostatic valve. Where code requires certified scald protection, specify a Thermostatic Mixing Valve (ASSE 1070) model instead.
- How long does the water run before it shuts off?
- The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
-
Type: Touch-free, programmable faucet with above-deck electronics
-
Pack Quantity: 1
-
Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
-
MPN: 116.860.AB.1T
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61, WaterSense
-
Lead-Free: Yes
-
Power Source: DC (Battery)
-
Run Time (s): 40
-
Connectivity: Bluetooth
-
Mixing Valve: Mechanical Mixing Valve
-
Spout Type: Edge
-
Centers: Single-Hole
-
Outlet Type: Laminar (Non-Aerating)
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 1.5
-
Connection: Flexible Supply Hoses
-
Vandal Resistant: Yes
-
Max Operating Pressure (PSI): 125
-
Lead Time (days): 5
