Specifications
Description

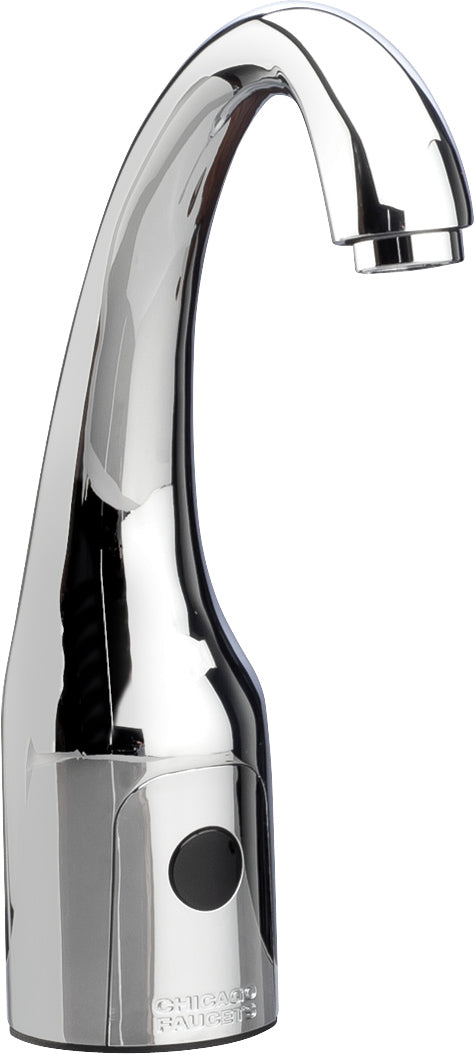

The Chicago Faucets 116.715.AB.4T is a HyTronic sensor faucet powered by LTPS (Turbine). It includes a mechanical mixing valve. It delivers 1.5 GPM.
Features
- Includes: 242.755.AB.1
- Includes: 242.757.AB.1
- Includes: 1020-006JKABNF
- Includes: 242.433.00.1T
- Includes: 243.868.00.1
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet uses Chicago Faucets' Long Term Power System (LTPS), a self-contained turbine that needs no battery replacement or wiring. Chicago Faucets rates it maintenance-free for 15+ Years (Maintenance-Free).
- Does it include scald protection?
- It has a mechanical mixing valve to blend hot and cold supply, but it is not an ASSE 1070 thermostatic valve. Where code requires certified scald protection, specify a Thermostatic Mixing Valve (ASSE 1070) model instead.
- How long does the water run before it shuts off?
- The sensor holds the water on for 10 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
Specifications
- Type: Touch-free, programmable faucet with above-deck electronics
- Pack Quantity: 1
- Warranty: 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: 116.715.AB.4T
- Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61, WaterSense
- Power Source: LTPS (Turbine)
- Run Time (s): 10
- Connectivity: Bluetooth
- Mixing Valve: Mechanical Mixing Valve
- Spout Type: Curved
- Centers: Single-Hole
- Outlet Type: Laminar (Non-Aerating)
- Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Connection: Flexible Supply Hoses
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 116.715.AB.4T | 611943172435 | 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Dimensions
| End Connection | Flexible Supply Hoses | — | — |
Details
| Series | 116 | Device Type | Touch-free, programmable faucet with above-deck electronics |
| Pack Qty | 1 | Options | 242.755.AB.1, 242.757.AB.1, 1020-006JKABNF, 242.433.00.1T, 243.868.00.1 |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Lead time days | 5 | Prop65 | Yes |
| Centers | Single-Hole | Mixing valve | Mechanical Mixing Valve |
| Outlet type | Laminar (Non-Aerating) | Spout type | Curved |
| Connectivity | Bluetooth | Power source | LTPS (Turbine) |
| Run time s | 10 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| CALGreen | NSF-372 |
| NSF-61 | WaterSense |
Compare with similar products





| Series | 116
| 116
| 116
| 116
| 116
| 116
|
| Warranty | 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
|
| Spec Sheet | ||||||
| Device Type | Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | Flexible Supply Hoses
| Flexible Supply Hoses
| Flexible Supply Hoses
| Flexible Supply Hoses
| Flexible Supply Hoses
| Flexible Supply Hoses
|
| Max Temp °F | — | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | 242.755.AB.1, 242.757.AB.1, 1020-006JKABNF, 242.433.00.1T, 243.868.00.1
| 240.723.AB.1, E2805JKABCP, 240.746.AB.1, 242.433.00.1T
| 240.724.AB.1, E2805JKABCP, 242.433.00.1T
| 240.724.AB.1, E39VPJKABCP, 242.433.00.1T
| 240.729.AB.1, E2805JKABCP, 242.433.00.1T
| 240.729.AB.1, E39VPJKABCP, 242.433.00.1T
|
| Min Temp °F | — | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
