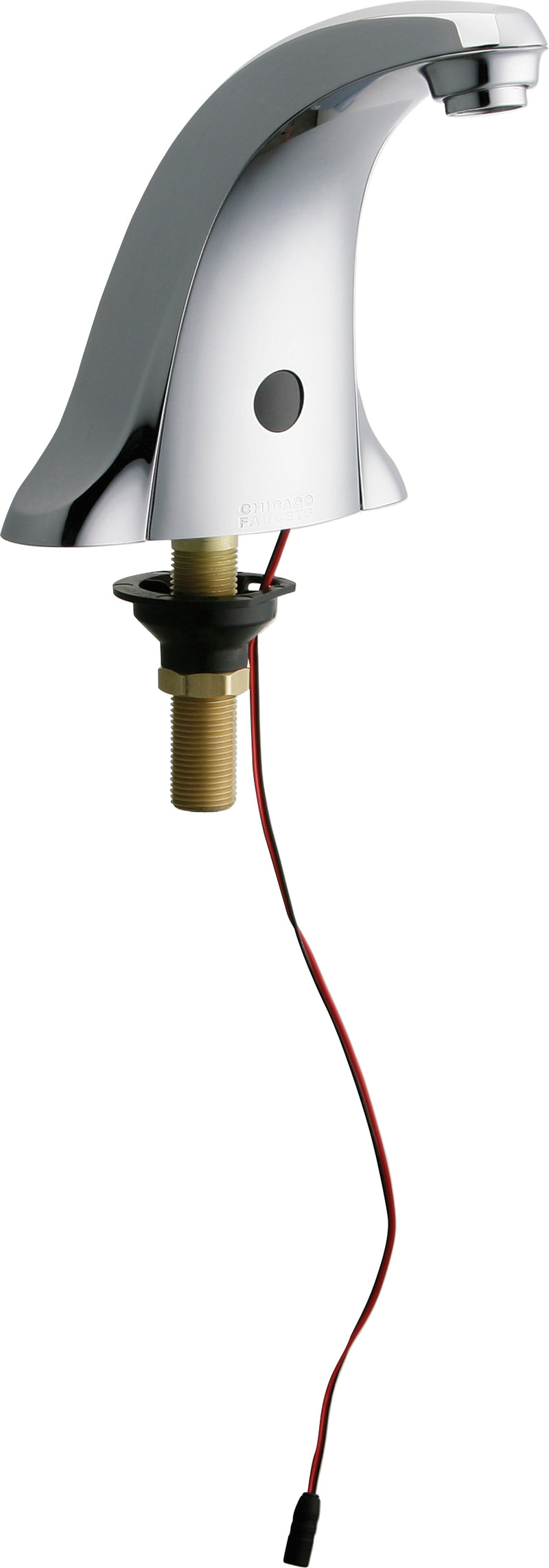

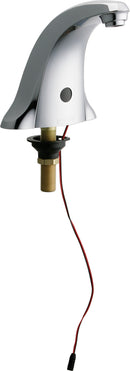

The Chicago Faucets 116.706.AB.MT is a lead-free E-Tronic 40 sensor faucet powered by AC (Plug-In). It delivers 0.5 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 116.706.AB.MT, E-Tronic™ 40 electronic faucet with dual-beam infrared sensor. Master Pack quantity of 4. Traditional-style spout, chrome plated. Single-hole deck mount. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo™, non-aerating spray. Single supply for tempered water. 12-volt AC transformer required (order separately). 242.340.00.1 bank installation adapter wire required (order separately). Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST™ construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Internal Antenna Specifications: Peak Gain of the antenna:
- ─1.7dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC02
- Single-hole
- Vandal Proof Pressure compensating Econo-Flo™ non-aerating laminar spray, 0.5 GPM
- E-Tronic® 40 module kit with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E2805JKABCP
- Includes: 242.337.00.1T
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet is powered by a plug-in AC transformer (12V AC Transformer (Order Separately)).
- How long does the water run before it shuts off?
- The sensor holds the water on for 10 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
-
Type: Touch-free, programmable faucet with above-deck electronics
-
Pack Quantity: 4
-
Warranty: 1-year finish; 3-year electronics and solenoid; 5-year faucet; 5-year mechanical
-
MPN: 116.706.AB.MT
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-61, NSF-372
-
Lead-Free: Yes
-
Power Source: AC (Plug-In)
-
Run Time (s): 10
-
Connectivity: Bluetooth
-
Spout Type: Traditional
-
Centers: Single-Hole
-
Outlet Type: Laminar (Non-Aerating)
-
Pressure Compensating: Yes
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 0.5
-
Vandal Resistant: Yes
-
Max Operating Pressure (PSI): 125
-
Quick Ship: Yes
-
Lead Time (days): 3
