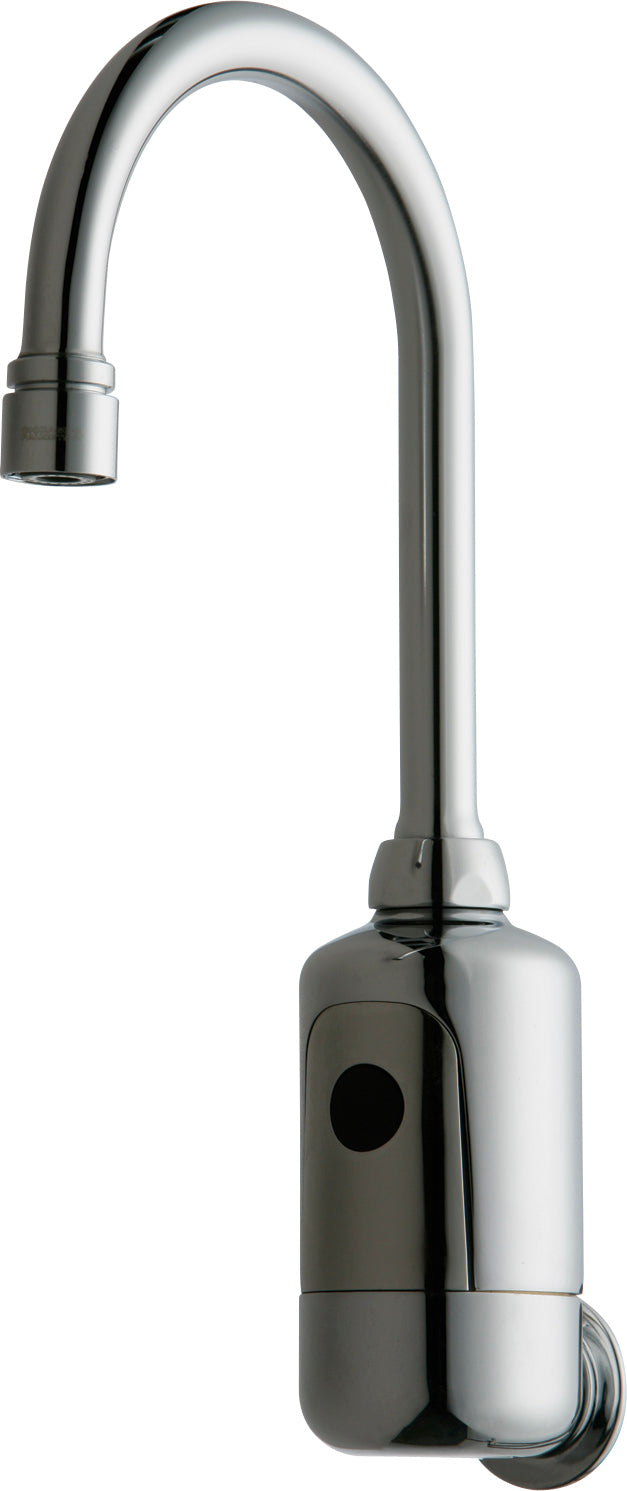

Chicago Faucets 116.689.AB.1T Lead-Free HyTronic Sensor Faucet

SKU: 116.689.AB.1T
Price:
Sale price$1,154.23 Regular price$1,596.13
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $1,154.23

Free shipping over $200

Key Features

Type Touch-free, programmable faucet with above-deck electronics
Power Source AC (Plug-In)
Mixing Mechanical Mixing Valve
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets 116.689.AB.1T is a lead-free HyTronic sensor faucet powered by AC (Plug-In). It includes a mechanical mixing valve. It delivers 0.35 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 116.689.AB.1T, HyTronic electronic faucet with dual-beam infrared sensor, chrome plated. Single-hole wall mount. Rigid/swing gooseneck spout, 5-1/4" center-to-center. 0.35 GPM (1.3 L/min) vandal-proof, non-aerating spray. Includes optional 1.5 GPM (5.7 L/min) insert. Dual supply for hot and cold water service. 12-volt AC transformer required (order separately). Integrated Emergency Backup Power System (EBPS) for long term protection against power outages. Flexible supply hoses included. Concealed, internal temperature control mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant.

Features

  • Includes optional 1.5 GPM (5.7 L/min) laminar flow insert
  • Internal Antenna Specifications: Peak Gain of the antenna: ─5.47 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC01
  • Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
  • Faucets CF Connect App.
  • Single-hole
  • 5-1/4" Rigid/swing gooseneck spout
  • Vandal Proof Pressure compensating Econo-Flo™ non-aerating outlet, 0.35 GPM
  • HyTronic® module kit with Bluetooth® communication
  • ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
  • Complies with the requirements of the Buy American Act of 1933.
  • CFNow! Item Ships in 3 Days
  • Includes: GN2AH8JKABCP
  • Includes: E38VPJKABCP
  • Includes: 242.433.00.1T
  • Includes: EBPS-001JKNF

Common Questions

How is this faucet powered, and what is the battery life?
This faucet is powered by a plug-in AC transformer (12V AC Transformer (Order Separately)).
Does it include scald protection?
It has a mechanical mixing valve to blend hot and cold supply, but it is not an ASSE 1070 thermostatic valve. Where code requires certified scald protection, specify a Thermostatic Mixing Valve (ASSE 1070) model instead.
Is this faucet ADA compliant?
Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
Is this faucet lead-free?
Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.

Specifications

  • Type: Touch-free, programmable faucet with above-deck electronics
  • Pack Quantity: 1
  • Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
  • MPN: 116.689.AB.1T
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
  • Lead-Free: Yes
  • Power Source: AC (Plug-In)
  • Connectivity: Bluetooth
  • Mixing Valve: Mechanical Mixing Valve
  • Spout Type: Gooseneck
  • Spout Reach (in): 5.25
  • Centers: Single-Hole
  • Outlet Type: Laminar (Non-Aerating)
  • Pressure Compensating: Yes
  • Mount Type: Wall-Mount
  • Finish: Polished Chrome
  • Flow Rate (GPM): 0.35
  • Connection: Flexible Supply Hoses
  • Vandal Resistant: Yes
  • Max Operating Pressure (PSI): 125
  • Quick Ship: Yes
  • Lead Time (days): 3

Product Information

SKUUPCWarrantySpec Sheet
116.689.AB.1T 611943174309 Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical Download

Dimensions

End Connection Flexible Supply Hoses ——

Details

Series 116 Device Type Touch-free, programmable faucet with above-deck electronics
Lead Free Yes Max Temp °F 140.0 °F
Pack Qty 1 Options GN2AH8JKABCP, E38VPJKABCP, 242.433.00.1T, EBPS-001JKNF
Min Temp °F 40.0 °F Baa USA
Coating Polished Chrome Flow rate gpm 0.35 GPM
Lead time days 3 Mount type Wall-Mount
Operating pressure max psi 125.0 PSI Prop65 Yes
Quick ship Yes Vandal resistant Yes
Centers Single-Hole Mixing valve Mechanical Mixing Valve
Outlet type Laminar (Non-Aerating) Pressure compensating Yes
Spout reach in 5.25 Spout type Gooseneck
Connectivity Bluetooth Power source AC (Plug-In)

Certifications & Standards

ASME A112.18.1/CSA B125.1 ADA
CALGreen NSF-372
NSF-61 —
