The Chicago Faucets 116.684.AB.1T is a lead-free HyTronic sensor faucet powered by AC (Plug-In). It includes a mechanical mixing valve. It delivers 1.5 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

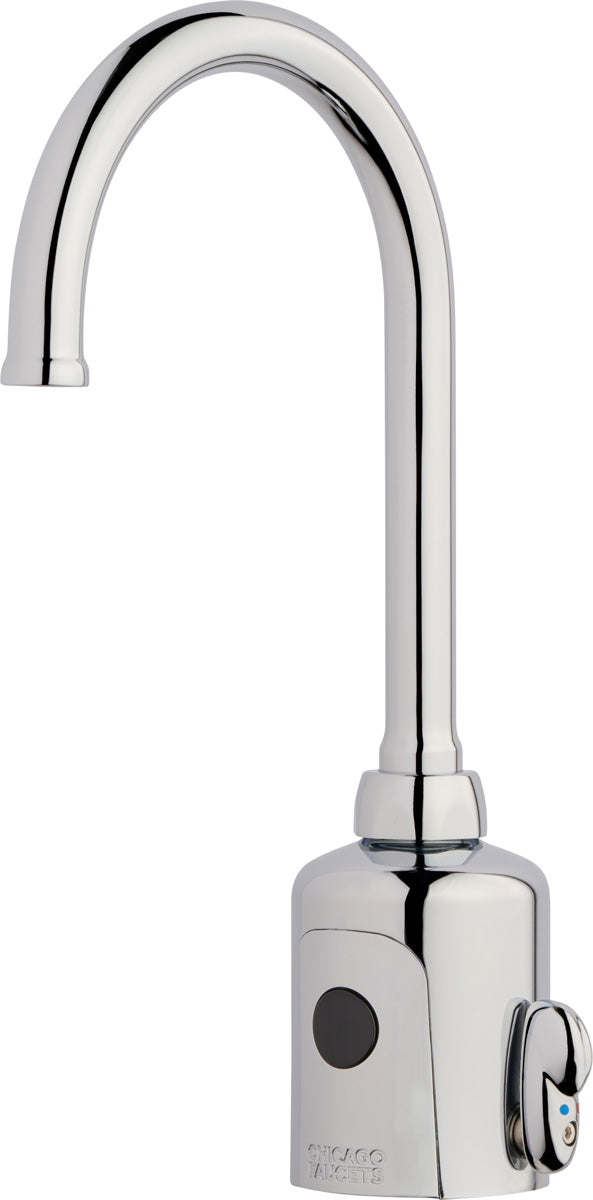

Chicago Faucets No. 116.684.AB.1T, HyTronic electronic faucet with dual-beam infrared sensor, chrome plated. Rigid/swing gooseneck spout, 5-1/4" center-to-center, with 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet. Dual supply for hot and cold water service. 12-volt AC transformer required (order separately). Integrated Emergency Backup Power System (EBPS) for long term protection against power outages. Flexible supply hoses included. User-adjustable temperature control mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant.
Features
- 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet
- Internal Antenna Specifications: Peak Gain of the antenna: ─5.47 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC01
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Single-hole (4" and 8" deck plates available, see Accessories)
- 5-1/4" Rigid/swing gooseneck spout with 1.5 GPM flow control
- User temperature control handle kit, rounded
- HyTronic® module kit with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
- Includes: GN2H8FCJKABCP
- Includes: 240.746.AB.1
- Includes: 242.433.00.1T
- Includes: EBPS-001JKNF
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet is powered by a plug-in AC transformer (12V AC Transformer (Order Separately)).
- Does it include scald protection?
- It has a mechanical mixing valve to blend hot and cold supply, but it is not an ASSE 1070 thermostatic valve. Where code requires certified scald protection, specify a Thermostatic Mixing Valve (ASSE 1070) model instead.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
-
Type: Touch-free, programmable faucet with above-deck electronics
-
Pack Quantity: 1
-
Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
-
MPN: 116.684.AB.1T
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-61, NSF-372, WaterSense
-
Lead-Free: Yes
-
Power Source: AC (Plug-In)
-
Connectivity: Bluetooth
-
Mixing Valve: Mechanical Mixing Valve
-
Spout Type: Gooseneck
-
Spout Reach (in): 5.25
-
Centers: Single-Hole
-
Outlet Type: Laminar (Non-Aerating)
-
Finish: Polished Chrome
-
Flow Rate (GPM): 1.5
-
Connection: Flexible Supply Hoses
-
Max Operating Pressure (PSI): 125
-
Quick Ship: Yes
-
Lead Time (days): 3
