Specifications
Description

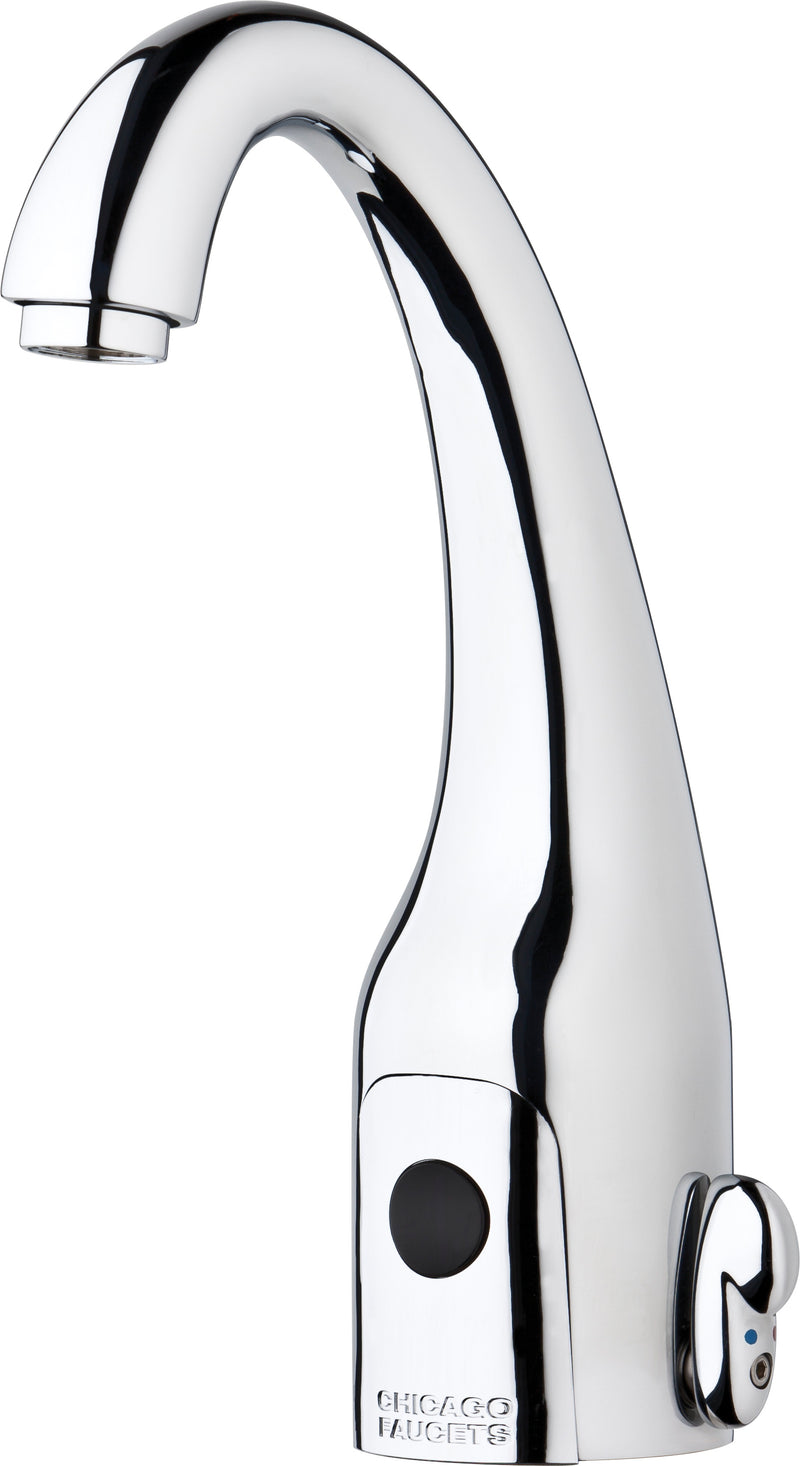

The Chicago Faucets 116.672.AB.1T is a lead-free HyTronic sensor faucet powered by AC (Plug-In). It includes a mechanical mixing valve. It delivers 1.5 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 116.672.AB.1T, HyTronic electronic faucet with dual-beam infrared sensor. Curve spout, chrome plated. Single-hole, deck mount. 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet. Vandal-proof, non-aerating, laminar flow stream solidifier in outlet. Dual supply for hot and cold water service. 12-volt AC transformer required (order separately). Integrated Emergency Backup Power System (EBPS) for long term protection against power outages. Flexible supply hoses included. User-adjustable temperature control mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant.
Features
- 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet
- Internal Antenna Specifications: Peak Gain of the antenna: ─5.47 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC01
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Single-hole (4" and 8" deck plates available, see Accessories)
- HyTronic® Curve spout, 1.5 GPM flow control, user temp control
- Vandal Proof Non-aerating laminar stream straightener outlet for
- HyTronic® Series
- Flow control insert, 1.5 GPM
- User temperature control handle kit, rounded
- HyTronic® module kit with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
- Includes: 242.798.AB.1
- Includes: 242.757.AB.1
- Includes: 1020-006JKABNF
- Includes: 240.746.AB.1
- Includes: 242.433.00.1T
- Includes: EBPS-001JKNF
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet is powered by a plug-in AC transformer (12V AC Transformer (Order Separately)).
- Does it include scald protection?
- It has a mechanical mixing valve to blend hot and cold supply, but it is not an ASSE 1070 thermostatic valve. Where code requires certified scald protection, specify a Thermostatic Mixing Valve (ASSE 1070) model instead.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
- Type: Touch-free, programmable faucet with above-deck electronics
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: 116.672.AB.1T
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61, WaterSense
- Lead-Free: Yes
- Power Source: AC (Plug-In)
- Connectivity: Bluetooth
- Mixing Valve: Mechanical Mixing Valve
- Spout Type: Curved
- Centers: Single-Hole
- Outlet Type: Laminar (Non-Aerating)
- Mount Type: Deck-Mount
- Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Connection: Flexible Supply Hoses
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 116.672.AB.1T | 611943172213 | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Dimensions
| End Connection | Flexible Supply Hoses | — | — |
Details
| Series | 116 | Device Type | Touch-free, programmable faucet with above-deck electronics |
| Lead Free | Yes | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | 242.798.AB.1, 242.757.AB.1, 1020-006JKABNF, 240.746.AB.1, 242.433.00.1T, EBPS-001JKNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Lead time days | 3 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Centers | Single-Hole | Mixing valve | Mechanical Mixing Valve |
| Outlet type | Laminar (Non-Aerating) | Spout type | Curved |
| Connectivity | Bluetooth | Power source | AC (Plug-In) |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| CALGreen | NSF-372 |
| NSF-61 | WaterSense |
Compare with similar products






| Series | 116
| 116
| 116
| 116
| 116
| 116
|
| Warranty | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
|
| Spec Sheet | ||||||
| Device Type | Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Flexible Supply Hoses
| Flexible Supply Hoses
| — | — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | 242.798.AB.1, 242.757.AB.1, 1020-006JKABNF, 240.746.AB.1, 242.433.00.1T, EBPS-001JKNF
| 240.723.AB.1, E2805JKABCP, 240.746.AB.1, 242.433.00.1T
| 240.724.AB.1, E2805JKABCP, 242.433.00.1T
| 240.724.AB.1, E39VPJKABCP, 242.433.00.1T
| 240.729.AB.1, E2805JKABCP, 242.433.00.1T
| 240.729.AB.1, E39VPJKABCP, 242.433.00.1T
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
