The Chicago Faucets 116.658.AB.4T is a lead-free HyTronic sensor faucet powered by LTPS (Turbine). It delivers 1.5 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

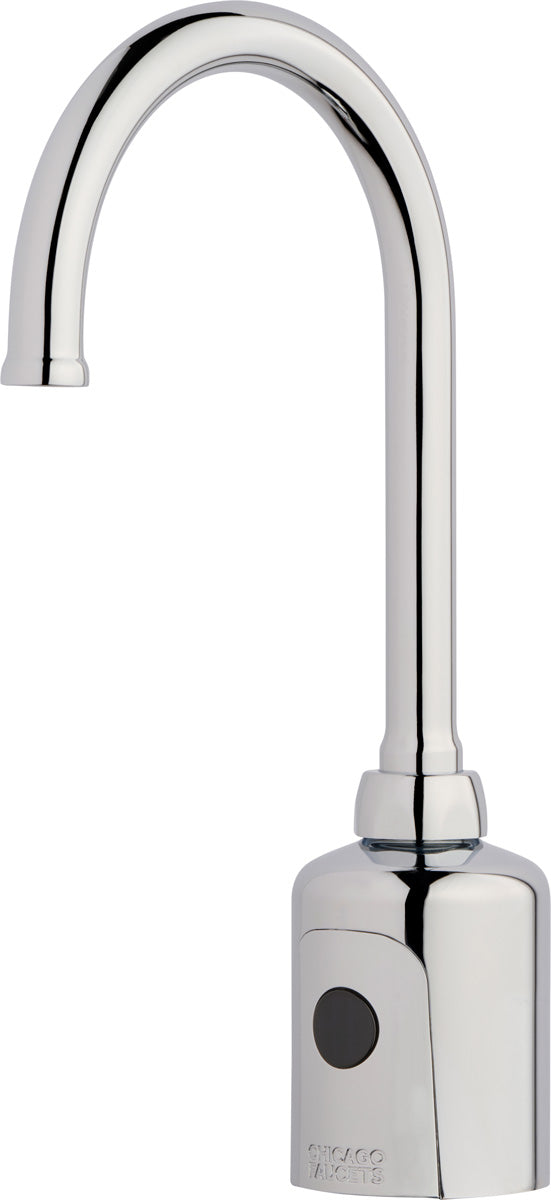

Chicago Faucets No. 116.658.AB.4T, HyTronic® electronic faucet with dual-beam infrared sensor, chrome plated. Rigid/swing gooseneck spout, 5-1/4" center-to-center, with 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet. Single supply for tempered water. Powered by Long Term Power System (LTPS) - provides maintenance-free power for 15 years or more, depending on usage. Flexible supply hose included. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- Internal Antenna Specifications: Peak Gain of the antenna: ─5.47 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC01
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Single-hole (4" and 8" deck plates available, see Accessories)
- 5-1/4" Rigid/swing gooseneck spout with 1.5 GPM flow control
- HyTronic® module kit with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2H8FCJKABCP
- Includes: 242.433.00.1T
- Includes: 243.868.00.1
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet uses Chicago Faucets' Long Term Power System (LTPS), a self-contained turbine that needs no battery replacement or wiring. Chicago Faucets rates it maintenance-free for 15+ Years (Maintenance-Free).
- Does it include scald protection?
- No. This model has no mixing valve -- it runs on a single supply of already-tempered water, or delivers whichever single supply it is piped to. Mix hot and cold ahead of the faucet if the application needs a controlled temperature.
- How long does the water run before it shuts off?
- The sensor holds the water on for 10 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
-
Type: Touch-free, programmable faucet with above-deck electronics
-
Pack Quantity: 1
-
Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
-
MPN: 116.658.AB.4T
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61, WaterSense
-
Lead-Free: Yes
-
Power Source: LTPS (Turbine)
-
Run Time (s): 10
-
Connectivity: Bluetooth
-
Mixing Valve: No Mixing Valve
-
Spout Type: Gooseneck
-
Spout Reach (in): 5.25
-
Centers: Single-Hole
-
Outlet Type: Laminar (Non-Aerating)
-
Finish: Polished Chrome
-
Flow Rate (GPM): 1.5
-
Max Operating Pressure (PSI): 125
-
Lead Time (days): 5
