Specifications
Description
The Chicago Faucets 1029-ABCP is a lead-free loose-key multi-turn angle water supply stop. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

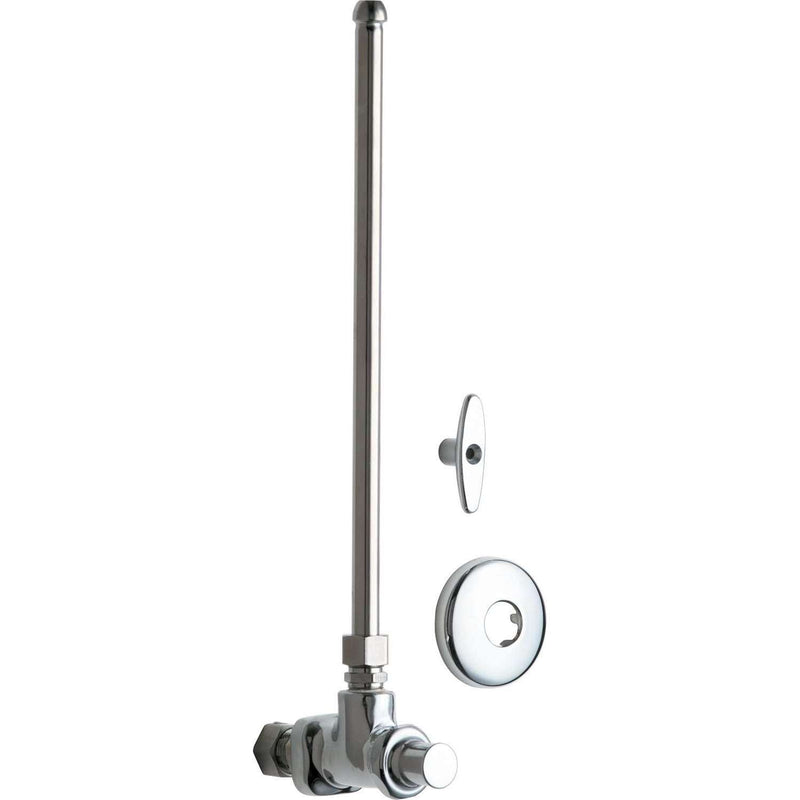

Chicago Faucets No. 1029-ABCP, Angle Stop Fitting with supply tube and loose key, chrome plated. 2-1/4" metal tee handle with square, tapered broach. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 5/8" O.D. compression inlet and 3/8" O.D. female compression outlet. Slip wall flange. 3/8" O.D. x 12" bullnose flexible supply riser. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- Includes wall flange
- Compression valve
- 12" bullnose flexible supply riser, loose key handle
- Vandal Proof 2-1/4" Tee handle
- Slow compression operating cartridge, left-hand
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 293-006JKRCF
- Includes: 217-XTLHJKABNF
Common Questions
- What does "loose key" mean on this stop?
- The handle is a removable tee-shaped key, not a permanently attached wheel or lever -- the public cannot turn the stop off without the matching key. That makes it the standard choice for restrooms and other public or multi-tenant spaces where an on-site fixture needs to stay tamper-resistant.
- Is this a quarter-turn or a multi-turn stop?
- Multi-turn. It uses a rebuildable slow-compression cartridge that opens and closes through a full 360° for fine adjustment, closing against water pressure -- the traditional stop mechanism, not a quarter-turn ball valve.
- Is this vandal-resistant?
- Yes -- Chicago states this model is vandal-proof construction, built for public-facing installations where the handle assembly needs to resist force, not just casual operation.
- What is included in the box?
- This stop ships as a complete fitting: Wall Flange, 12" Flexible Supply Riser.
- What pressure is this rated for?
- 20-125 PSI supply pressure, per Chicago's published rating for this model.
Specifications
- Type: Angle stop
- Outlet Size: 3/8"
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 1029-ABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61
- Lead-Free: Yes
- Turn Type: Multi-Turn
- Includes: Wall Flange;12" Flexible Supply Riser
- Outlet Connection: OD Compression
- Body Pattern: Angle
- Handle Style: Loose Key
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 1029-ABCP | 611943570057 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Outlet Size | 3/8" | — | — |
Details
| Series | 1029 | Device Type | Angle stop |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Options | 293-006JKRCF, 217-XTLHJKABNF | Min Temp °F | 40.0 °F |
| Turn Type | Multi-Turn | Outlet Connection Type | OD Compression |
| Includes | Wall Flange, 12" Flexible Supply Riser | Baa | USA |
| Body pattern | Angle | Coating | Polished Chrome |
| Handle style | Loose Key | Lead time days | 5 |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
Compare with similar products
| Turn Type | Multi-Turn
| Multi-Turn
| Multi-Turn
| Multi-Turn
| Multi-Turn
| Multi-Turn
|
| Inlet Connection Type | — | Sweat
| Sweat
| Sweat
| Sweat
| Sweat
|
| Outlet Connection Type | OD Compression
| OD Compression
| OD Compression
| OD Compression
| OD Compression
| OD Compression
|
| Series | 1029
| STC
| STC
| STC
| STC
| STC
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Device Type | Angle stop
| Angle stop
| Angle stop
| Angle stop
| Angle stop
| Angle stop
|
| Outlet Size | 3/8"
| 3/8"
| 3/8"
| 3/8"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 2
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
