Chicago Faucets 1013-CSTABCP High-temperature angle stop

SKU: 1013-CSTABCP
Price:
Sale price$201.80 Regular price$279.07
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $201.80

Free shipping over $200

Key Features

Turn Type Multi-Turn
Inlet Size 1/2"
Outlet Size 3/8"
Type High-temperature angle stop
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

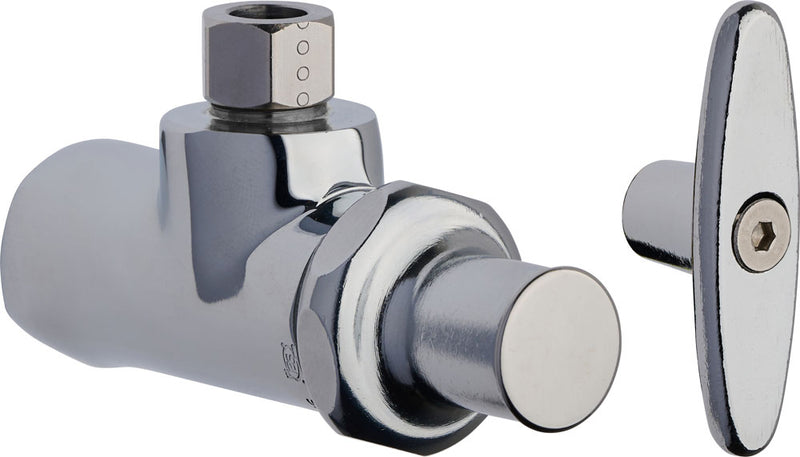

The Chicago Faucets 1013-CSTABCP is a 1/2" loose-key multi-turn angle water supply stop with a 1/2" FNPT inlet and a 3/8" OD Compression outlet.

Features

  • Includes: 293-006JKRCF
  • Includes: 376-CXSTJKABNF

Common Questions

What does "loose key" mean on this stop?
The handle is a removable tee-shaped key, not a permanently attached wheel or lever -- the public cannot turn the stop off without the matching key. That makes it the standard choice for restrooms and other public or multi-tenant spaces where an on-site fixture needs to stay tamper-resistant.
Is this a quarter-turn or a multi-turn stop?
Multi-turn. It uses a rebuildable slow-compression cartridge that opens and closes through a full 360° for fine adjustment, closing against water pressure -- the traditional stop mechanism, not a quarter-turn ball valve.
What connections does this stop have?
1/2" FNPT on the inlet (to the building supply) and 3/8" OD Compression on the outlet (to the fixture supply line).

Specifications

  • Type: High-temperature angle stop
  • Inlet Size: 1/2"
  • Outlet Size: 3/8"
  • Pack Quantity: 1
  • Warranty: 1-year finish; 5-year cartridge
  • MPN: 1013-CSTABCP
  • Certifications: ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
  • Turn Type: Multi-Turn
  • Inlet Connection: FNPT
  • Outlet Connection: OD Compression
  • Body Pattern: Angle
  • Handle Style: Loose Key
  • Finish: Polished Chrome
  • Lead Time (days): 5

Product Information

SKUUPCWarranty
1013-CSTABCP 611943157029 1-year finish; 5-year cartridge

Dimensions

Inlet Size 1/2" Outlet Size 3/8"

Details

Series 1013 Device Type High-temperature angle stop
Pack Qty 1 Options 293-006JKRCF, 376-CXSTJKABNF
Turn Type Multi-Turn Inlet Connection Type FNPT
Outlet Connection Type OD Compression Body pattern Angle
Coating Polished Chrome Handle style Loose Key
Lead time days 5 Prop65 Yes

Certifications & Standards

ASME A112.18.1/CSA B125.1 NSF-372
NSF-61 —

Compare with similar products

Turn Type
Multi-Turn
Multi-Turn
Multi-Turn
Multi-Turn
Multi-Turn
Multi-Turn
Inlet Connection Type
FNPT
Sweat
Sweat
Sweat
Sweat
Sweat
Outlet Connection Type
OD Compression
OD Compression
OD Compression
OD Compression
OD Compression
OD Compression
Series
1013
STC
STC
STC
STC
STC
Warranty
1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Spec Sheet
—
Device Type
High-temperature angle stop
Angle stop
Angle stop
Angle stop
Angle stop
Angle stop
Outlet Size
3/8"
3/8"
3/8"
3/8"
1/2"
1/2"
Lead Free
—
Yes
Yes
Yes
Yes
Yes
Body Material
—
Brass
Brass
Brass
Brass
Brass
Max Temp °F
—
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
Certifications
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
Pack Qty
1
1
2
1
1
1
Min Temp °F
—
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
