The Chicago Faucets 1010-ABCP is a 3/8" lead-free loose-key multi-turn angle water supply stop with a 3/8" FNPT inlet and a 1/4" FNPT outlet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

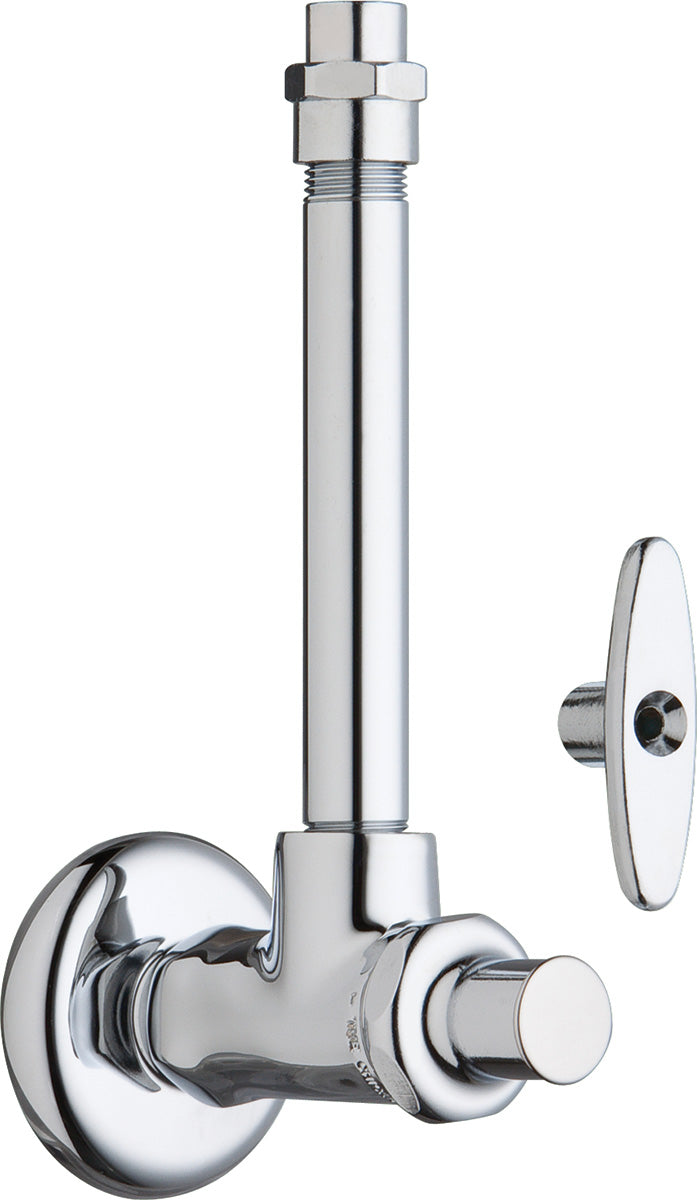

Chicago Faucets No. 1010-ABCP, Angle Stop Fitting with supply tube and loose key, chrome plated. 2-1/4" metal tee handle with square, tapered broach. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 3/8" NPT female thread inlet. Slip wall flange with set screw. Rigid supply riser with 1/4" NPT female outlet. ECAST® construction with less than 0.25% lead content by weighted average.
Features
- Includes wall flange
- Compression valve
- Rigid supply riser, loose key handle
- Vandal Proof 2-1/4" Tee handle
- Slow compression operating cartridge, left-hand
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 293-006JKRCF
- Includes: 217-XTLHJKABNF
Common Questions
- What does "loose key" mean on this stop?
- The handle is a removable tee-shaped key, not a permanently attached wheel or lever -- the public cannot turn the stop off without the matching key. That makes it the standard choice for restrooms and other public or multi-tenant spaces where an on-site fixture needs to stay tamper-resistant.
- Is this a quarter-turn or a multi-turn stop?
- Multi-turn. It uses a rebuildable slow-compression cartridge that opens and closes through a full 360° for fine adjustment, closing against water pressure -- the traditional stop mechanism, not a quarter-turn ball valve.
- What connections does this stop have?
- 3/8" FNPT on the inlet (to the building supply) and 1/4" FNPT on the outlet (to the fixture supply line).
- Is this vandal-resistant?
- Yes -- Chicago states this model is vandal-proof construction, built for public-facing installations where the handle assembly needs to resist force, not just casual operation.
- What is included in the box?
- This stop ships as a complete fitting: Wall Flange, Rigid Supply Riser.
- What pressure is this rated for?
- 20-125 PSI supply pressure, per Chicago's published rating for this model.
Specifications
-
Type: Angle stop
-
Inlet Size: 3/8"
-
Outlet Size: 1/4"
-
Body Material: Brass
-
Pack Quantity: 1
-
Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
-
MPN: 1010-ABCP
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1, NSF-61
-
Lead-Free: Yes
-
Turn Type: Multi-Turn
-
Includes: Wall Flange;Rigid Supply Riser
-
Inlet Connection: FNPT
-
Outlet Connection: FNPT
-
Body Pattern: Angle
-
Handle Style: Loose Key
-
Finish: Polished Chrome
-
Vandal Resistant: Yes
-
Max Operating Pressure (PSI): 125
-
Lead Time (days): 5
