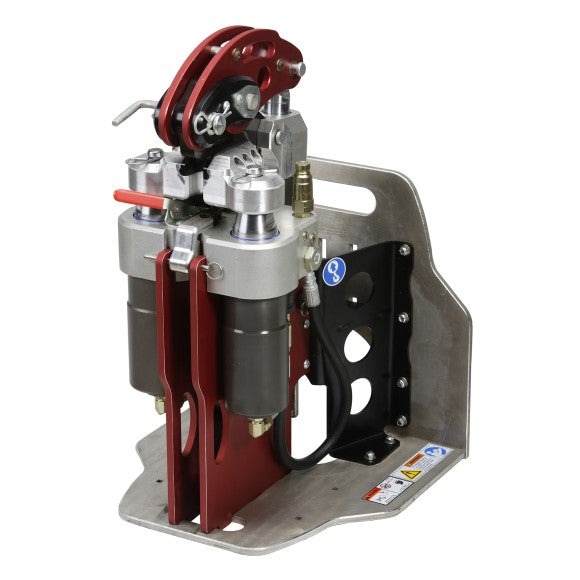

Spartan Tool Undertaker Complete System 8200000C

This trenchless pipe repair and replacement system allows 2"-6" pipe replacement With up to three 45-degree bends in the pipe and can even upsize from 4" to 6" pipes.

• Bursts 2' -- 6' pipes of virtually any material
• Replaces existing pipe with seamless HDPE pipe
• Can be operated with the auxiliary hydraulic system of your backhoe, skid steer, or mini excavator
• Puller generates up to 30 tons of lateral pulling force through the wire rope to the bursting head
• Constructed of durable high grade anodized aluminum
• Customer length pulling ropes up to 200' are available
• Optional 2' and 3' bursting heads and fusion machine inserts are available
• The 4' to 6' fusion machine seats sections of four or six inch HDPE pipe in twin collars, allowing smooth trimming with the included circular cutting saw
• Operating power unit via a 25 foot long hand held pendant style remote control
• Power supply includes all the quick attach hydraulic connections required for the system and forty feet of hydraulic hose that allows maximum job site flexibility
• The quick grip bursting head is capable of breaking through pipes made from any common material: clay tile, cast iron, Orangeburg, PVC or ABS

• Pipe sizes: 4' and 6' standard; 2' and 3' options available
• Hose sizes: 2- 40' hydraulic hoses (from puller to power unit)
• Weight: 210 lbs. (3 separate components - no component weighs more than 70 lbs.)
• Power Supply: 13 H.P. Honda with electric start, supplying 3,000 PSI at 5 GPM
• Power Supply Dimensions: 26.5' L X 20' W X 27.5' H mounted on 10' pneumatic tires
• 5-gallon hydraulic reservoir
• Hydraulic tank sight gauge
• Low-engine-oil shut down
• Hour meter
• HTMA hydraulic couplings
• Flush mounted operating pressure gauge
• Hydraulic puller unit dimensions: 22' L X 22' W X 32.5' H
• Operates at 3 á/ 10 GPM hydraulic flow 200' duct rod with carrier (for inserting pulling rope) 4' and 6' fusion machine with pipe locking device and knurled locking handles
• Fusion Machine dimensions: 12'L X 13'W X 19'H
• Facing tool features a reversible drive drill with built in guide assembly capable of facing 4' and 6' pipe without changing cutting dies
• Facing Tool weighs 20 lbs.
• HDPE heating iron with safety storage bag assembly (adjustable temperature with temperature gauge) operates on 110 Volt service
