Description

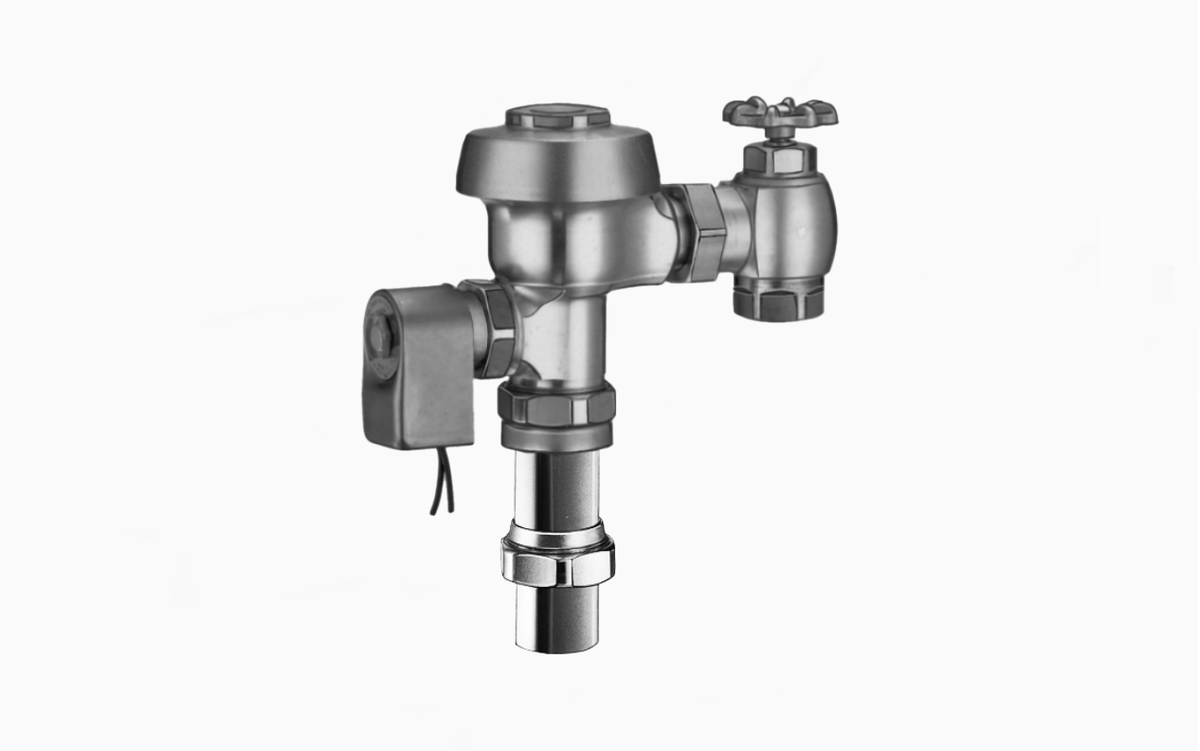

The SLOAN 650 ES-ESM-1.6-RB-24V is a solenoid-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at a concealed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Sloan 650 ES concealed solenoid flushometer with PERMEX diaphragm, chloramine resistance, and ASSE 1037 compliance for commercial water closets.
Options on this configuration: 24V Power (24V). Sloan model number: SLOAN 650 ES-ESM-1.6-RB-24V.
Features
- 1.6 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single Flush, Hardwired, Solenoid-Operated with Modular Plug, 24V
- High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Body Material: Semi-Red Brass
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Solenoid
- MPN: SLOAN 650 ES-ESM-1.6-RB-24V
- Certifications: Buy American Act, IAPMO, UL, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Spud Connection: Top Spud
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: Hardwired AC
- Power Supply Detail: 24V
Dimensions
| Inlet Size | 1" | — | — |
Details
| Series | SLOAN 650 ES | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | High-Chloramine-Resistant PERMEX Diaphragm |
| Operation | Solenoid | Options | 24V Power (24V) |
| Fixture Served | Water Closet | Body style | Concealed |
| Coating | Unfinished (Rough Brass) | Cycle volume gal | 1.6 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Spud connection | Top Spud | Power source | Hardwired AC |
| Power supply detail | 24V | — | — |
Certifications & Standards
| Buy American Act | IAPMO |
| UL | ASSE-1037 |
