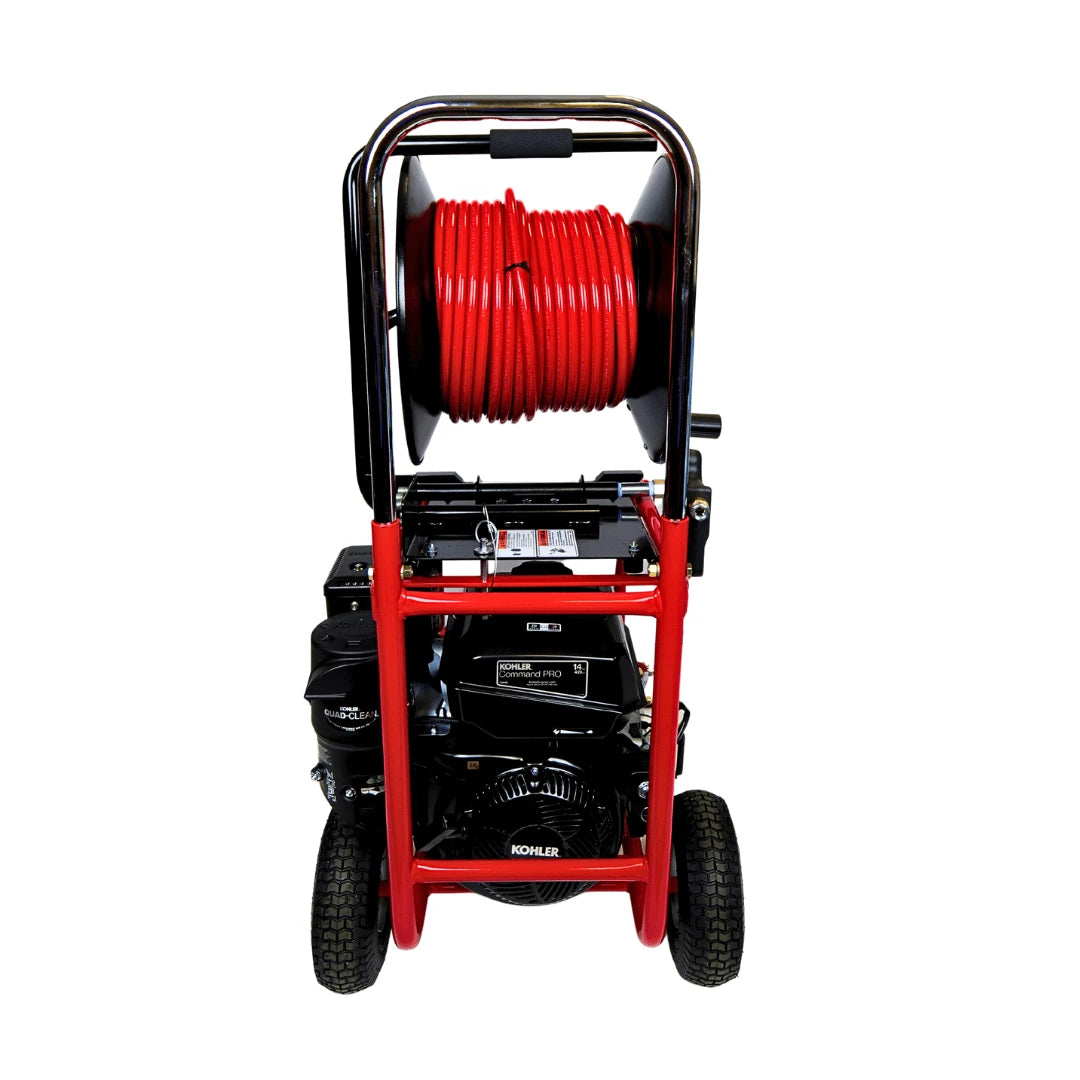

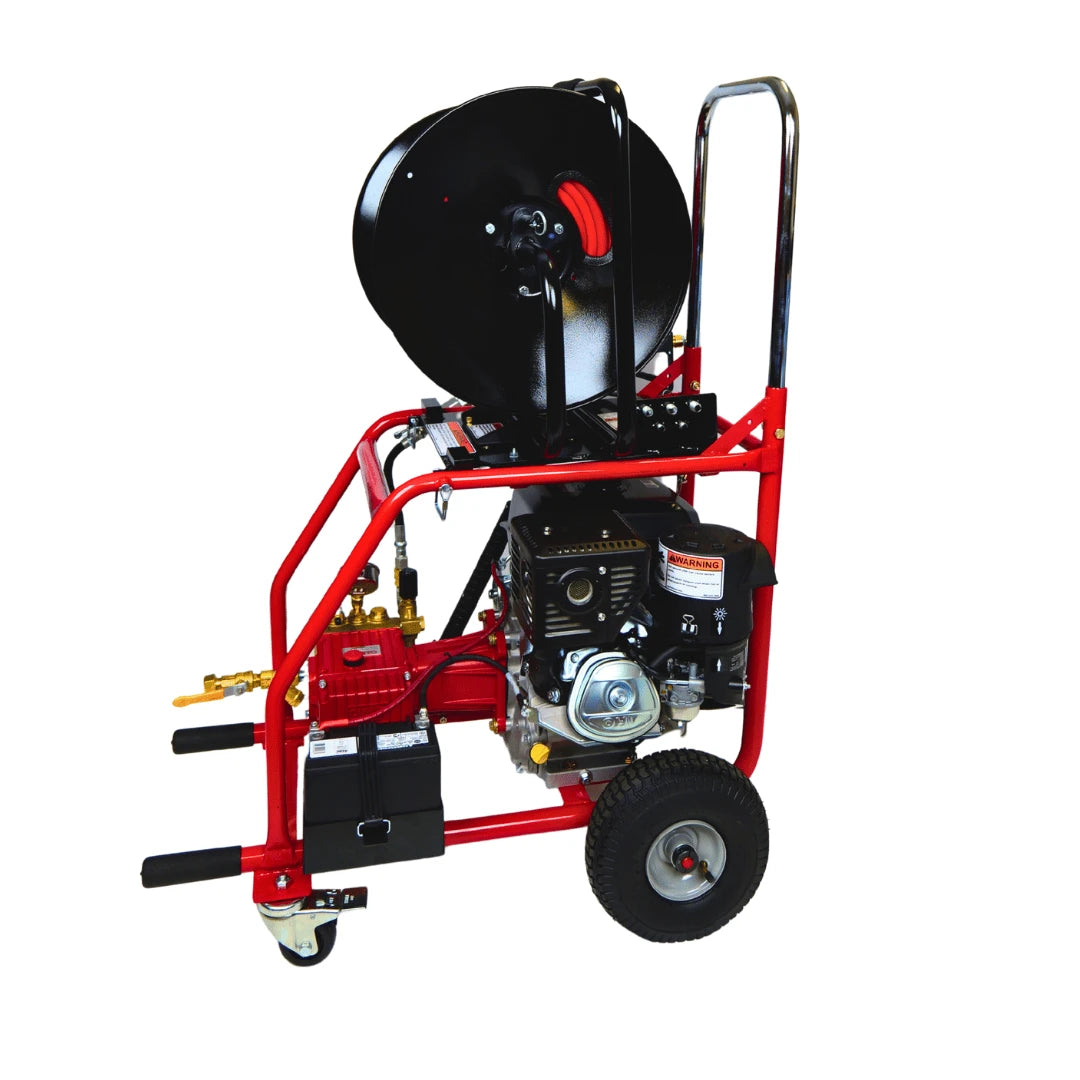

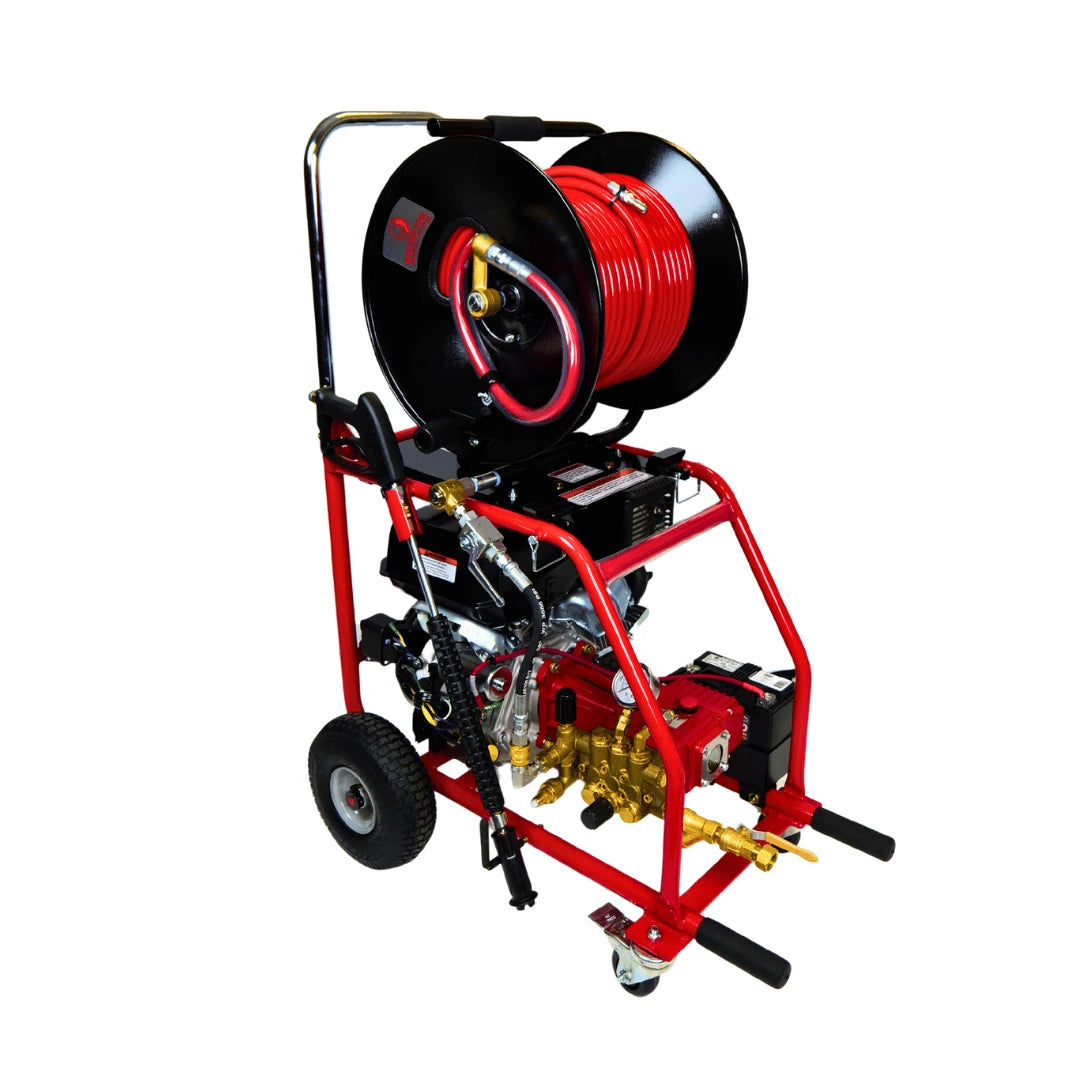

Spartan Tool Model 727 Cart Jetter 72700000

The Spartan Tool Model 727 Cart Jetter is a cart sewer jetter rated 3000 PSI at 4 GPM for 1-1/4" to 6" lines.

It's everything you need when you're in a tight spot. With the power and speed of larger hydro jetters, the Model 727 is ideal for heavy-duty jobs: grease, lime, sand, and sediment. Spartan's patented pulse technology sends a steady stream of pulsation through the hose to help it move directly up and down the line and reduce friction. Add an adjustable pressure regulator for up to 3,000 PSI at 4 GPM and an electric start, direct- drive engine, and you've got all the performance and dependability you expect from a Spartan Tool machine.

Features

• Triplex ceramic plunger pump has adjustable pressure regulator for up to
• Portable power pack can be removed from the cart and used separately in tight spaces
• Patented pulse technology reduces friction, continuously moves hose down

Common Questions

What pipe sizes does this jetter clean?

It is rated for 1-1/4" to 6" lines.

What pressure and flow does it deliver?

3000 PSI at 4 GPM, the pump's rated output.

Is this gas or diesel?

Gas, 14 HP.

What hoses come standard with this unit?

200' of 9/16" high-pressure cleaning hose; 75' of 3/16" thermoplastic trap-cleaning hose

Specifications

• Type: Sewer Jetter
• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 72700000
• Pipe Size Range: 1-1/4" to 6"
• Rated Pressure (PSI): 3000
• Flow Rate (GPM): 4
• Fuel / Power: Gas
• Engine HP: 14
• Standard Hoses: 200' of 9/16" high-pressure cleaning hose 75' of 3/16" thermoplastic trap-cleaning hose
• Pump: Giant
• Engine: Kohler CH440
• Overall Length (in): 23
• Overall Width (in): 35
• Overall Height (in): 37

Technical Data: Model 727

• Pipe sizes: 11/4" to 6"
• Pipe Sizes (manual): Up to 6"
• Max Water Pressure: 3,000 psi
• Max Water Flow: 4 GPM
• Unit Size width: 23
• Unit Size depth: 35
• Unit Size height: 37
• Weight - power unit: 166 lbs.
• Weight - reel with hose: 54 lbs.
• Weight (brochure): 133 lbs
• Engine model: 14 HP, Kohler CH440
• Engine horsepower: 14 HP
• Engine displacement: 429 cc
• Fuel: Gasoline
• Fuel tank capacity: 1.85 gal
• Electric start: Standard
• Cylinders: 1
• Bore & Stroke: 3.5 x 2.7
• Full throttle RPM: 3,200
• Engine oil: SAE 10W30 (1.16 qt capacity)
• Sparkplug: Champion RC12YC
• Cooling: Air
• Battery: 12VDC, 17.5 Amp hour, 310 CCA
• Pump type and make: Triplex Plunger, GIANT
• Pump Max Pressure: 3,000 PSI
• Pump Max Water Output: 4.8 GPM
• Pump Max Temperature: 160°F
• Pump Max RPM: 3,400
• Plungers: 3

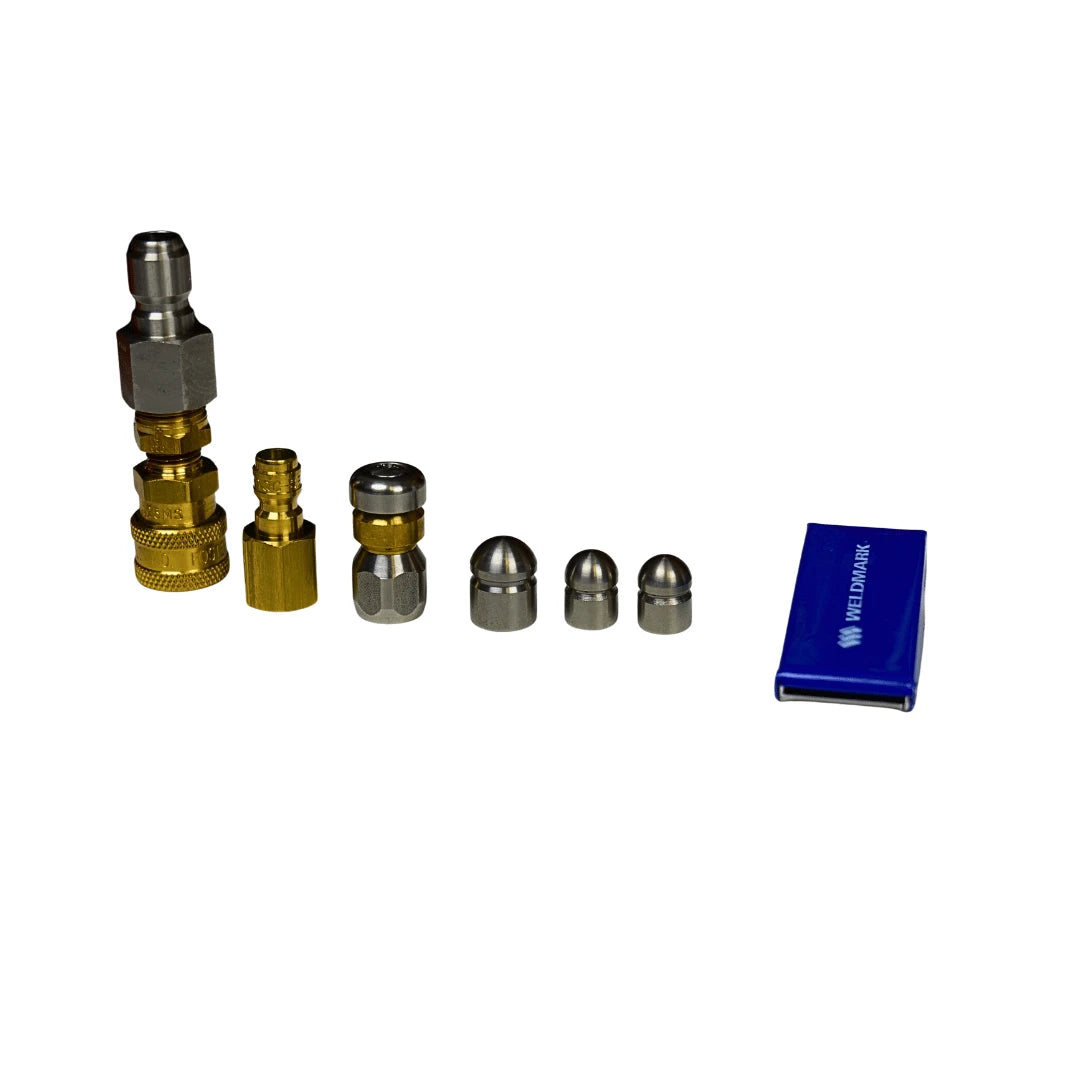

• Nozzles: 5 nozzles and nozzle-cleaning tool included

From Spartan Tool's own documentation (Model 727 brochure, Model727 ProductManual).
