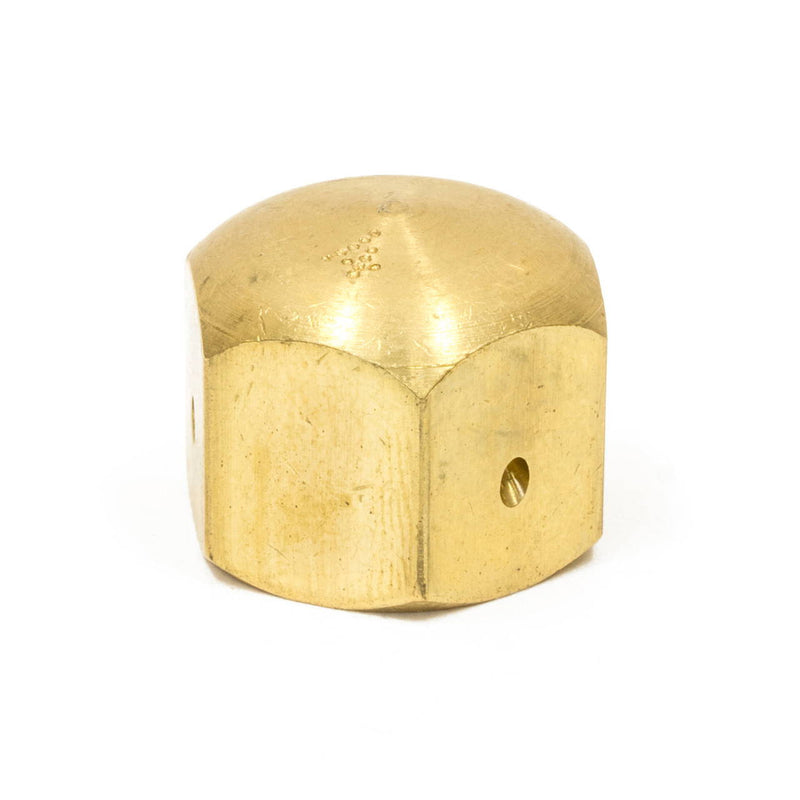

Spartan Tool 1/4" Closed Nozzle, 1,500 PSI @ 2.2 GPM 71108400

The Spartan Tool 1/4" 45-Deg Closed Nozzle is a closed sewer jetter nozzle for 1/4" jetting hose, rated 1,500 PSI at 2.2 GPM, matched to the Model 717.

The Spartan Tool 1/4" 45-Deg Closed Nozzle (71108400) is a high-performance sewer jetter nozzle designed to deliver exceptional cleaning power for a variety of sewer and drain maintenance tasks. Engineered with precision, this nozzle is ideal for pulling hoses further down the line, making it perfect for both general cleaning and tackling tough blockages. Its robust construction ensures durability and reliable performance.

Features

• Optimized
• Angle : 45-degree orifice angle provides maximum pull and enhances cornerability, allowing for efficient maneuvering through bends and curves
• Capability : Operates at 1500 PSI, offering powerful cleaning action to remove stubborn debris and blockages
• Efficient
• Flow : Designed for a flow rate of 2.2 GPM, balancing effective cleaning with water efficiency
• Construction : Built with high-quality materials to withstand the rigors of frequent use in demanding environments
• Versatile
• Application : Suitable for a wide range of sewer and drain cleaning tasks, making it a versatile tool for professionals

Common Questions

What hose or thread size does this nozzle need?

This nozzle is sized for 1/4" jetting hose with NPT threads.

Which Spartan Tool machines does this fit?

Spartan Tool lists this as matched to the Model 717.

Is this the closed or open version?

This is the Closed pattern. Closed nozzles concentrate the jet for long-distance penetration; Open nozzles spread it wider for initial penetration of soft deposits. Check your job before ordering the open pair.

What pressure and flow is this nozzle rated for?

This nozzle is rated 1,500 PSI at 2.2 GPM. Running it well above or below this rating changes the jet pattern and can shorten its life.

Specifications

• Type: Closed
• Hose Size: 1/4"
• Connection: NPT
• MPN: 71108400
• Rated Pressure (PSI): 1500
• Flow Rate (GPM): 2.2
• Jet Angle (deg): 45
• Fits Models: Model 717
