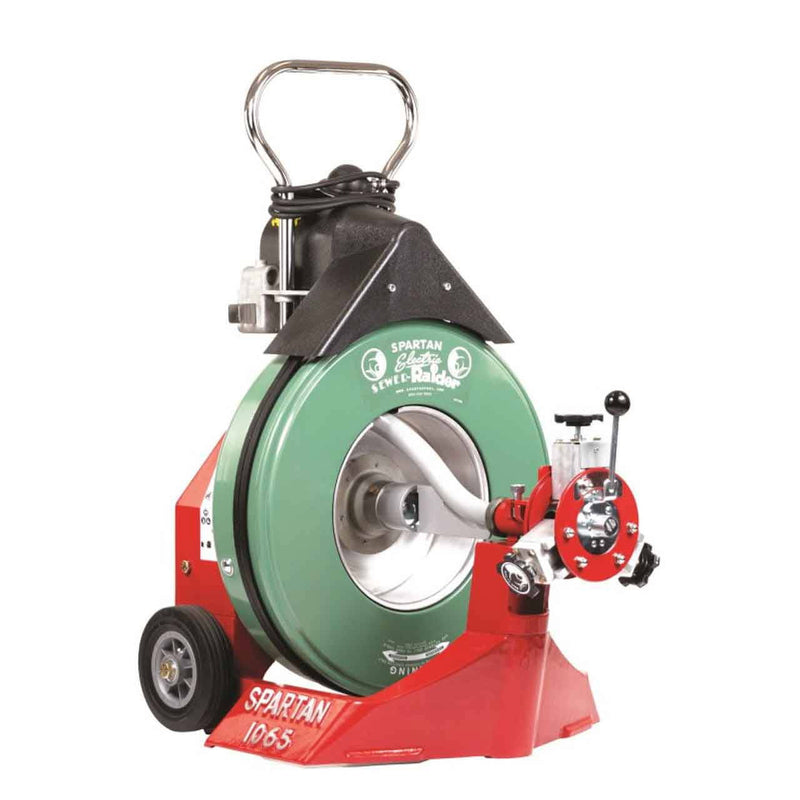

The Spartan Tool Model 1065 Drain Cleaning Machine is a drum machine for 3" to 10" lines. It ships with Drum, Power Cable Feed, Cable Safety Guide and Universal Anchor.
The original super-powered cable machine still reigns supreme. The Model 1065 has all the power you expect from a Spartan machine with a 250' range (with added cable) and the features you need to make even your toughest jobs easier. The patented Dial-A-Cable power feed and blockage- sensing smart motor help you harness the 1065's strength and save valuable work hours. Who says they don't make them like they used to?
Features
- Heavy-duty power for 3" to 10" lines up to 250'
- Permanent Magnet 4/10 HP motor makes Spartan machines the quietest in the industry
- Smart motor senses the need for more power when encountering a difficult blockage
- Patented Dial-A-Cable power feed allows for quick cable changes and feeds cable in and out automatically
- Independent rotating inner drum prevents kinking and buckling that can break cables
- Outer drum keeps dirt contained
- Air-operated foot switch
- Extra-strength lightweight aluminum magnesium composite frame stands up to years of wear and tear
- Cable safety guide between machine and pipe
- 25' power cord with ground fault interrupter
Common Questions
- What pipe sizes does the Model 1065 Drain Cleaning Machine work on?
- The Model 1065 Drain Cleaning Machine is built for 3" to 10" lines.
- Does the Model 1065 Drain Cleaning Machine come with cable?
- No — this is the power unit only ("cable not included" per the catalog). It runs 162' of .66" Magnum or 112' of 3/4" (with anchor/leader cable); cable is sold separately.
- What power does the Model 1065 Drain Cleaning Machine need?
- 120 volt / 4.2 amp.
- What comes in the box with the Model 1065 Drain Cleaning Machine?
- It ships with Drum, Power Cable Feed, Cable Safety Guide and Universal Anchor.
- How much does the Model 1065 Drain Cleaning Machine weigh?
- 166 lbs.
Specifications
-
Warranty: 2 years (Spartan Tool equipment warranty)
-
MPN: 44115804
-
Series: Model 1065
-
Device Type: Drum Machine
-
Pipe Size Range: 3" to 10"
-
Cable Capacity: 162' of .66" Magnum or 112' of 3/4" (with anchor/leader cable)
-
Maximum Run (ft): 250
-
Motor RPM: 220
-
Electrical Requirement: 120 volt / 4.2 amp
-
Overall Length (in): 25.0
-
Overall Width (in): 36.0
-
Overall Height (in): 36.0
-
Spec Sheet: https://spartantool.com/content/data_sheets/Model-1065_manual.pdf
-
Kit Includes: Drum;Power Cable Feed;Cable Safety Guide;Universal Anchor
