Description

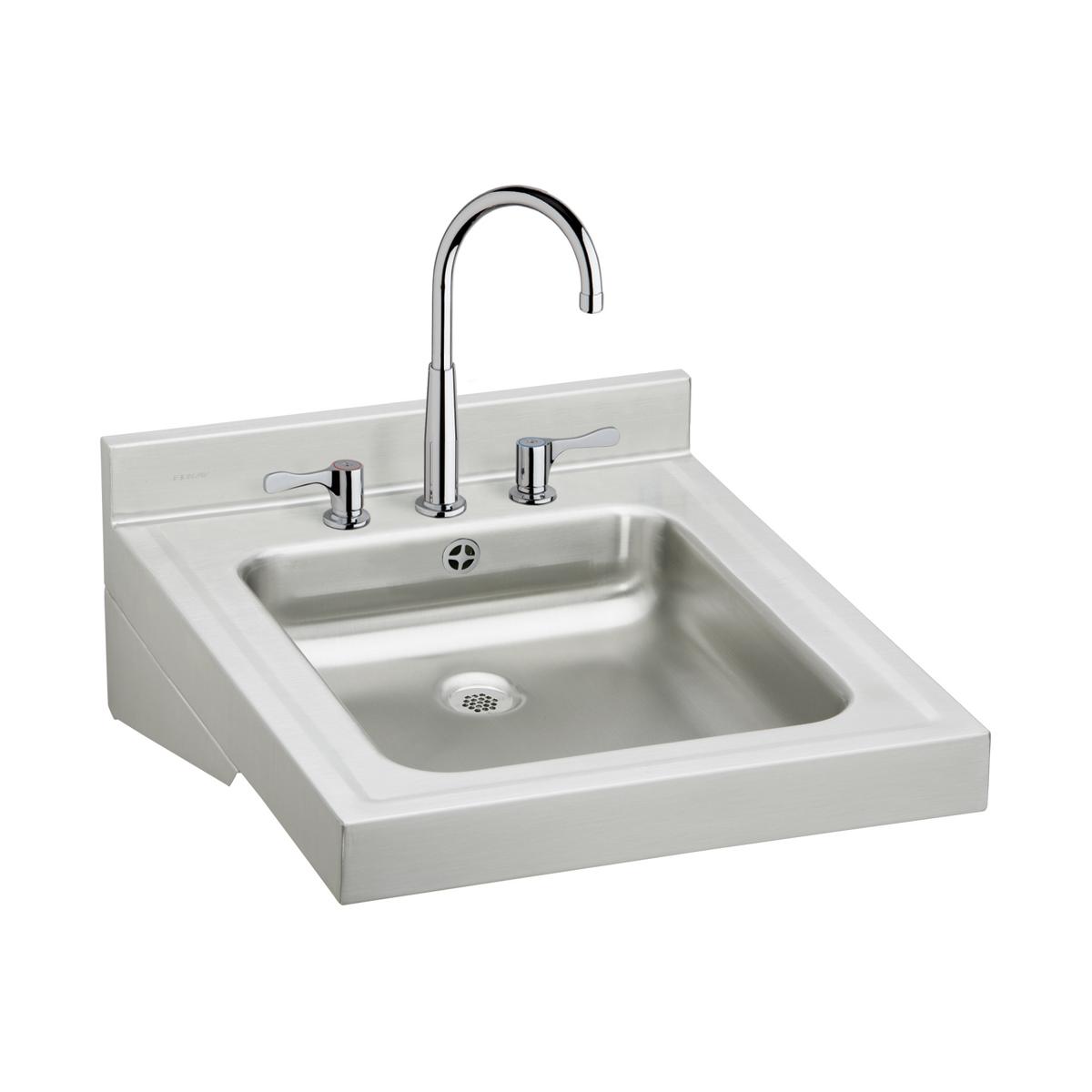

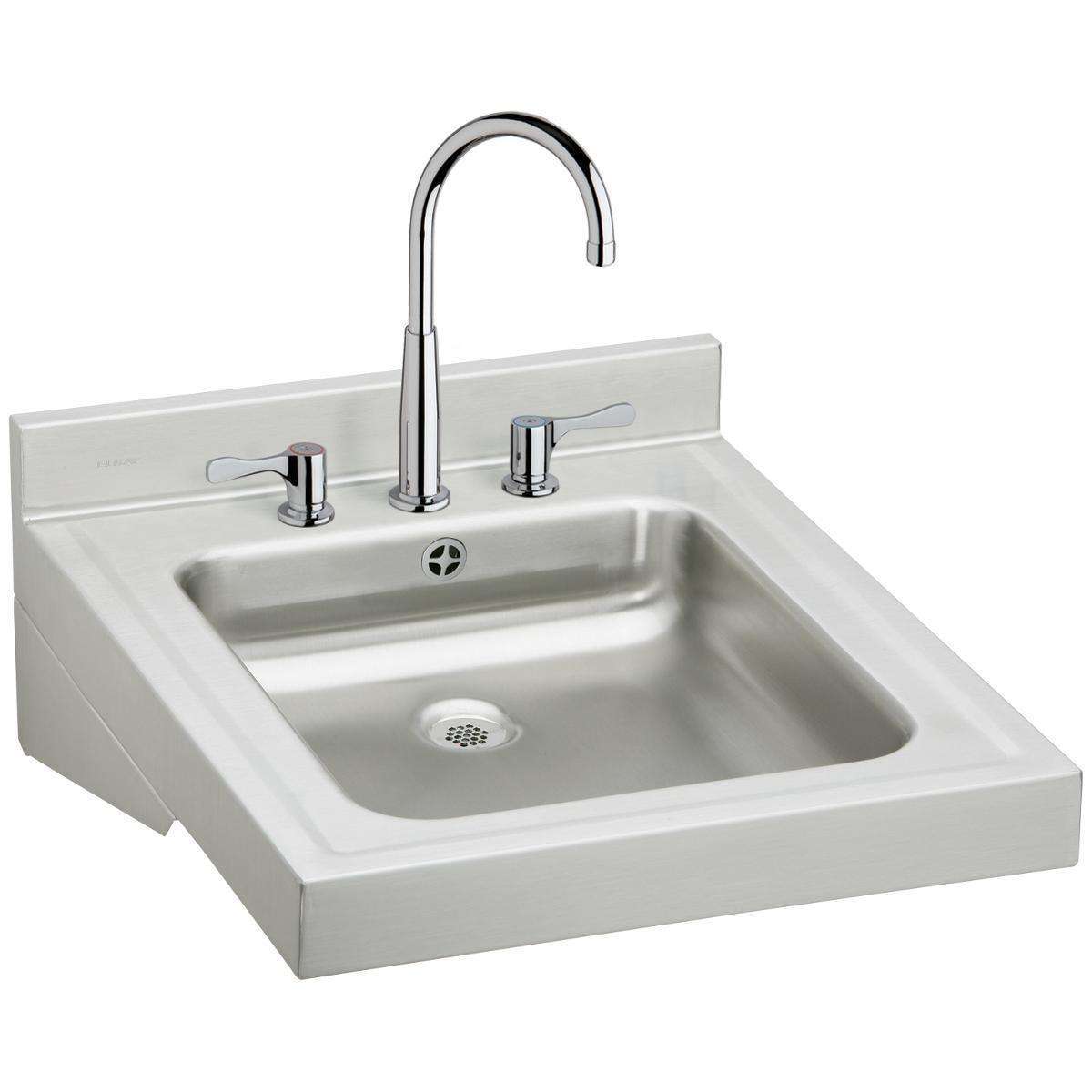

The Elkay WCLWO1923OSDC is a Sturdibilt Stainless Steel 19" x 23" x 4" Wall Hung Single Bowl Lavatory Sink Kit. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 18-gauge, Type 304 stainless steel.
- Uniform lustrous satin finish.
- 1-3/4" coved corners, 2½" apron, front and sides, and 2½" high backsplash.
- Wide top deck with raised rim.
- Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
- Drain placement provides more usable space on the bottom of the sink.
- 1-5/8" drain opening.
- Furnished with wall hanger and integral stainless steel support brackets.
- Product is ADA compliant when properly installed.
- KIT INCLUDES: WCLWO1923 sink, one LKD232SBH5C faucet, one LKAD174 drain, LKF298 overflow assembly; save time having to purchase each piece separately.
Common Questions
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 3.
- What is included in the kit?
- This kit includes: WCLWO1923 sink, one LKD232SBH5C faucet, one LKAD174 drain, LKF298 overflow assembly.
Specifications
- Type: Sturdibilt Stainless Steel 19" x 23" x 4" Wall Hung Single Bowl Lavatory Sink Kit
- Outlet Size: 1-1/2"
- Body Material: Stainless Steel
- MPN: WCLWO1923OSDC
- Certifications: NSF-2, ADA
- Number of Bowls: 1
- Bowl Dimensions: 16" x 13-1/2" x 4"
- Drain Location: Rear Center
- Gauge: 18
- Sound Deadening: Bottom only pads
- Template Included: No
- Mount Type: Wall-Mount
- Coating / Finish: Lustrous Satin
- Faucet Holes: 3
- Overall Length (in): 19.0
- Overall Width (in): 23.0
- Overall Height (in): 9.0
- Kit Includes: WCLWO1923 sink, one LKD232SBH5C faucet, one LKAD174 drain, LKF298 overflow assembly

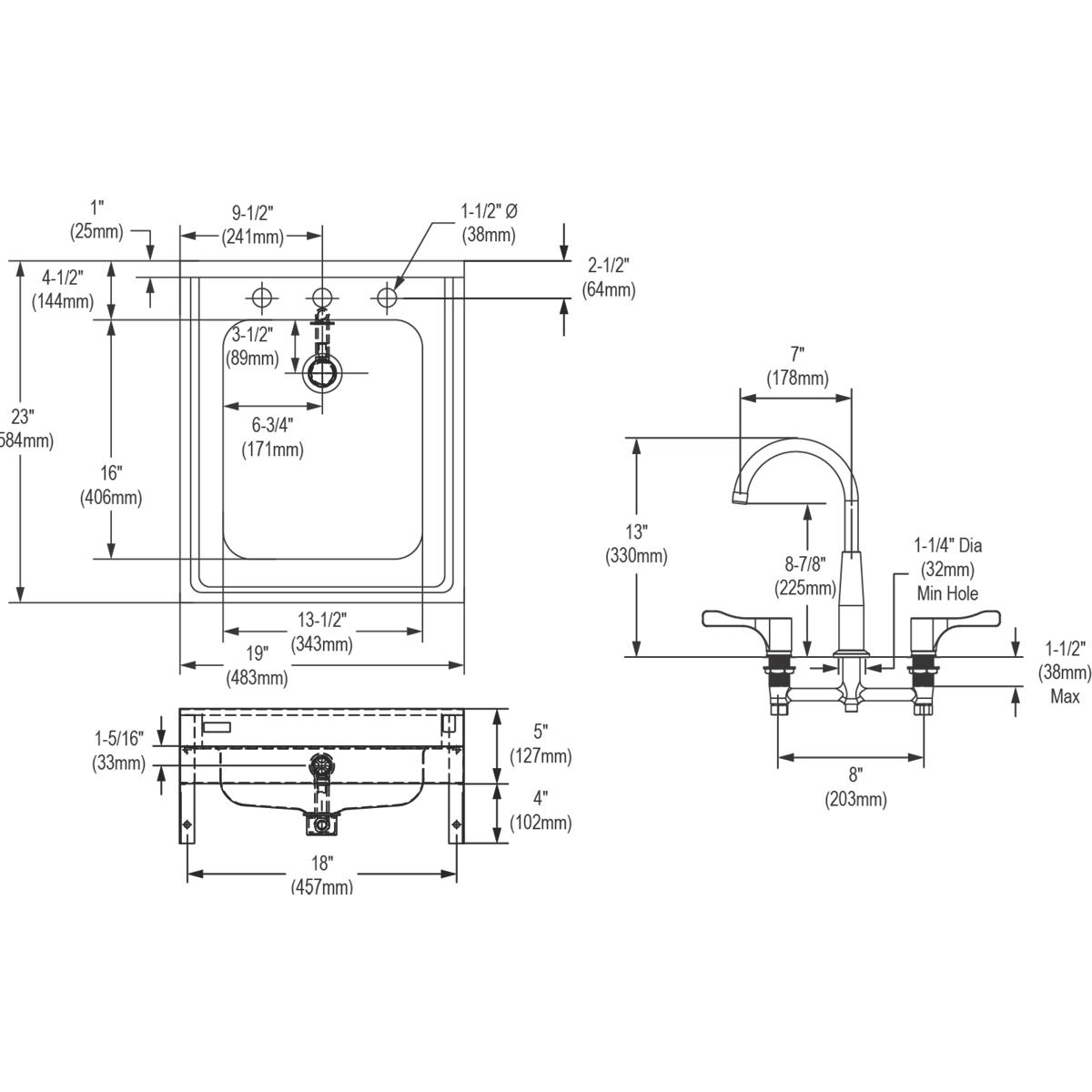

Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | WCLWO1923OSDC | Device Type | Sturdibilt Stainless Steel 19" x 23" x 4" Wall Hung Single Bowl Lavatory Sink Kit |
| Body Material | Stainless Steel | Contents | WCLWO1923 sink, one LKD232SBH5C faucet, one LKAD174 drain, LKF298 overflow assembly |
| Baa | USA | Coating | Lustrous Satin |
| Hole count | 3 | Mount type | Wall-Mount |
| Overall height in | 9.0 in | Overall length in | 19.0 in |
| Overall width in | 23.0 in | Bowl count | 1 |
| Bowl dimensions | 16" x 13-1/2" x 4" | Drain location | Rear Center |
| Gauge | 18 | Sound deadening | Bottom only pads |
Certifications & Standards
| NSF-2 | ADA |
