Description

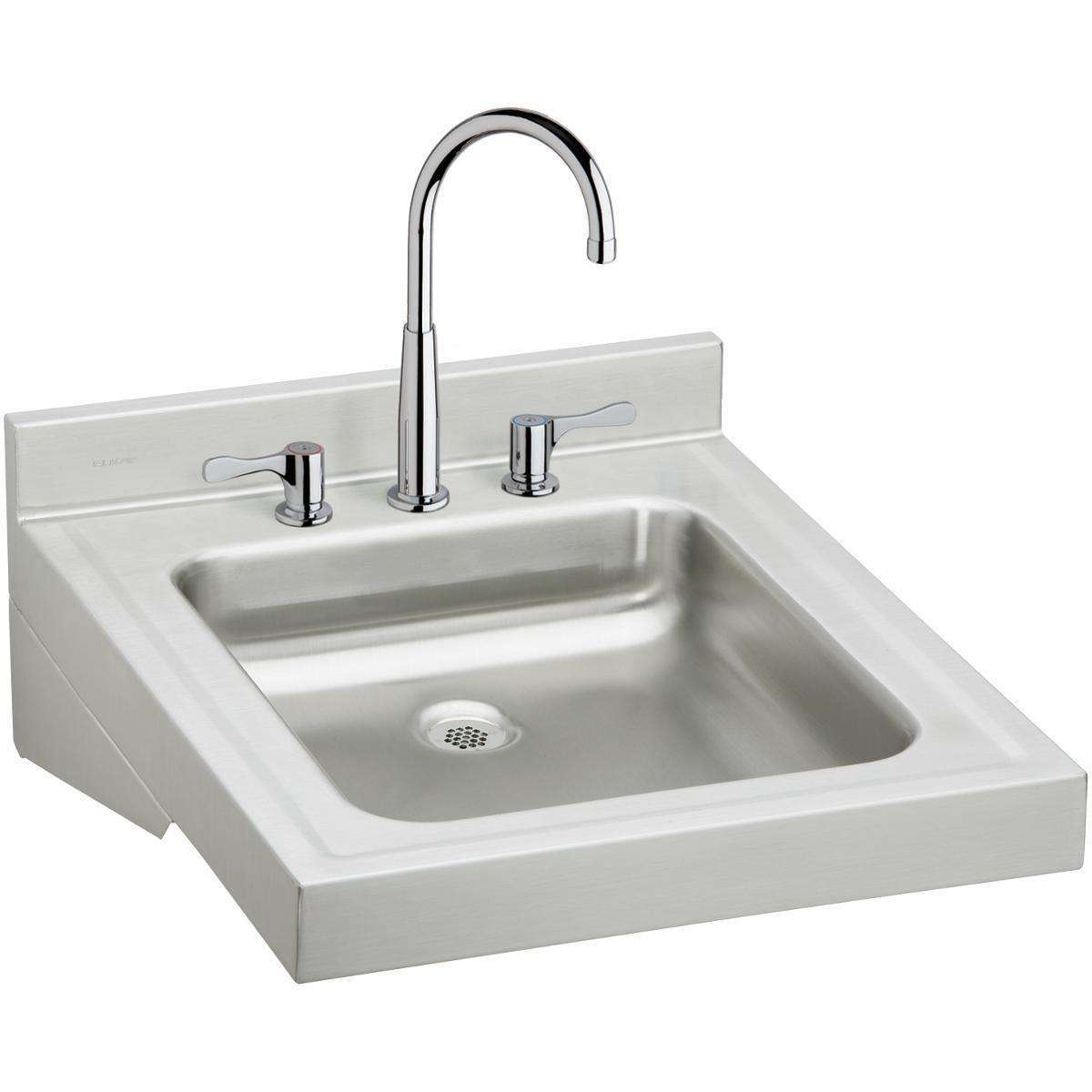

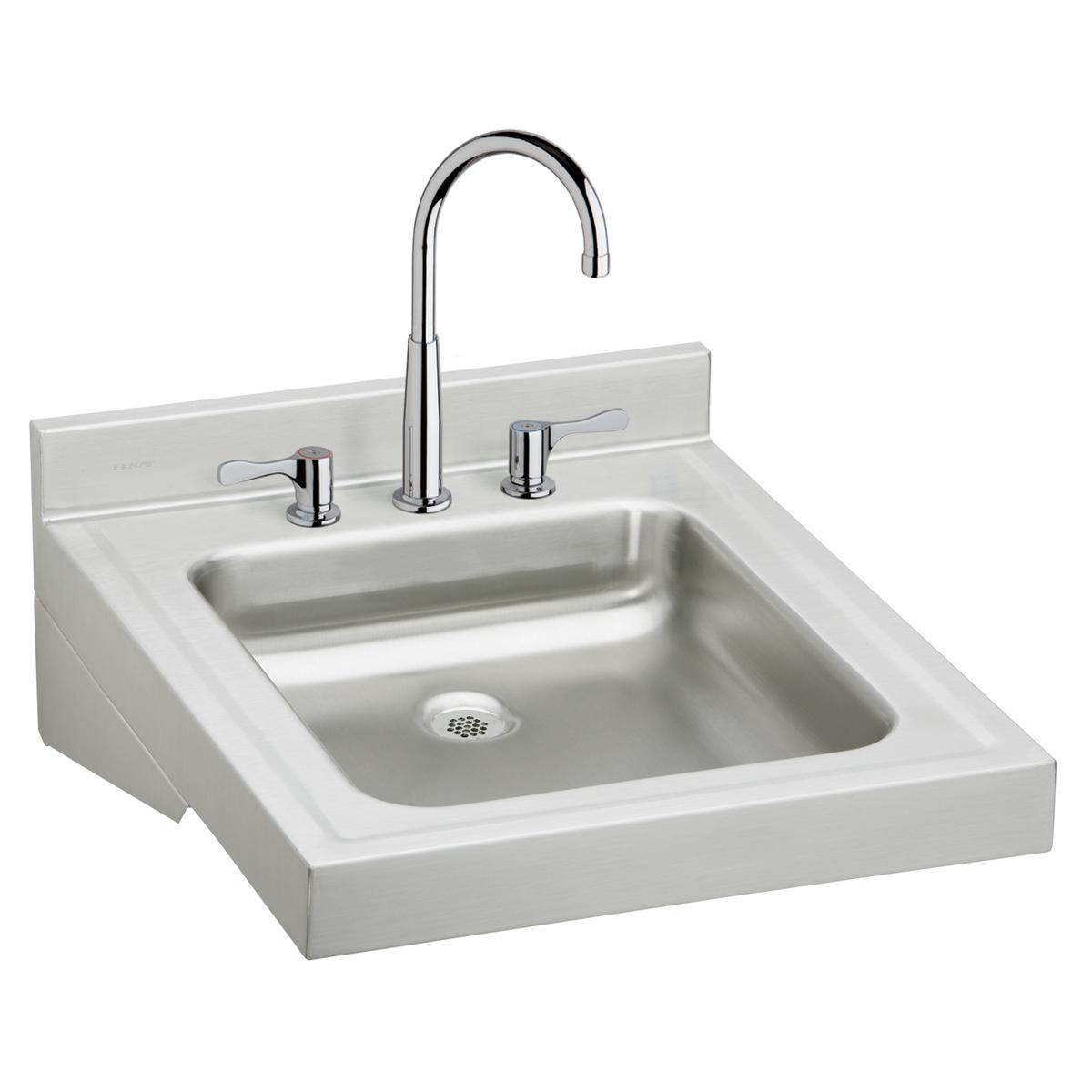

The Elkay WCL1923OSDC is a Sturdibilt Stainless Steel 19" x 23" x 4" Wall Hung Single Bowl Lavatory Sink Kit. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 18-gauge, Type 304 stainless steel.
- Uniform lustrous satin finish.
- 1-3/4" coved corners, 2½" apron, front and sides, and 2½" high backsplash.
- Wide top deck with raised rim.
- Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
- Drain placement provides more usable space on the bottom of the sink.
- 1-5/8" drain opening.
- Furnished with wall hanger and integral stainless steel support brackets.
- Product is ADA compliant when properly installed.
- KIT INCLUDES: WLC1923 sink, one LKD232SBH5C faucet, one LKAD174LO drain; save time having to purchase each piece separately.
Common Questions
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 3.
- What is included in the kit?
- This kit includes: WLC1923 sink, one LKD232SBH5C faucet, one LKAD174LO drain.
Specifications

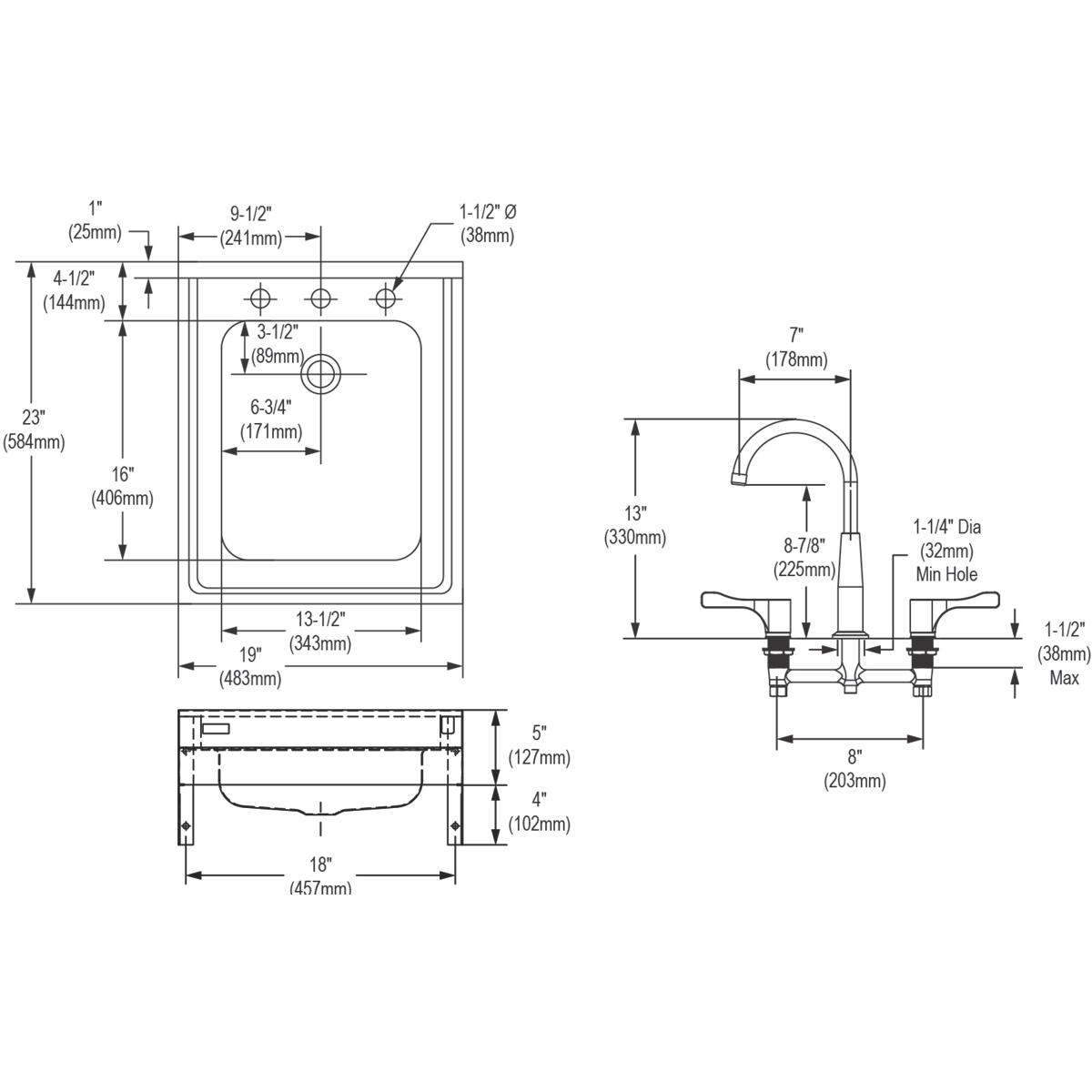

- Type: Sturdibilt Stainless Steel 19" x 23" x 4" Wall Hung Single Bowl Lavatory Sink Kit
- Outlet Size: 1-1/2"
- Body Material: Stainless Steel
- MPN: WCL1923OSDC
- Certifications: NSF-2, ADA
- Number of Bowls: 1
- Bowl Dimensions: 16" x 13-1/2" x 4"
- Drain Location: Rear Center
- Gauge: 18
- Sound Deadening: Bottom only pads
- Template Included: No
- Mount Type: Wall-Mount
- Coating / Finish: Lustrous Satin
- Faucet Holes: 3
- Overall Length (in): 19.0
- Overall Width (in): 23.0
- Overall Height (in): 9.0
- Kit Includes: WLC1923 sink, one LKD232SBH5C faucet, one LKAD174LO drain
Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | WCL1923OSDC | Device Type | Sturdibilt Stainless Steel 19" x 23" x 4" Wall Hung Single Bowl Lavatory Sink Kit |
| Body Material | Stainless Steel | Contents | WLC1923 sink, one LKD232SBH5C faucet, one LKAD174LO drain |
| Baa | USA | Coating | Lustrous Satin |
| Hole count | 3 | Mount type | Wall-Mount |
| Overall height in | 9.0 in | Overall length in | 19.0 in |
| Overall width in | 23.0 in | Bowl count | 1 |
| Bowl dimensions | 16" x 13-1/2" x 4" | Drain location | Rear Center |
| Gauge | 18 | Sound deadening | Bottom only pads |
Certifications & Standards
| NSF-2 | ADA |
Compare with similar products
| Contents | WLC1923 sink, one LKD232SBH5C faucet, one LKAD174LO drain
| CHSP1716 sink, LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK8 grid drain fitting, one LK500 P-trap
| CHSP1716 sink, one LK399A foot control, one LK395A spout, one LK8 grid drain fitting, and one LK500 P-trap
| CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve, one LK8 drain fitting, one LK500 P-trap
| CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK724 mechanical mixing valve, one LK8 drain fitting, one LK500 P-trap
| CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK8 drain fitting, one LK500 P-trap
|
| Series | WCL1923OSDC
| CHSP1716SACC
| CHSP1716LRSC
| CHS1716SACTMC
| CHS1716SACMC
| CHS1716SACC
|
| Country Of Origin | — | — | — | United States
| China
| — |
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Sturdibilt Stainless Steel 19" x 23" x 4" Wall Hung Single Bowl Lavatory Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
|
| Outlet Size | 1-1/2"
| 1-1/2"
| 1-1/2"
| 2"
| 2"
| 2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | NSF-2, ADA
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
|
