Description

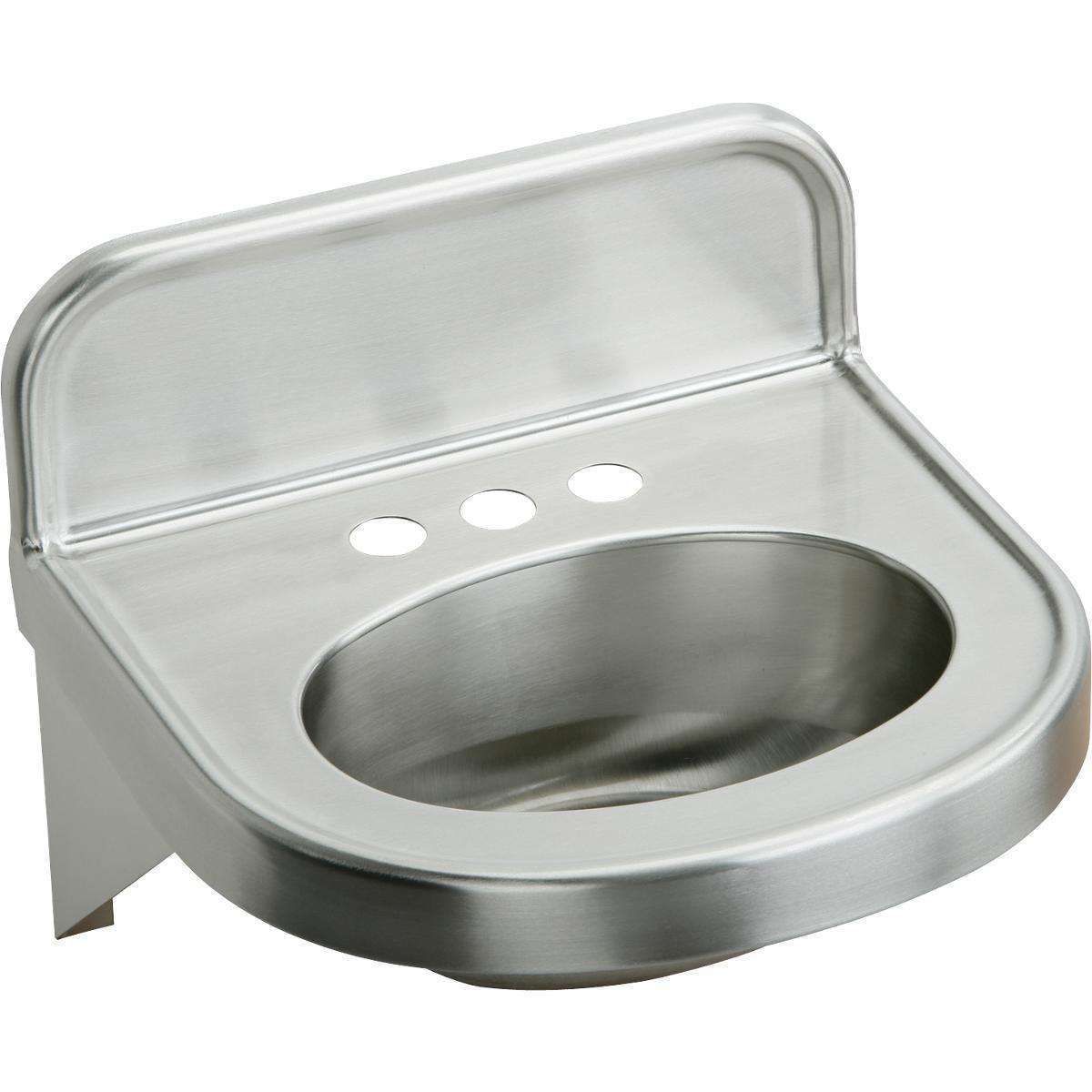

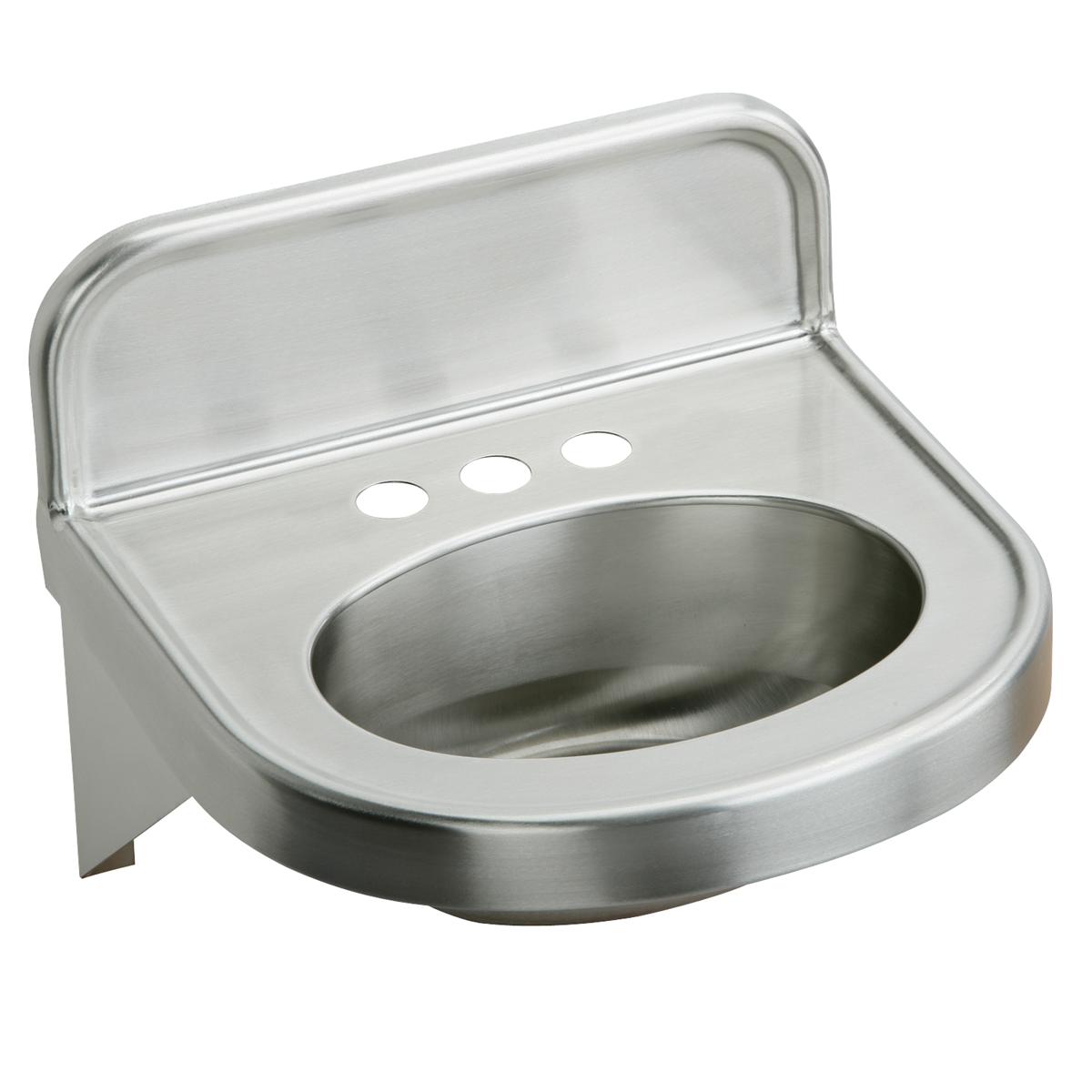

The Elkay ELV1817CS3 is a Stainless Steel 18" x 17-1/16" x 5-9/16" Wall Hung Lavatory Sink. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 18-gauge, Type 304 stainless steel.
- Anti-splash rim.
- 5-1/2" high backsplash.
- 2" wide apron.
- Exposed surfaces blended by hand to a uniform lustrous satin finish.
- Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
- 1-5/8" drain opening.
- Furnished with stainless steel wall support brackets.
- Product is ADA compliant when properly installed.
Common Questions
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: CS3.
Specifications
- Type: Stainless Steel 18" x 17-1/16" x 5-9/16" Wall Hung Lavatory Sink
- Outlet Size: 1-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: ELV1817CS3
- Certifications: NSF-2, ADA
- Number of Bowls: 1
- Bowl Dimensions: 13-5/8" x 10-1/8" x 5-13/16"
- Drain Location: Rear Center
- Gauge: 18
- Mount Type: Wall-Mount
- Coating / Finish: Buffed Satin
- Faucet Holes: CS3
- Overall Length (in): 18.0
- Overall Width (in): 17.0625
- Overall Height (in): 15.375
Product Information
| SKU | UPC | Country of Origin | Spec Sheet |
|---|---|---|---|
| ELV1817CS3 | 094902291857 | United States | Download |
Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | ELV1817 | Device Type | Stainless Steel 18" x 17-1/16" x 5-9/16" Wall Hung Lavatory Sink |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Buffed Satin | Hole count | CS3 |
| Mount type | Wall-Mount | Overall height in | 15.375 in |
| Overall length in | 18.0 in | Overall width in | 17.0625 in |
| Bowl count | 1 | Bowl dimensions | 13-5/8" x 10-1/8" x 5-13/16" |
| Drain location | Rear Center | Gauge | 18 |
Certifications & Standards
| NSF-2 | ADA |
