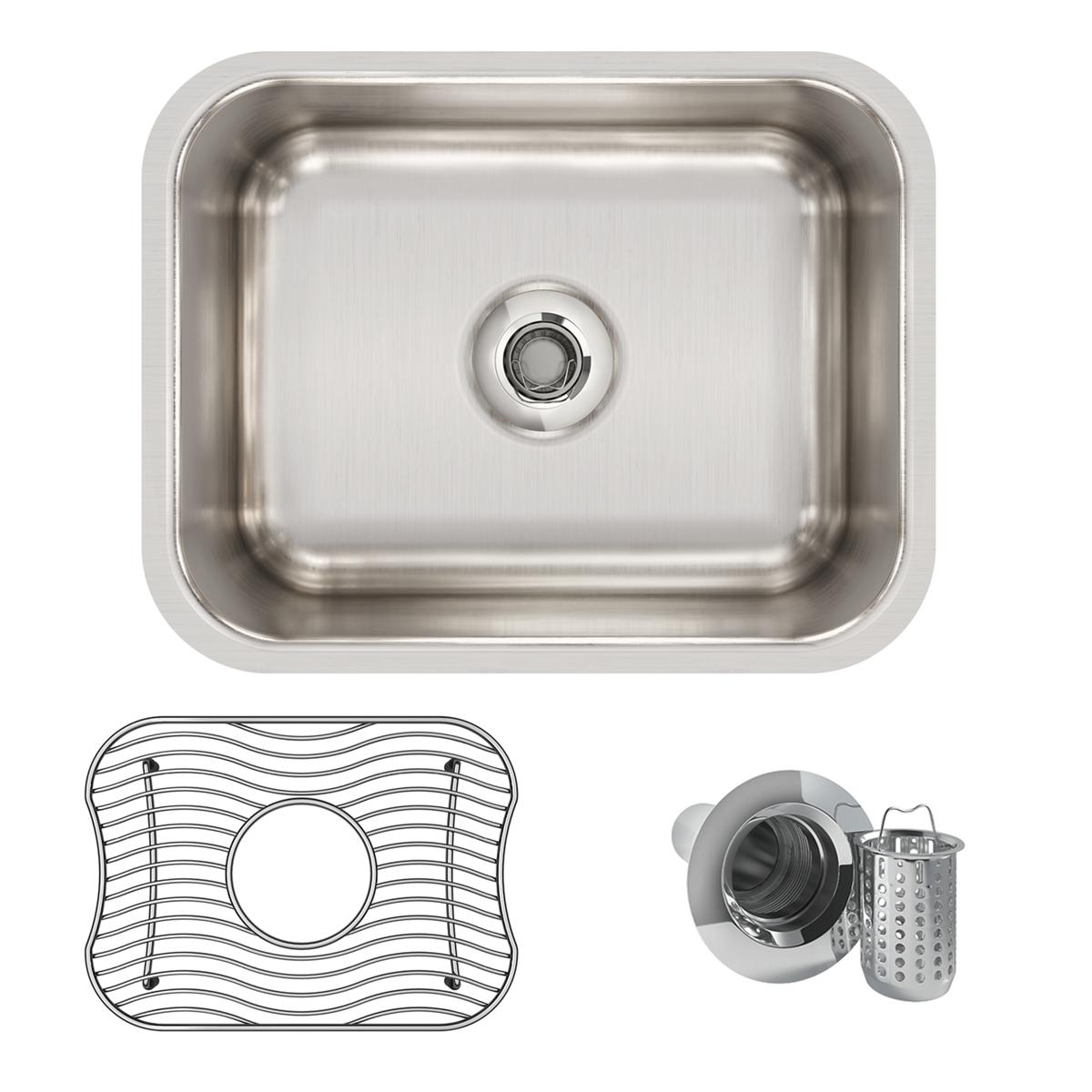

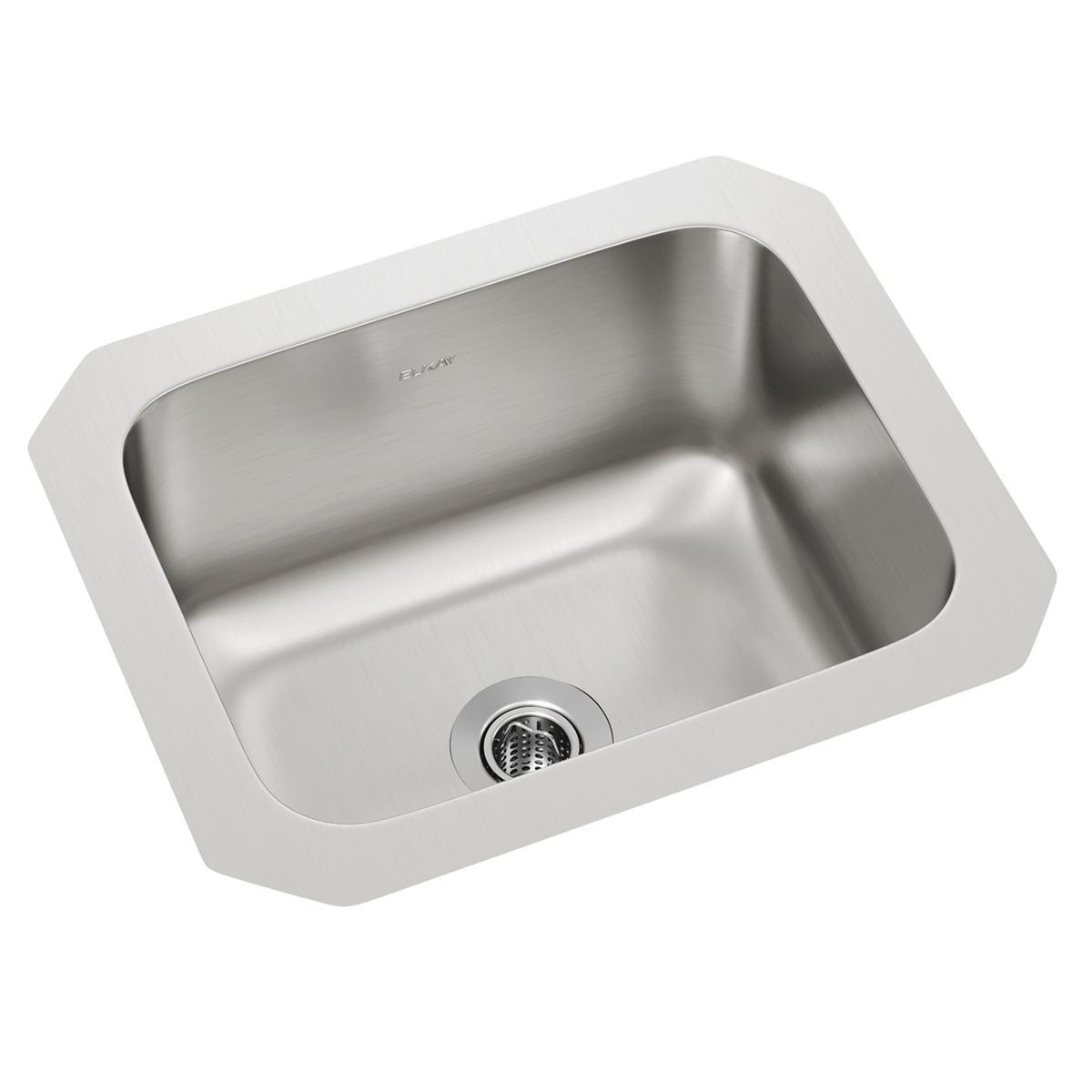

The Elkay ELUH129DBG is a Lustertone Classic Stainless Steel 14-1/2" x 11-3/4" x 7", Single Bowl Undermount Bar Sink Kit. It features a stainless steel body.
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Features
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.

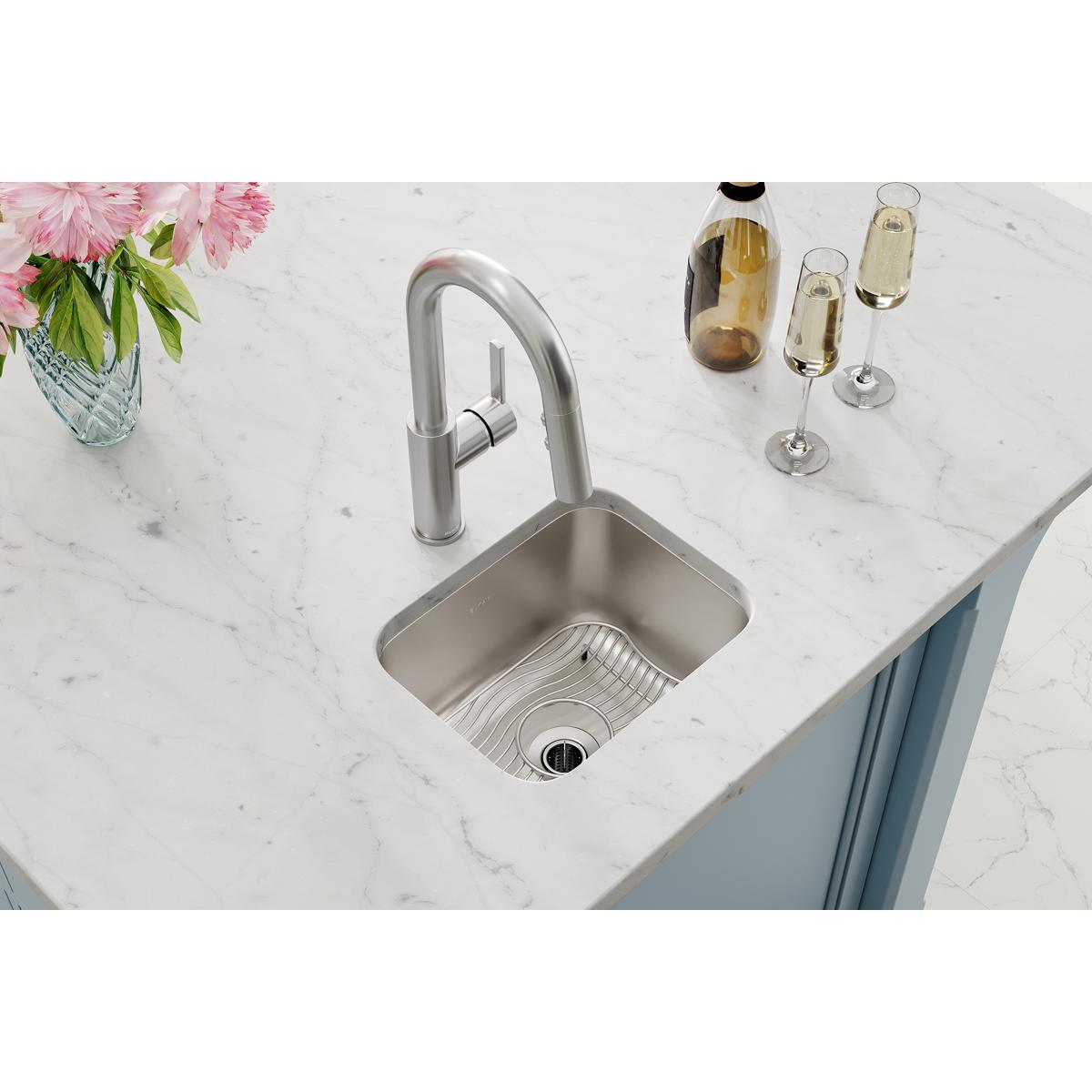

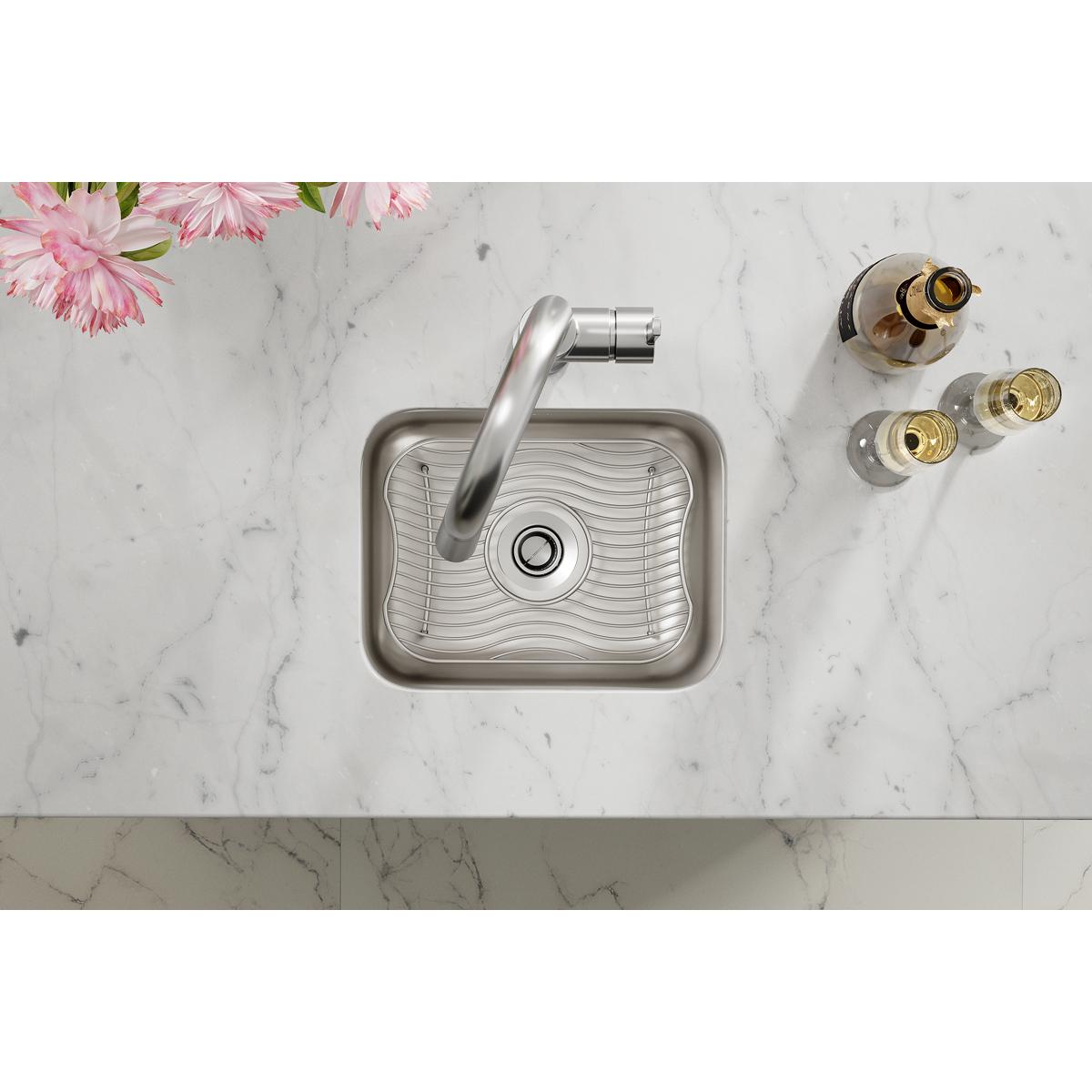

- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- DRAIN OPENING: Sink drain opening measures 2".
- CABINET SIZE: Minimum cabinet size for this sink is 18".

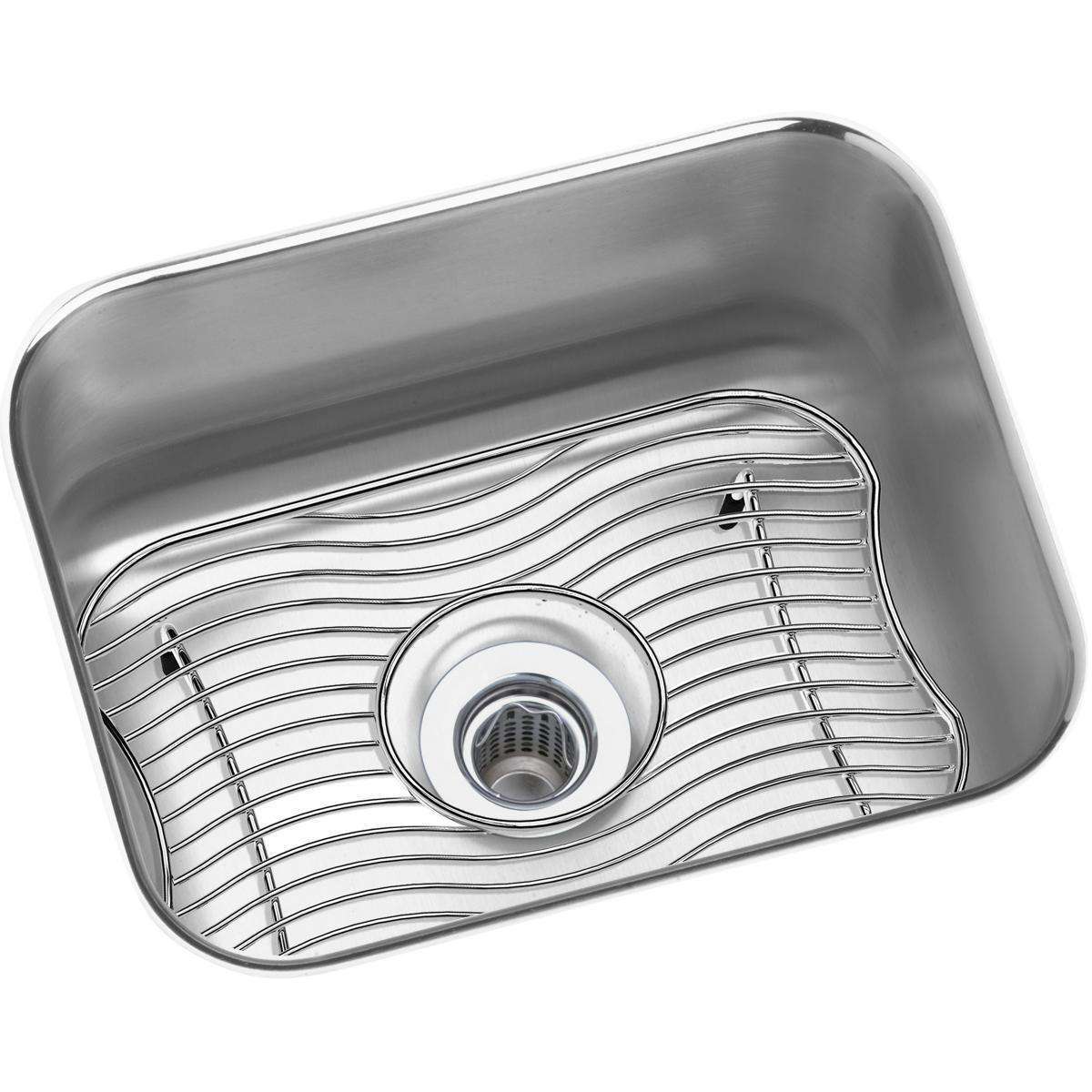

- KIT INCLUDES: ELUH129 sink, LKWBG1209SS bottom grid, LK36 drain; conveniently packaged together to save you time.
Common Questions
- What size cabinet does this need?
- A minimum 18" wide base cabinet.
- Undermount or drop-in?
- This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has sides and bottom pads for added quiet.
- What is included in the kit?
- This kit includes: LKWBG1209SS bottom grid, LK36 drain.
Specifications
- Type: Lustertone Classic Stainless Steel 14-1/2" x 11-3/4" x 7", Single Bowl Undermount Bar Sink Kit
- Outlet Size: 2"
- Body Material: Stainless Steel
- MPN: ELUH129DBG
- Certifications: ASME A112.19.3/CSA B45.4
- Number of Bowls: 1
- Minimum Cabinet Size (in): 18

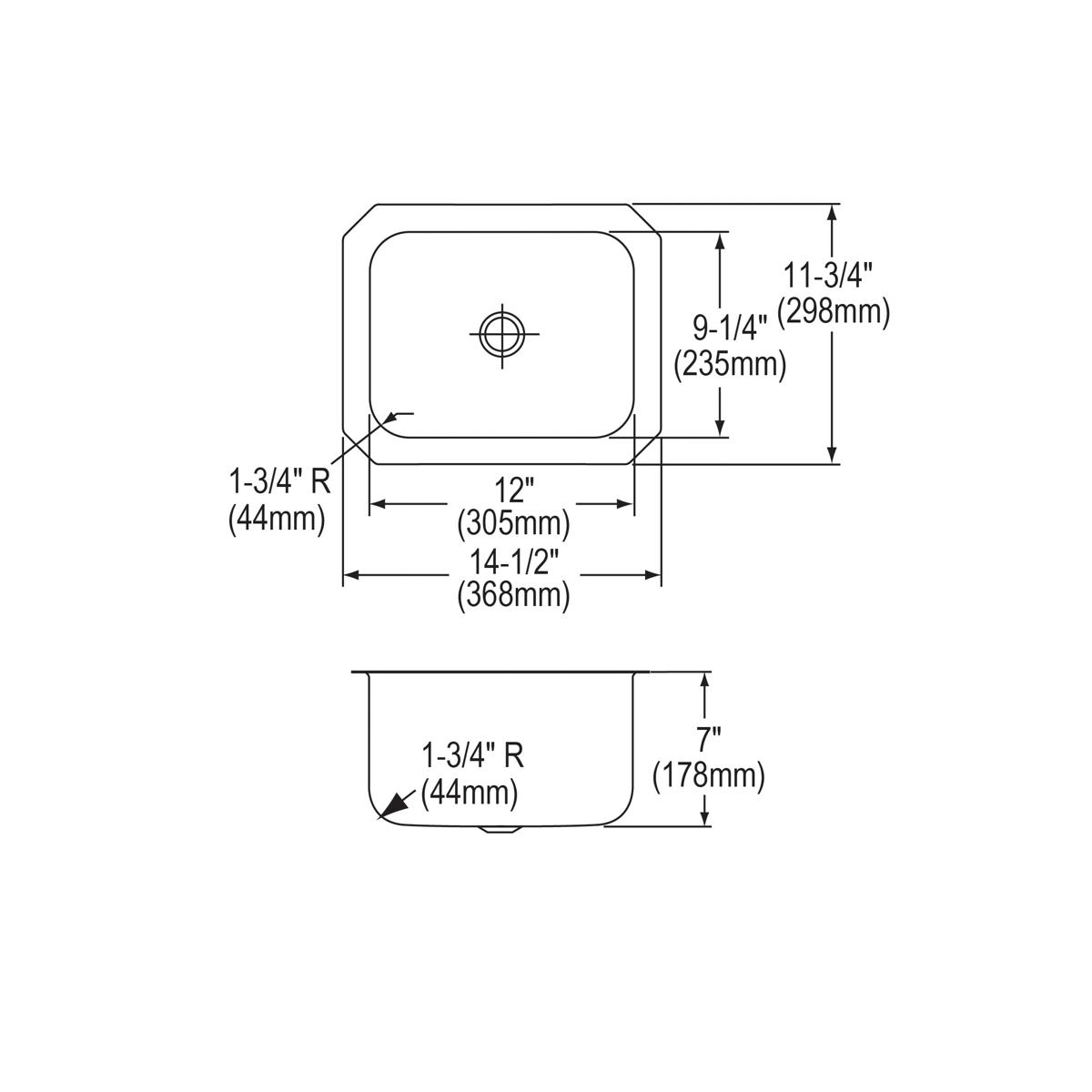

- Bowl Dimensions: 12" x 9-1/4" x 7"
- Drain Location: Center
- Gauge: 18
- Sound Deadening: Sides and Bottom pads
- Template Included: Yes
- Mounting Hardware: Undermount brackets sold separately
- Mount Type: Undermount
- Coating / Finish: Lustrous Satin
- Overall Length (in): 14.5
- Overall Width (in): 11.75
- Overall Height (in): 7.0
- Kit Includes: LKWBG1209SS bottom grid, LK36 drain
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001421.dxf
Dimensions
| Outlet Size | 2" | — | — |
Details
| Series | ELUH129DBG | Device Type | Lustertone Classic Stainless Steel 14-1/2" x 11-3/4" x 7", Single Bowl Undermount Bar Sink Kit |
| Body Material | Stainless Steel | Contents | LKWBG1209SS bottom grid, LK36 drain |
| Baa | USA | Coating | Lustrous Satin |
| Mount type | Undermount | Overall height in | 7.0 in |
| Overall length in | 14.5 in | Overall width in | 11.75 in |
| Bowl count | 1 | Bowl dimensions | 12" x 9-1/4" x 7" |
| Cutout template url | View | Drain location | Center |
| Gauge | 18 | Minimum cabinet size in | 18 |
| Mounting hardware | Undermount brackets sold separately | Sound deadening | Sides and Bottom pads |
| Template included | Yes | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | — |
